US 3 support A2

US 3 support A2

Type US 3 K 30 A2
|
Item no. 6342403
|
EAN 4012195705369
Show all variants
Item no. / Type
Length
Colour
stainless steel

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

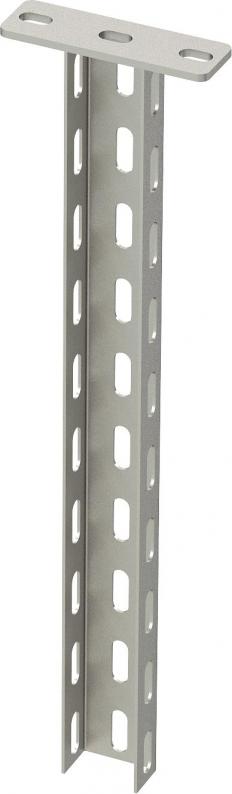

Suspended support (U profile) of dimensions 50 x 30 mm with welded head plate.


For fastening to horizontal concrete ceilings and steel girders. For bracket widths of 400 mm or more, or if the bracket is mounted at the end of a suspended support, we recommend the use of the spacer, type DSK 25.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • U support
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length300 mm
Width50 mm
Height30 mm

Technical data

Maintain electrical functionsno
Material thickness2 mm
Version forU profile
Maximum tensile load5 kN
Bracket length 2002,7 kN
Bracket length 4001,5 kN
Dimension50x30x300
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
CO2 Footprint (GWP) Cradle-to-Gate3,429 kg CO2e / 1 Piece
Load diagram, U support, type US 3 K

Bending of the end of the suspended support at permitted bracket load

Permitted bracket load in kN without man load

Bracket length in mm

Load curves with support lengths in mm
