Truss-head bolt with nut and washer A2
Type FRS 10x25 A2
|Item no. 6406718
|EAN 4012196200474
Item no. / Type
6406718 / FRS 10x25 A2
Surface
Bright, treated
Material
Stainless steel 1.4301
Smallest selling unit: 50 piece
50piece
piece
Description

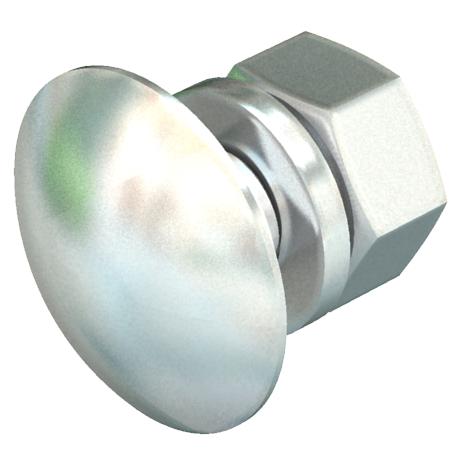

Truss-head bolt with square neck including hexagonal nut and washer.
Technical data
Dimensions
| Length | 25 mm |
|---|---|
| Dimension L | 25 mm |
| Dimension d | 10 mm |
| Dimension D | 24 mm |
Technical data
| Thread metric | 10 |
|---|---|
| Screw system | Miscellaneous |
| Thread type | Metric |
| Resistance grade | A2-70 |
| With washer | yes |
| With nut | yes |
| Self-locking | no |
| With flange | no |
| WAF | 17 |
| Full thread | yes |
| Dimension | M10x25 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| Left thread | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1917 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Length
Surface
Material
Item no.
FRS 10x25 A2
25
Bright, treated
Stainless steel 1.4301
6406718
FRS 10x25 A2
Item no.
6406718
Length
25
Surface
Bright, treated
Material
Stainless steel 1.4301
