U support connector A2

U support connector A2

Type VUS 3 A2
|
Item no. 6018517
|
EAN 4012195706007
Show all variants
Item no. / Type
6018517 / VUS 3 A2

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

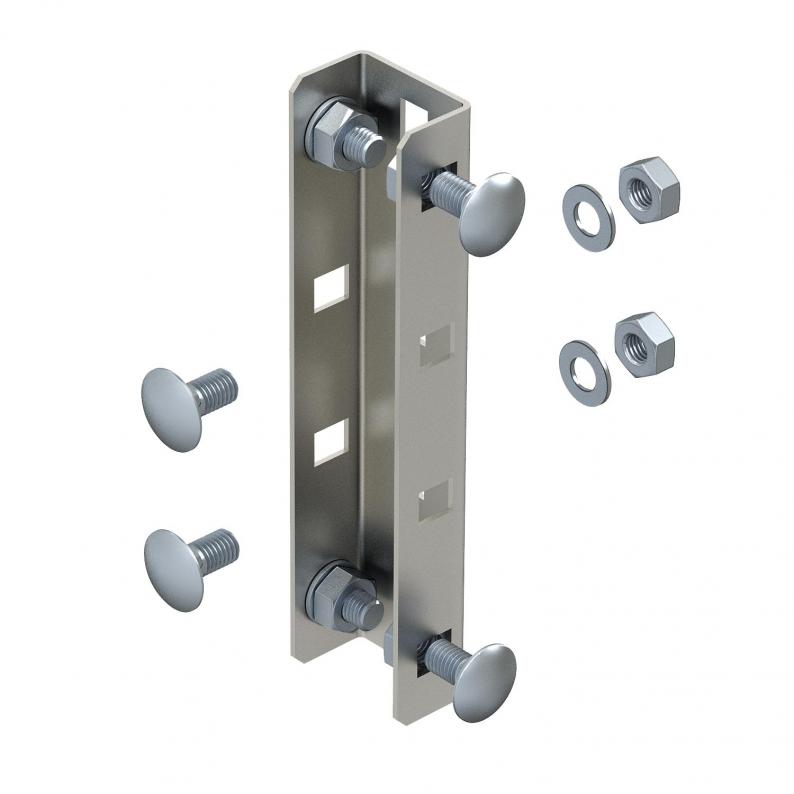

U support connector to connect US 3 supports.

Including appropriate fastening material.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • U support
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length190 mm
Width45 mm
Height27,5 mm

Technical data

Rustproof steel, pickledno
Drill hole spacing, centre50 mm
With screw accessoriesyes
Dimension27,5 x 45 x 190
Suitable for profile shapesU profile
Dimension190x45
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
CO2 Footprint (GWP) Cradle-to-Gate2,8498 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (2)
Product images (2)
Tender specifications (2)

Variants

VUS 3 A2
Item no.
6018517
