Trunking, type WDK 60150

Trunking, type WDK 60150

Type WDK60150CW
|
Item no. 6021883
|
EAN 4012196637577
Show all variants
Item no. / Type
6021883 / WDK60150CW
Length
2000 mm
Width
150 mm
Height
60 mm
Colour
Cream; RAL 9001

Smallest selling unit: 8 m

m

Description

Trunking cover and base with base perforation.
Four cover fixing devices included.
Lid clamp can be moved along the entire length of the trunking.
Device installation is possible with the accessory mounting box, type 2390.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • WDK trunking, trunking depth 60 mm
  • gas-/battery-actuated setting tool
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

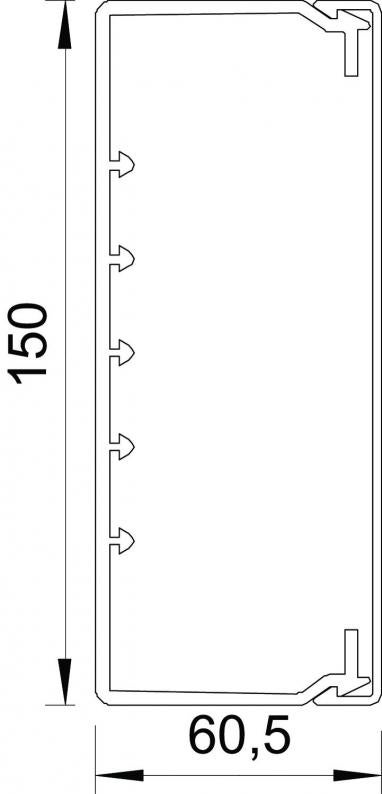

Dimensions

Length2000 mm
Width150 mm
Height60 mm

Technical data

Maintain electrical functionsno
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)40
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)31
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)33
Usable cross-section7002 mm²
Halogen-freeno
Number of fixed partitions0
Number of insertable partitions2
Cable retaining clipyes
Protective filmno
Duct connectorno
Protection ratingIP30
Delivery on a rollno
Protection rating IK codeIK04
Fastening typeBase perforation
Version, cable trunking coverLoose
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension60x150x2000
MaterialPolyvinylchloride
ColourCream; RAL 9001
Antibacterial treatmentno

Environmental Data

3,8791 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate3,8791 kg CO2e / 1 Meter

Accessories

System accessories
Type
WDK HE60150CW

Smallest selling unit: 10 piece

piece

Type
WDK HI60150CW

Smallest selling unit: 2 piece

piece

Type
WDK HA60150CW

Smallest selling unit: 2 piece

piece
