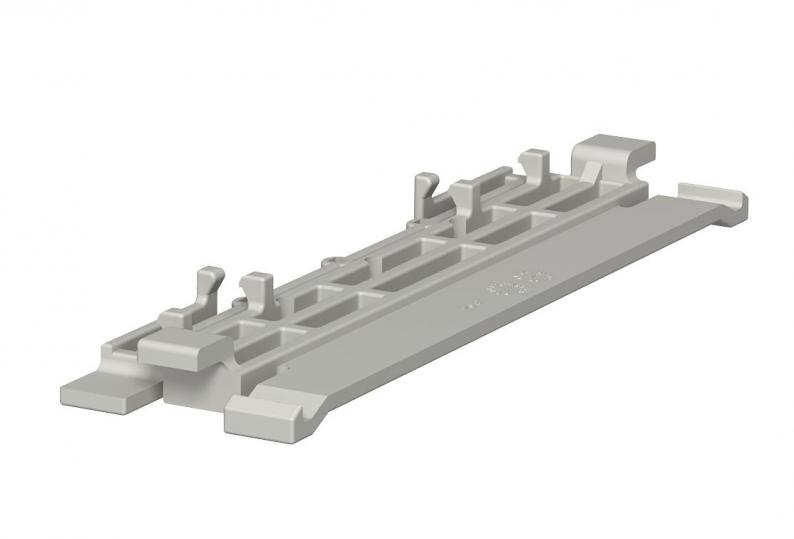

Cover clip for WDK trunking, trunking width 150 mm
Type 2370 150
|Item no. 6023533
|EAN 4012196637874
Item no. / Type
6023533 / 2370 150
Smallest selling unit: 20 piece
20piece
piece
Description
Cover clip for better and easier laying of lines in the WDK trunking.
The cover clip is locked on one side and moved forward. This provides a 30° opening, meaning that cable routing is very simple.
From trunking widths of 110 mm, the cover clips can also be used as a mounting aid.
The cover clip is locked on one side and moved forward. This provides a 30° opening, meaning that cable routing is very simple.
From trunking widths of 110 mm, the cover clips can also be used as a mounting aid.
The cover fixing device can be moved along the entire length of the trunking.
Technical data
Dimensions
| Length | 36 mm |
|---|---|
| Width | 136,2 mm |
| Dimension b | 36 mm |
| Dimension a | 136,2 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Halogen-free | no |
| Self-extinguishing | yes |
| Protection rating | IP30 |
| With equipotential bonding | no |
| Protection rating IK code | IK04 |
| Fastening type | Lockable |
| Cover width | 150 mm |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 150mm |
| Material | Polyvinylchloride |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0867 kg CO2e / 1 Piece |
