End piece, trunking type WDK 60150
Type WDK HE60150CW
|Item no. 6162878
|EAN 4012196637997
Item no. / Type
6162878 / WDK HE60150CW
Colour
Cream; RAL 9001
Smallest selling unit: 10 piece
10piece
piece
Description

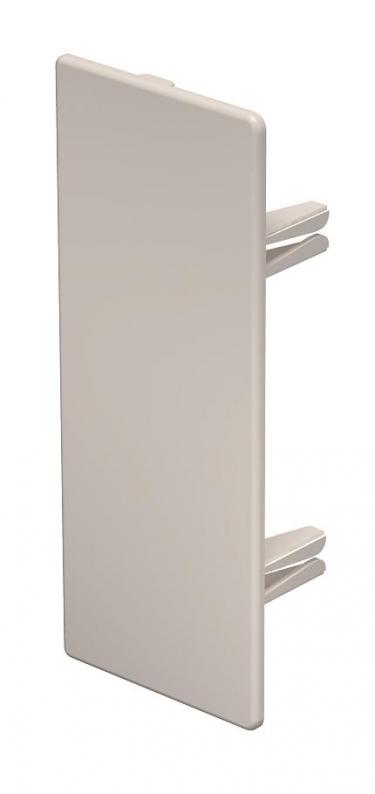

End piece to close the WDK trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.
The end pieces are pushed onto the trunking and kept in place by the spring action.
Technical data
Dimensions
| Length | 27,5 mm |
|---|---|
| Width | 150 mm |
| Height | 60 mm |

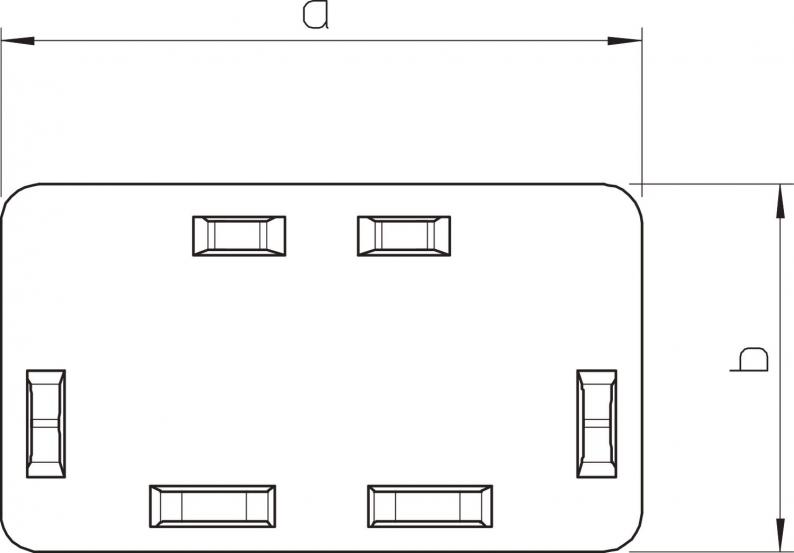

| Dimension H | 150 mm |
| Dimension b | 60 mm |
| Dimension a | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Halogen-free | no |
| Protective film | no |
| Protection rating | IP30 |
| Protection rating IK code | IK04 |
| Version for | Left/right |
| Fastening type | Lockable |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 60x150mm |
| Material | Polyvinylchloride |
| Colour | Cream; RAL 9001 |
| Antibacterial treatment | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1226 kg CO2e / 1 Piece |
