T branch piece 110 FS
Type RT 110 FS
|Item no. 7003633
|EAN 4012196820153
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

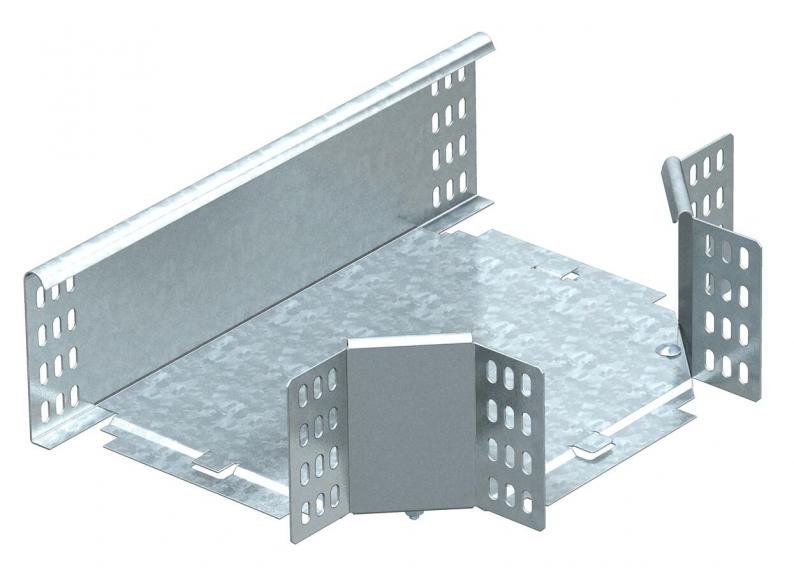

Horizontal T branch piece, for all cable tray types of 110 mm side height.
The fitting is shipped in an unmounted state. Including appropriate fastening material.
Technical data

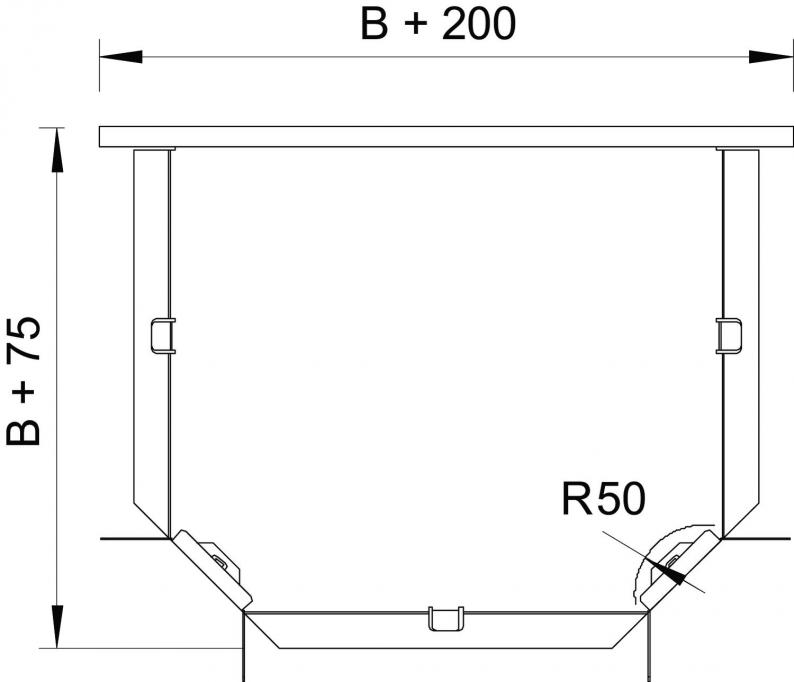

Dimensions
| Width | 100 mm |
|---|---|
| Height | 110 mm |
| Dimension B | 100 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Type | T piece horizontal |
| Rail thickness | 1,25 mm |
| Dimension | 110x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Type of connector, cable support system | Screwed |
