T piece 110 FS
Type RT 110 FS
|Item no. 6038300
|EAN 4012197347017
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 1 piece
1piece
piece
Description

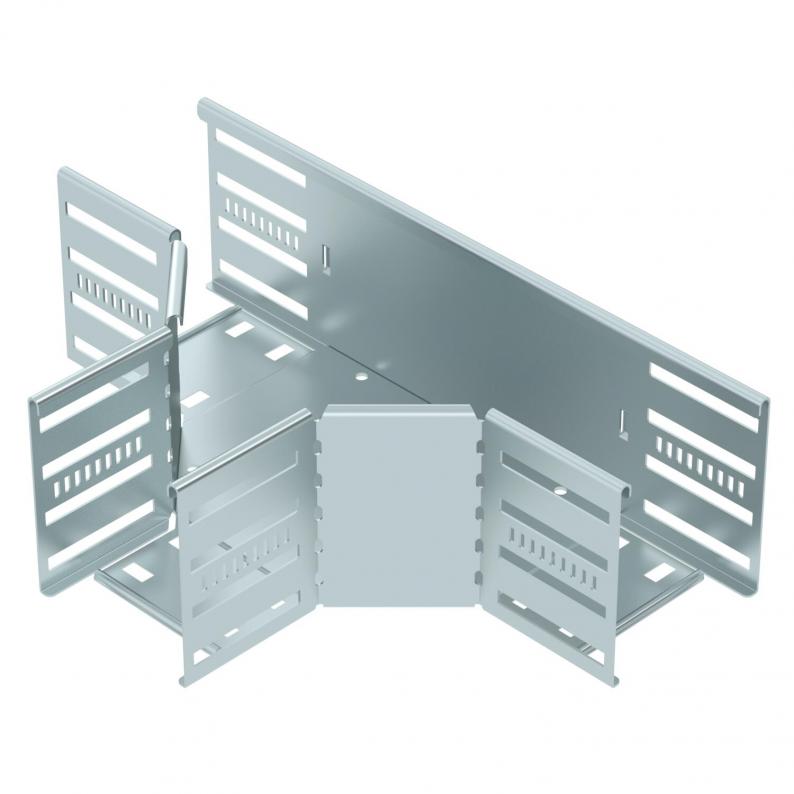

T piece for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 110 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
Technical data

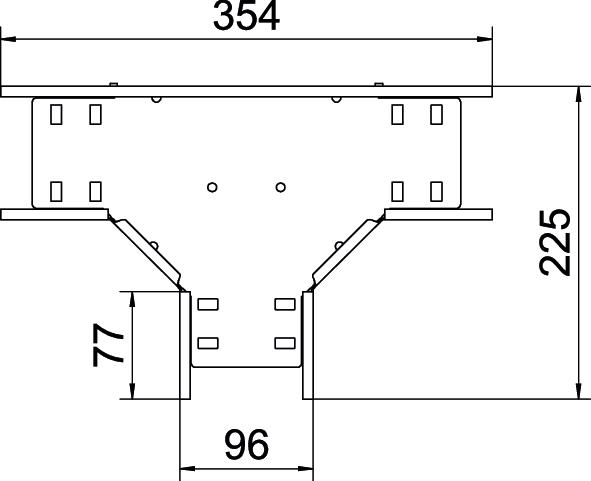

Dimensions
| Width | 100 mm |
|---|---|
| Height | 110 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 0,8 mm |
| NATO hole pattern | no |
| Width of the branch | 100 mm |
| Type | T piece horizontal |
| Rail thickness | 1,25 mm |
| Permitted temperature range, min. | -20 °C |
| Permitted temperature range, max. | 120 °C |
| Dimension | 110x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | screwed/clamped |
| Recommended quantity of bolts | 27 St. |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,7089 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Accessories
System accessories
Mounting accessories
Article
Type
Item no.
Amount
Variants
Type
Width
Surface
Material
Item no.
RT 110 FS
100
Strip galvanized
Steel
6038300
RT 120 FS
200
Strip galvanized
Steel
6038304
RT 130 FS
300
Strip galvanized
Steel
6038306
RT 140 FS
400
Strip galvanized
Steel
6038308
RT 150 FS
500
Strip galvanized
Steel
6038310
RT 160 FS
600
Strip galvanized
Steel
6038312
Width
RT 110 FS
Item no.
6038300
Width
100
Surface
Strip galvanized
Material
Steel
RT 120 FS
Item no.
6038304
Width
200
Surface
Strip galvanized
Material
Steel
RT 130 FS
Item no.
6038306
Width
300
Surface
Strip galvanized
Material
Steel
RT 140 FS
Item no.
6038308
Width
400
Surface
Strip galvanized
Material
Steel
RT 150 FS
Item no.
6038310
Width
500
Surface
Strip galvanized
Material
Steel
RT 160 FS
Item no.
6038312
Width
600
Surface
Strip galvanized
Material
Steel
