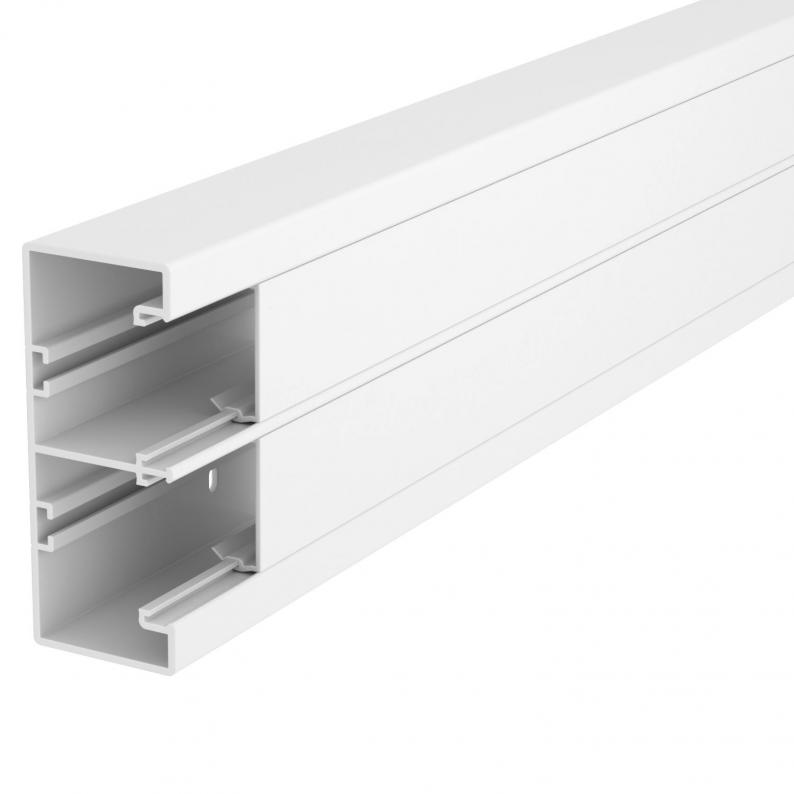

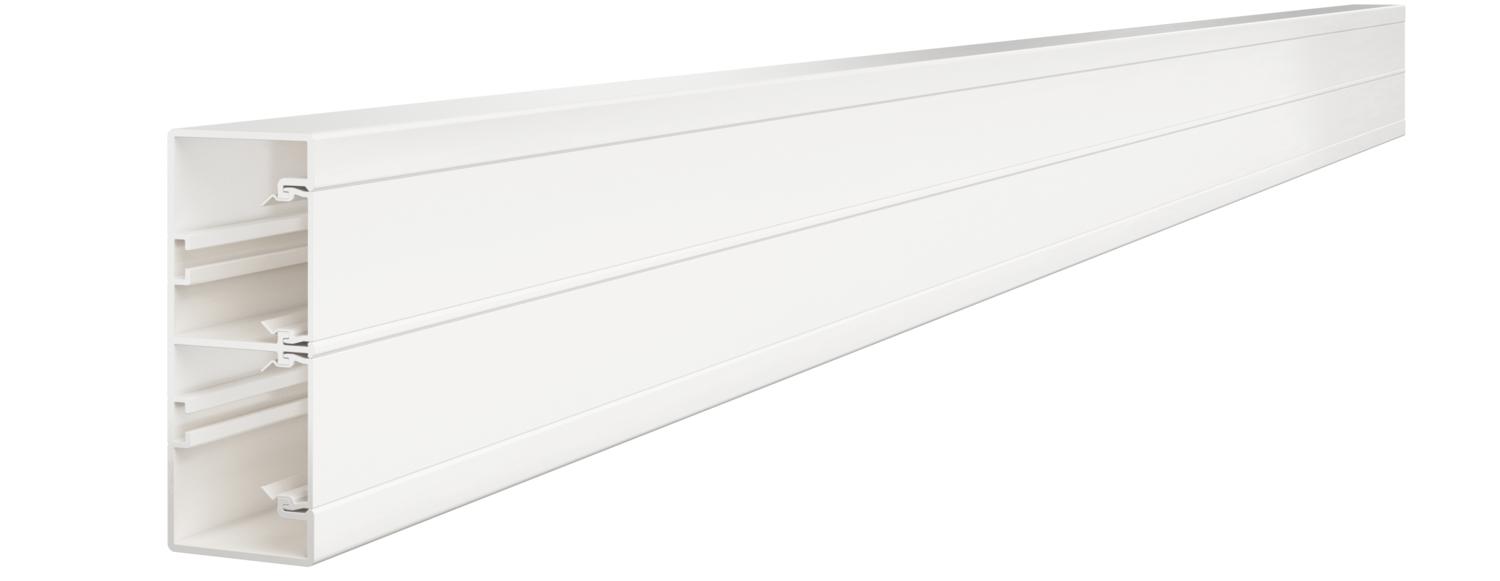

Device installation trunking Rapid 45-2, trunking width 130, trunking height 53
Type GK-53130RW
|Item no. 6113200
|EAN 4012196419388
Item no. / Type
Length
Colour
Smallest selling unit: 2 m
2m
m
Description
Trunking base and cover with base perforation for direct wall mounting.
Technical data

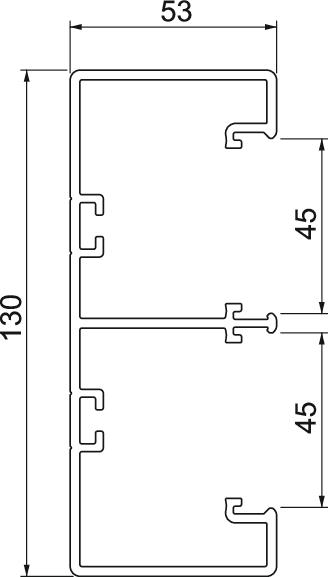

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 130 mm |
| Height | 53 mm |
Technical data
| Mounting perforation in base | yes |
|---|---|
| Usable cross-section | 5400 mm² |
| Halogen-free | no |
| Number of insertable partitions | 2 |
| Cable retaining clip | no |
| Protective film | yes |
| Duct connector | no |
| Protection rating | IP40 |
| Symmetrical | yes |
| Rectangular shape | yes |
| Number of covers | 2 |
| Cover width 2 | 45 mm |
| Cover width 3 | 0 mm |
| Rear panel version (inner side) | Continuous C profile |
| Cover mounting type | Internal |
| Protection rating IK code | IK08 |
| Cover supplied | yes |
| Base perforation | With base perforation |
| Cover width | 45 mm |
| Permitted temperature range, min. | -15 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 53x130x2000 |
| Material | Polyvinylchloride |
| Colour | Pure white; RAL 9010 |
| Antibacterial treatment | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,8299 kg CO2e / 1 Meter |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6113010
Cover, for device installation trunking Rapid 45-2Type
GK-OT45RW
Smallest selling unit: 2 m
2m
m
Variants
Type
Length
Colour
Item no.
GK-53130RW
2000
Pure white; RAL 9010
6113200
GK-53130LGR
2000
Light grey; RAL 7035
6113202
Colour
GK-53130RW
Item no.
6113200
Length
2000
Colour
Pure white; RAL 9010
GK-53130LGR
Item no.
6113202
Length
2000
Colour
Light grey; RAL 7035
