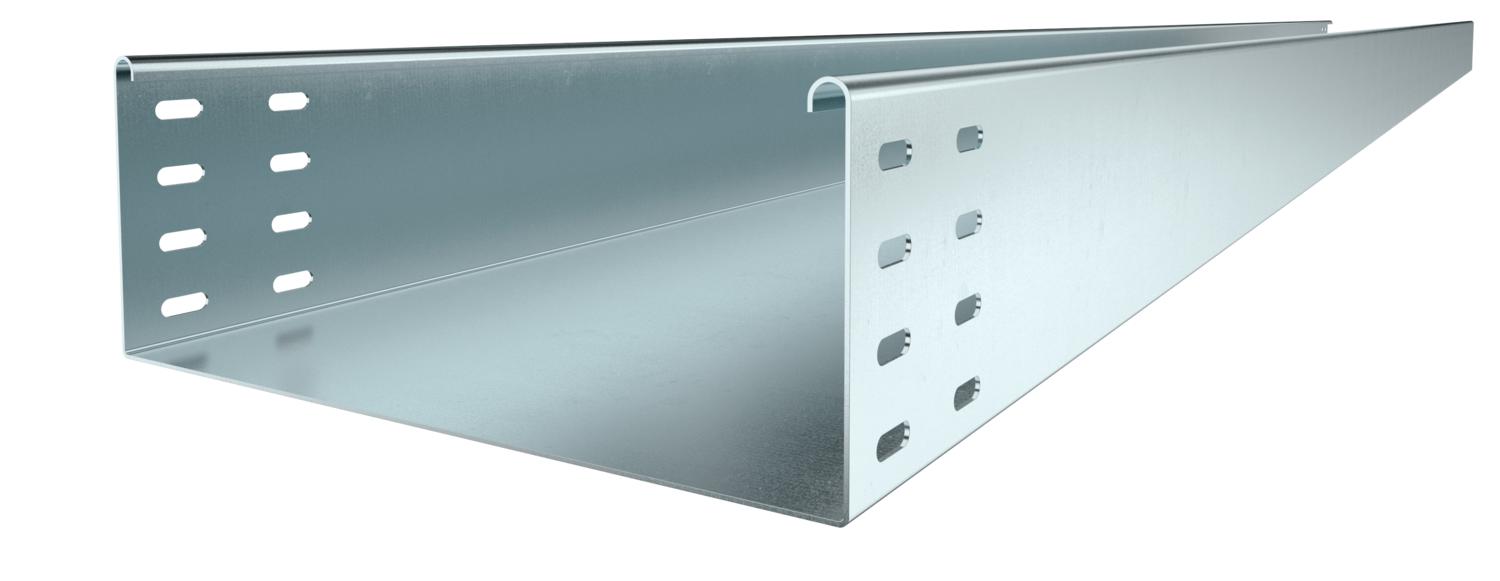

Cable tray SKSU 110 FS

Cable tray SKSU 110 FS

Type SKSU 110 FS
|
Item no. 6063403
|
EAN 4012196395231
Show all variants
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no
Surface
Strip galvanized
Material
Steel

Smallest selling unit: 3 m

m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

SKSU 110 = heavy-duty cable tray system, unperforated, with 110 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

The cable tray has connector perforations on both sides.

Straight connectors should be ordered separately and in the appropriate quantity.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

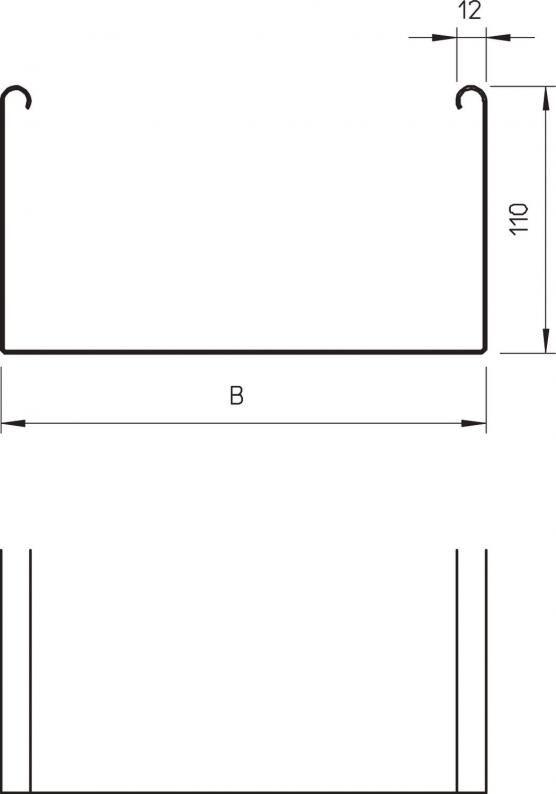

Dimensions

Length3000 mm
Width100 mm
Height110 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Usable cross-section108 cm²
Rustproof steel, pickledno
Plate thickness1,5 mm
Mounting perforation in baseno
NATO hole patternno
Usable cross-section10800 mm²
With coverno
Dimension110 x 100
Dimension110x100x3000
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Load test type according to IEC 61537Type II
Type of connector, cable support systemScrewed
CO2 Footprint (GWP) Cradle-to-Gate9,1124 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m2,4 kN/m
Support spacing 2.5 m1,76 kN/m
Support spacing 3.0 m1,2 kN/m
Support spacing 3.5 m0,84 kN/m
Support spacing 4.0 m0,8 kN/m
Support spacing 1.5 m3 kN/m

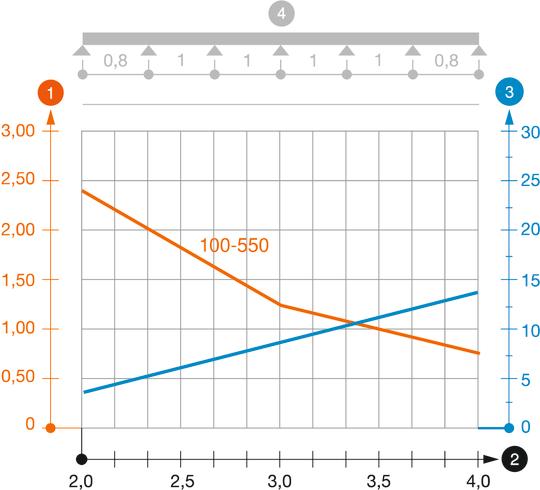

Load diagram, cable tray, type SKSU 110

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Declarations (5)
Instructions and Aid (4)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories
Type
RLVL 110 FS

Smallest selling unit: 10 piece

piece

Item no. 7070205

Joint plate FS
Type
SSLB 100 FS

Smallest selling unit: 20 piece

piece

Item no. 6036300

45° bend 110 FS
Type
RB 45 110 FS

Smallest selling unit: 1 piece

piece

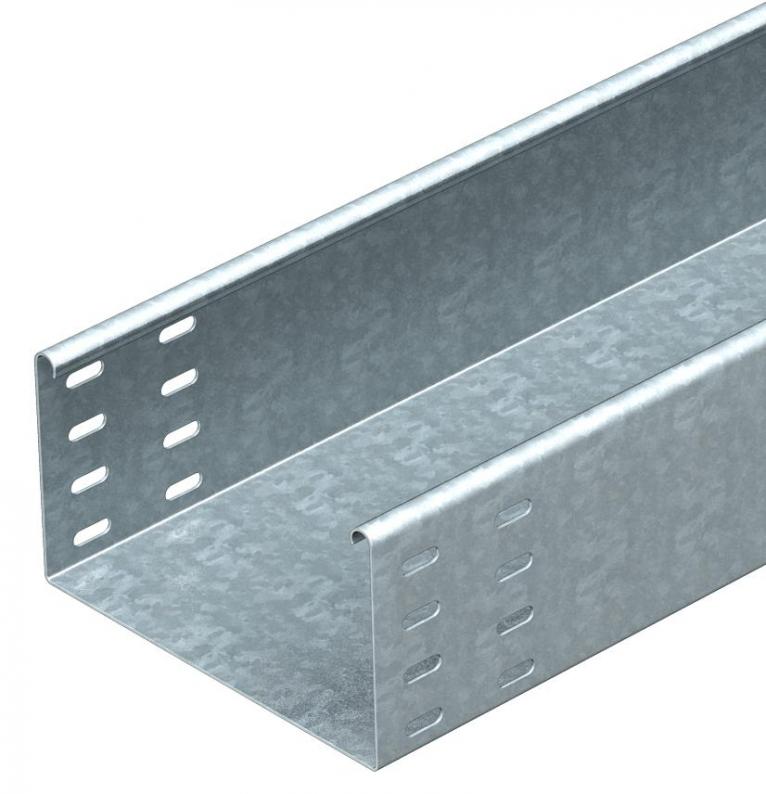

Variants
