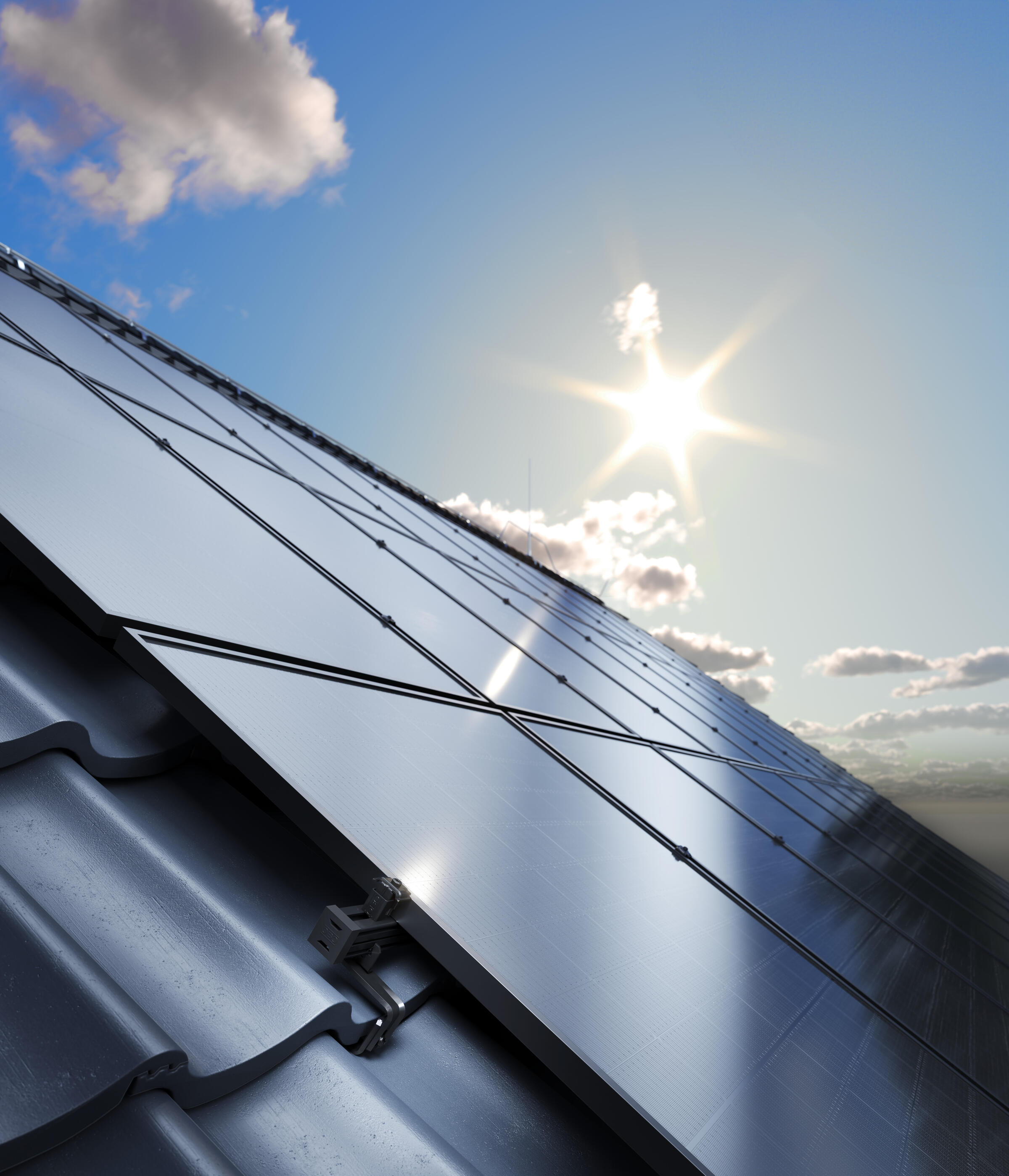

Magic PV Pitch with roof hook, universal

The KLU A2 S universal clamp is a versatile fastening solution for mounting a PV system on flat roofs and pitched roofs. Whether as an intermediate or end clamp – it is mounted by locking directly onto the TP 45 support profile or STK/STL supports, can be rotated through 90° and enables precise module mounting with Torx 30 screws. Optimal for frame heights from 30 to 50 mm, it offers efficiency, flexibility and system compatibility for modern PV installations.

• Can be used as an intermediate or end clamp for PV modules.
• Latchable pre-fastening to TP 45 profile or STK/STL supports.
• Can be rotated through 90° after engaging – for fast alignment.
• Screw connection with Torx 30 – reliable and easy to mount.
• Suitable for module frame heights from 30–50 mm, coated in black.

The EK45G end cap offers a secure and clean solution for connecting installation profiles in PV systems. Developed for the support profile with the dimensions 44×49×16 mm, it protects against dirt, moisture and mechanical hazards, and therefore supports the longevity and reliability of your PV installation. This small but essential accessory contributes to the overall quality of your solar system – for an all-round professional installation.

• Protects profile ends against moisture
• Prevents accumulation of dirt and water
• Increases safety on the roof
• UV-proof and weatherproof PE material
• Suitable for 44×49×16 mm support profiles

The TP 45 4700 ALU S support profile is the elegant, powerful foundation for your photovoltaic installation – ideal for both flat and pitched roofs. With its black anodised surface, it blends in naturally with modern roof landscapes, while the 10 mm groove on both sides enables the flexible integration of module and earthing systems. Thanks to the length of 4,700 mm, high load capacity and the latchable fastening solution, it presents an efficient, safe and system-compatible solution for your PV system.

• Black anodised surface for aesthetic PV roofs
• Universal application on flat and pitched roofs
• 10 mm groove on both sides to accept slide nuts & earthing clamps
• Length 4,700 mm with high section modulus (Wx = 3,680 mm³ / Wy = 3,760 mm³)
• Latchable connection on base or roof hook – fast mounting

The DHU T A2K S roof hook is the ideal fastening solution for PV modules on tiled roofs. It connects the TP 45 support profile with highly flexible height and side adjustment, a robust stainless steel construction and an elegant black coating. Achieve a safe, visually appealing and long-lasting installation for your PV system.

• Suitable especially for tiled roofs.
• Screwable profile for connection to TP 45 support profile.
• Height & side adjustment for flexible mounting (height range 40–54 mm, side adjustment up to 76 mm).
• Powder-coated black surface for aesthetic roof integration.
• Made from stainless steel A2K/1.4301 – long-lasting & corrosion-resistant.

The UP DH support plate is a practical, effective solution for adjusting the height of roof hooks during the mounting of PV modules on pitched roofs. It is compatible with universal and heavy roof hooks, made from robust polyethylene and allows precise mounting by combining multiple plates. Ideal for PV projects requiring precise, safe and efficient roof connection.

• Roof hook height adjustment – for exact alignment on pitched roofs.
• Suitable for universal and heavyweight roof hooks – versatile use.
• Multiple plates can be combined – flexible adjustment to roof structure.
• Made from polyethylene – light, weather-resistant, and prepared for PV roof applications.
• Appropriate dimensions (183 × 80 × 4 mm) ensure discreet integration during mounting.
