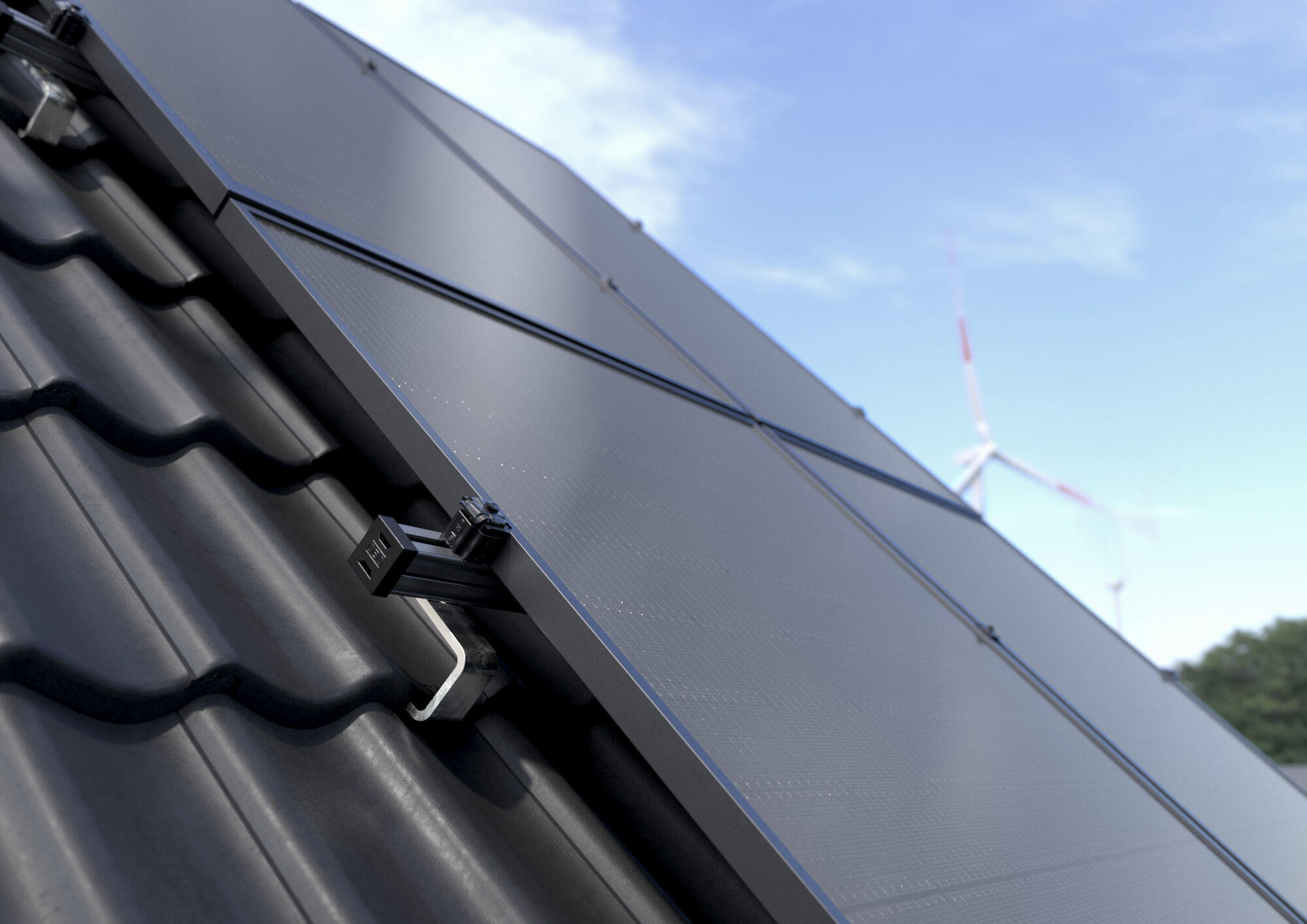

Magic PV Pitch with roof hook, heavy
Magic technology makes it possible: The OBO mounting system for pitched-roof systems can be mounted without the use of screws and tools, which saves you time. The roof hook solution offers flexibility. Not only can it be mounted on all standard pitched-roof types with tiled roofing, it can also be adjusted continuously and down to the millimetre in all directions at any time. The universal clamp functions simultaneously as an intermediate or end clamp, covering a clamping range of 30–50 mm. This allows for the easy fitting of all commercially available PV modules.
Especially practical: The products for flat-roof and pitched-roof systems can be combined.
Do you have any questions on this topic?
We’ll be glad to help you!
Product highlights for pitched-roof systems
Downloads
PV planning has never been so easy – and we’re here to help
A sunny outlook!
We offer you not only innovative mounting systems for your PV system, but also support you with the planning. Our Customer Service team works with you to find the right Magic PV Solution® tailored to your specific needs. Please note: The creation of a quote for free-standing solutions specifically requires a geological survey. We will be happy to help you find a suitable company and establish contact with a geological engineer.
The external survey will then be reviewed and evaluated for completeness of all the relevant data.
Smart solar planning – with the OBO Construct PV tool
With the OBO Construct tool for PV mounting systems for flat-roof and pitched-roof systems you plan your Magic PV Solution® tailored to your specific needs and requirements. Intuitive, clear, fast.
- Explained step by step
- Intuitive to use
- Order list created automatically
