Wall and support bracket AW 30 FT
Type AW 30 101 FT
|Item no. 6419842
|EAN 4012196512140
Item no. / Type
Width
F in kN
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description

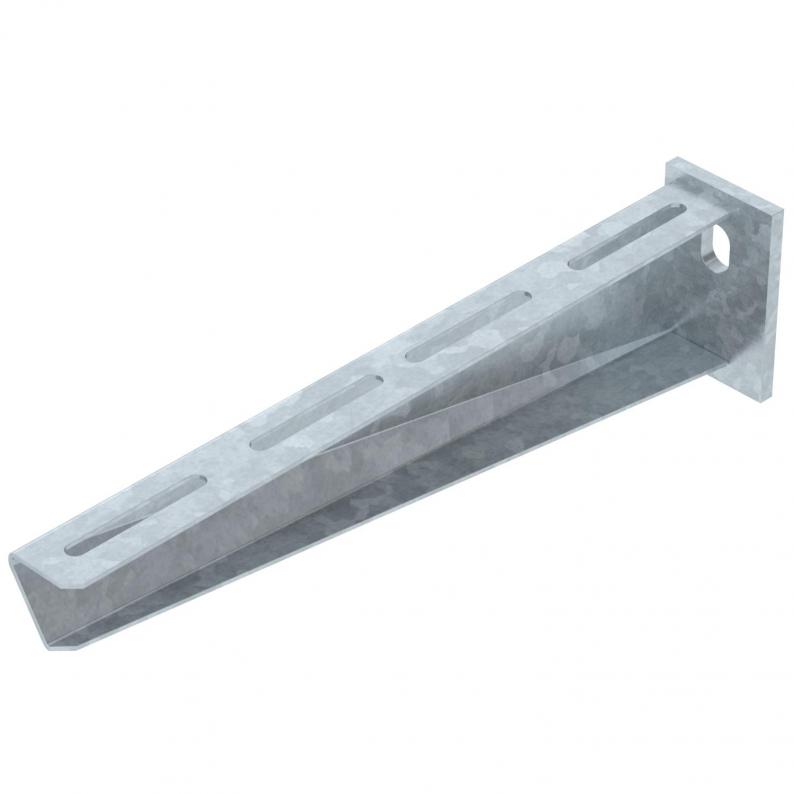

Medium-duty wall and support bracket with welded head plate.
Fastening of the bracket to the U support of width 400 mm or greater using a hexagonal bolt through both sides of the support. Please insert suitable spacers.
Technical data
Dimensions
| Length | 50 mm |
|---|---|
| Width | 1010 mm |
| Height | 135 mm |
| Dimension A | 50 mm |
| Dimension B | 1010 mm |
| Dimension H | 135 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Angle range, min. | 90 mm |
| Angle range, max. | 90 mm |
| Hole diameter | 13 mm |
| Version for | Wall and support bracket |
| F in kN | 3 kN |
| Dimension | B1000mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Bending of the bracket tip at permitted bracket load
Permitted bracket load in kN without man load
Load curve with bracket lengths in mm
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (7)
Declarations (2)
Instructions and Aid (2)
Product images (1)
3D data downloads (1)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 6406122
Truss-head bolt with flange nut FType
FRSB 6x12 F
Smallest selling unit: 100 piece
100piece
piece
Variants
Type
Width
F in kN
Colour
Item no.
AW 30 11 FT
110
3
zinc
6419704
AW 30 16 FT
160
3
zinc
6419712
AW 30 21 FT
210
3
zinc
6419720
AW 30 31 FT
310
3
zinc
6419747
AW 30 41 FT
410
3
zinc
6419763
AW 30 46 FT
460
3
zinc
6419771
AW 30 51 FT
510
3
zinc
6419798
AW 30 61 FT
610
3
zinc
6419828
AW 30 76 FT
760
3
zinc
6419838
AW 30 91 FT
910
3
zinc
6419840
AW 30 101 FT
1010
3
zinc
6419842
