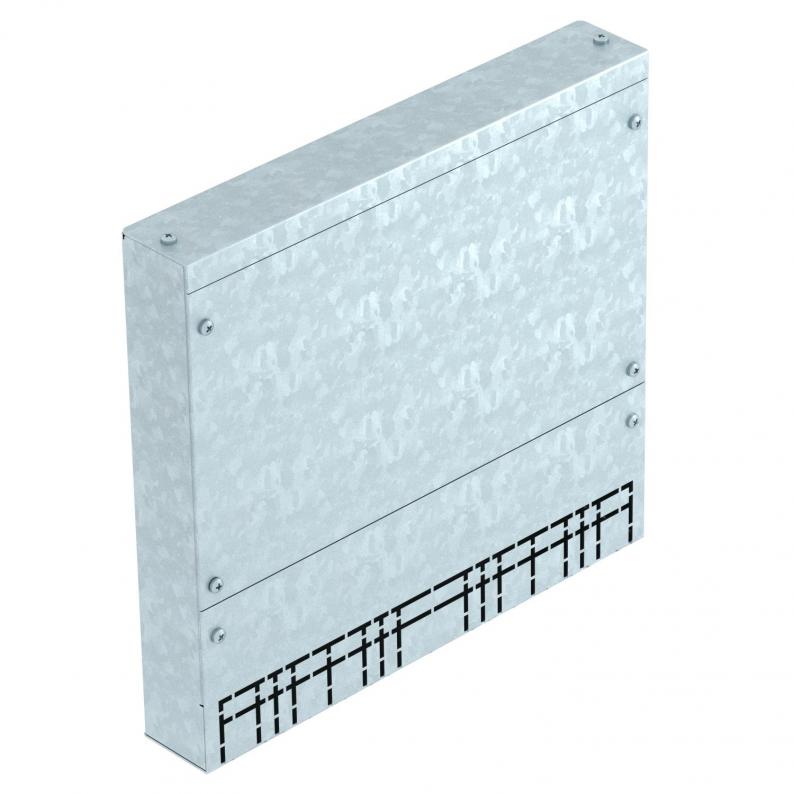

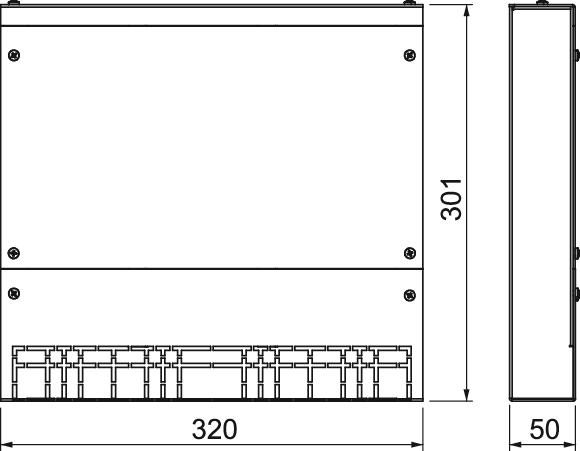

Vertical connection socket for duct height 25 and 38 mm

Item no. / Types

Trunking width, min.	50 mm

Trunking width, max.	300 mm

Duct height, min.	25 mm

Trunking height, max.	38 mm

Product description

Product description

Vertically mountable connection socket for metallic ducts of heights 25 mm and 38 mm.

Technical data

All types

Types	Trunking width, min.	Trunking width, max.	Duct height, min.	Trunking height, max.	Item no.	Quantity	SSU
VAB MD	50 mm	300 mm	25 mm	38 mm	7490150	piece	1 piece
VAB MD 1.6	50 mm	300 mm	25 mm	38 mm	7490153	piece	1 piece
VAB UMD 300 1.6	50 mm	300 mm	25 mm	38 mm	7490154	piece	1 piece
