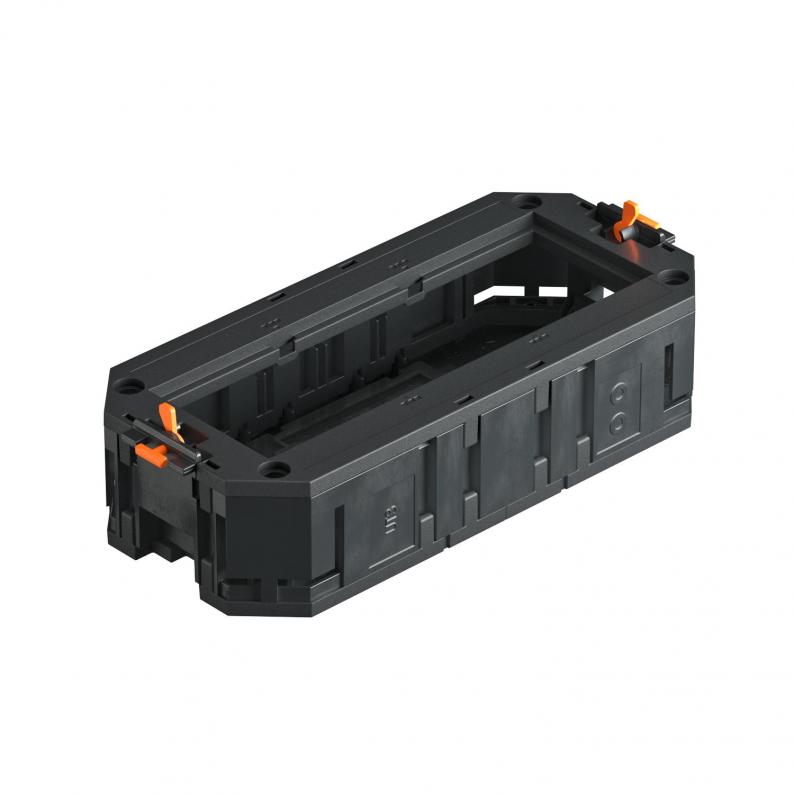

UT3 universal support, with cover plate for Modul 45® devices, system length 165 mm

UT3 universal support, with cover plate for Modul 45® devices, system length 165 mm

Type UT3 45 3
|
Item no. 7408723
|
EAN 4012196435289
Show all variants
Item no. / Type
7408723 / UT3 45 3

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

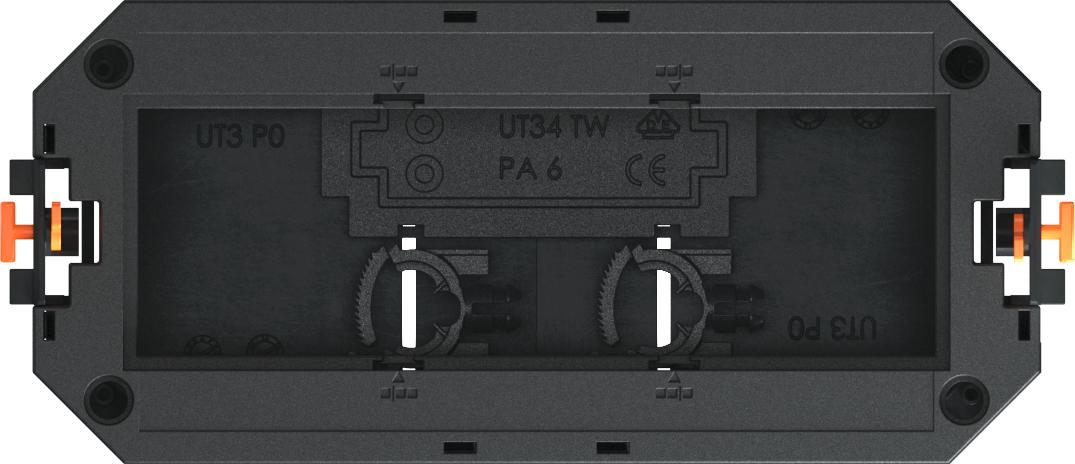

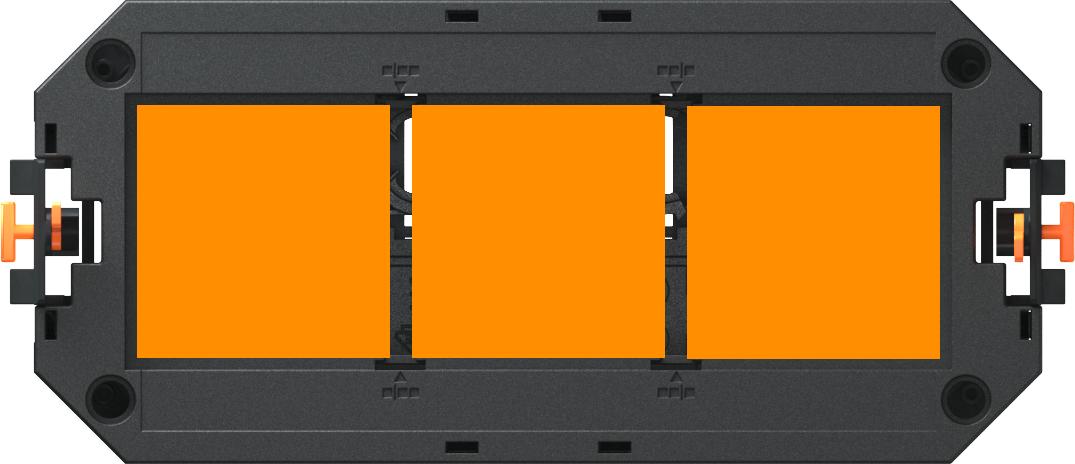

Universal support with two strain reliefs, mounting bridges, partition and cover plate UT3 P3 for the installation of 3 Modul 45 devices in device installation units of the nominal sizes 2, R4, 4 and R7.



  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

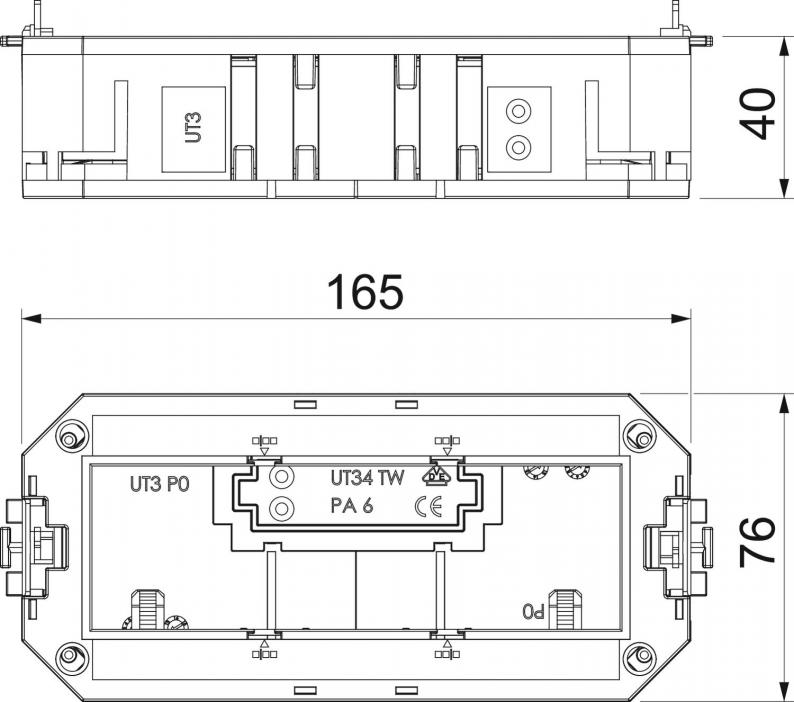

Dimensions

Length165 mm
Width76 mm
Height40 mm

Technical data

No. of entries4
Number of installable devices3
Installation technologyGrid M45
Number of strain reliefs2
Version forSocket shape
Dimension165x76x40
MaterialPolyamide
ColourGraphite black; RAL 9011
CO2 Footprint (GWP) Cradle-to-Gate0,5407 kg CO2e / 1 Piece
