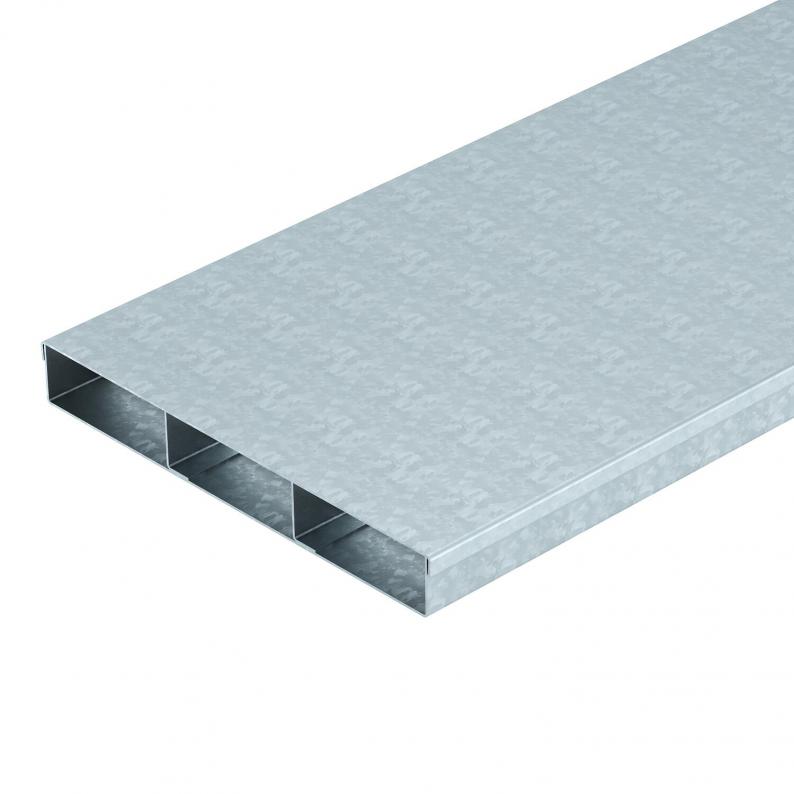

Underfloor duct MD 3-compartment, duct height 38 mm

Underfloor duct MD 3-compartment, duct height 38 mm

Type MD 25038 2+2 C3
|
Item no. 7490430
|
EAN 4012197007218
Show all variants
Item no. / Type
Length
Width
Height
Material thickness
Number of compartments

Smallest selling unit: 2.5 m

m

DescriptionTechnical dataDownloadsVariants

Description

Underfloor installation duct for routing cables under the screed.
  • gas-/battery-actuated setting tool

Technical data

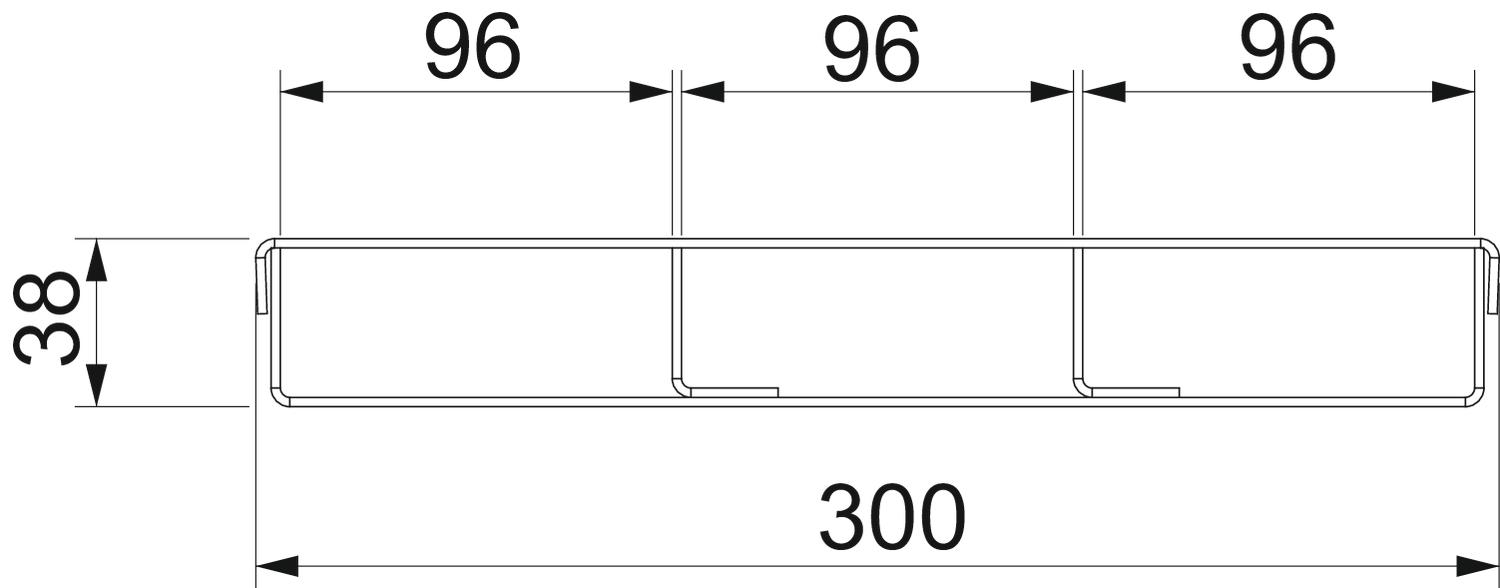

Dimensions

Length2500 mm
Width250 mm
Height38 mm
Dimension b79 mm
Dimension a79 mm
Dimension c79 mm
Dimension h38 mm

Technical data

Material thickness1,6 mm
Number of compartments3 St.
Trunking width, min.250 mm
Decouplableno
Floor plateyes
Application areaScreed-covered
Removable coverno
Duct height, min.38 mm
Dimension2500x250x38
SurfaceStrip galvanized
MaterialSteel

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Product images (2)
Tender specifications (2)

Variants

Width
MD 20038 1.6C3
Item no.
7490359
Length
2500
Width
200
Height
38
Material thickness
1,6
Number of compartments
3
MD 22538 1.6C3
Item no.
7490363
Length
2500
Width
225
Height
38
Material thickness
1,6
Number of compartments
3
MD 25038 1.6C3
Item no.
7490373
Length
2500
Width
250
Height
38
Material thickness
1,6
Number of compartments
3
MD 30038 C3 1.6
Item no.
7490383
Length
2500
Width
300
Height
38
Material thickness
1,6
Number of compartments
3
MD 7538 2+2 C1
Item no.
7490414
Length
2500
Height
38
Material thickness
1,6
Number of compartments
3
MD 22538 2+2 C3
Item no.
7490426
Length
2500
Width
225
Height
38
Material thickness
1,6
Number of compartments
3
MD 25038 2+2 C3
Item no.
7490430
Length
2500
Width
250
Height
38
Material thickness
1,6
Number of compartments
3
