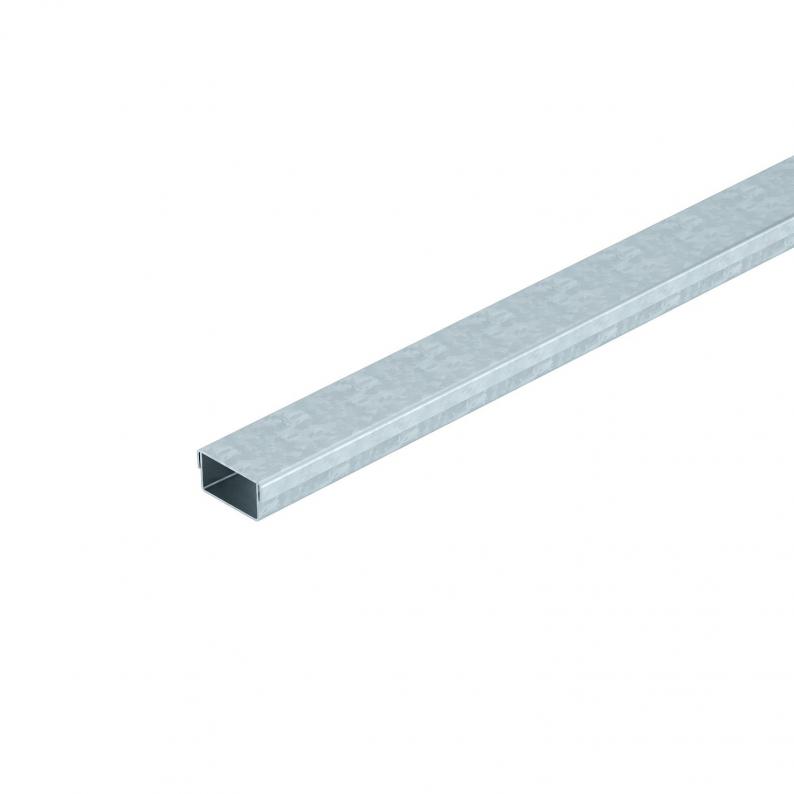

Underfloor duct MD 1-compartment, duct height 25 mm
Type MD 5025 1.5C1
|Item no. 7490300
|EAN 4012196511013



Item no. / Type
Length
Width
Height
Material thickness
Number of compartments
Smallest selling unit: 2.5 m
2.5m
m
Description
Underfloor installation duct for routing cables under the screed.
Technical data

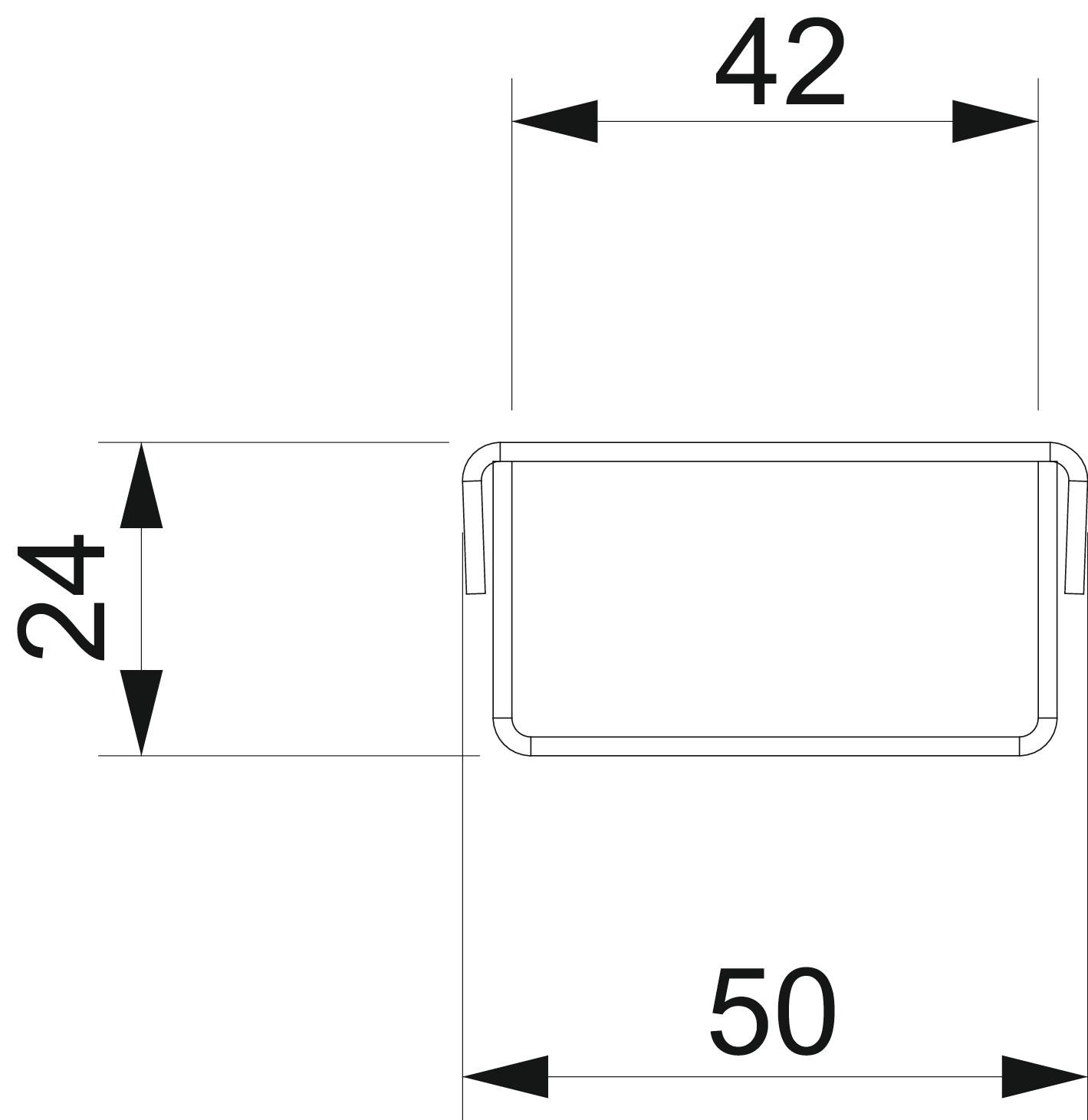

Dimensions
| Length | 2500 mm |
|---|---|
| Width | 50 mm |
| Height | 25 mm |
| Dimension a | 42 mm |
| Dimension h | 25 mm |
Technical data
| Material thickness | 1,5 mm |
|---|---|
| Number of compartments | 1 St. |
| Trunking width, min. | 50 mm |
| Application area | Screed-covered |
| Duct height, min. | 25 mm |
| Dimension | 50x25x2500 |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Length
Width
Height
Material thickness
Number of compartments
Item no.
MD 5025 1.5C1
2500
50
25
1,5
1
7490300
MD 7525 1.5C1
2500
75
25
1,5
1
7490310
MD 10025 1.5C1
2500
100
25
1,5
1
7490320
MD 15025 1.5C1
2500
150
25
1,5
1
7490330
Width
MD 5025 1.5C1
Item no.
7490300
Length
2500
Width
50
Height
25
Material thickness
1,5
Number of compartments
1
MD 7525 1.5C1
Item no.
7490310
Length
2500
Width
75
Height
25
Material thickness
1,5
Number of compartments
1
MD 10025 1.5C1
Item no.
7490320
Length
2500
Width
100
Height
25
Material thickness
1,5
Number of compartments
1
MD 15025 1.5C1
Item no.
7490330
Length
2500
Width
150
Height
25
Material thickness
1,5
Number of compartments
1
