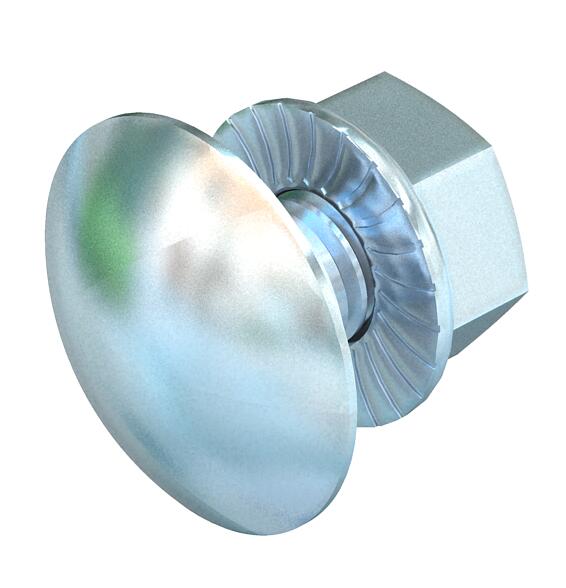

Truss-head bolt with flange nut G
Type FRSB 6x12 VZ G
|Item no. 6406133
|EAN 4012195059561
Item no. / Type
Length
Surface
Electrogalvanized
Material
Steel
Smallest selling unit: 10 piece
10piece
piece
Description
Hot galvanised truss-head bolt with square neck including electrogalvanised combination nut.
For universal fastening of construction components. Permitted use of the article only in dry atmospheres.
Technical data

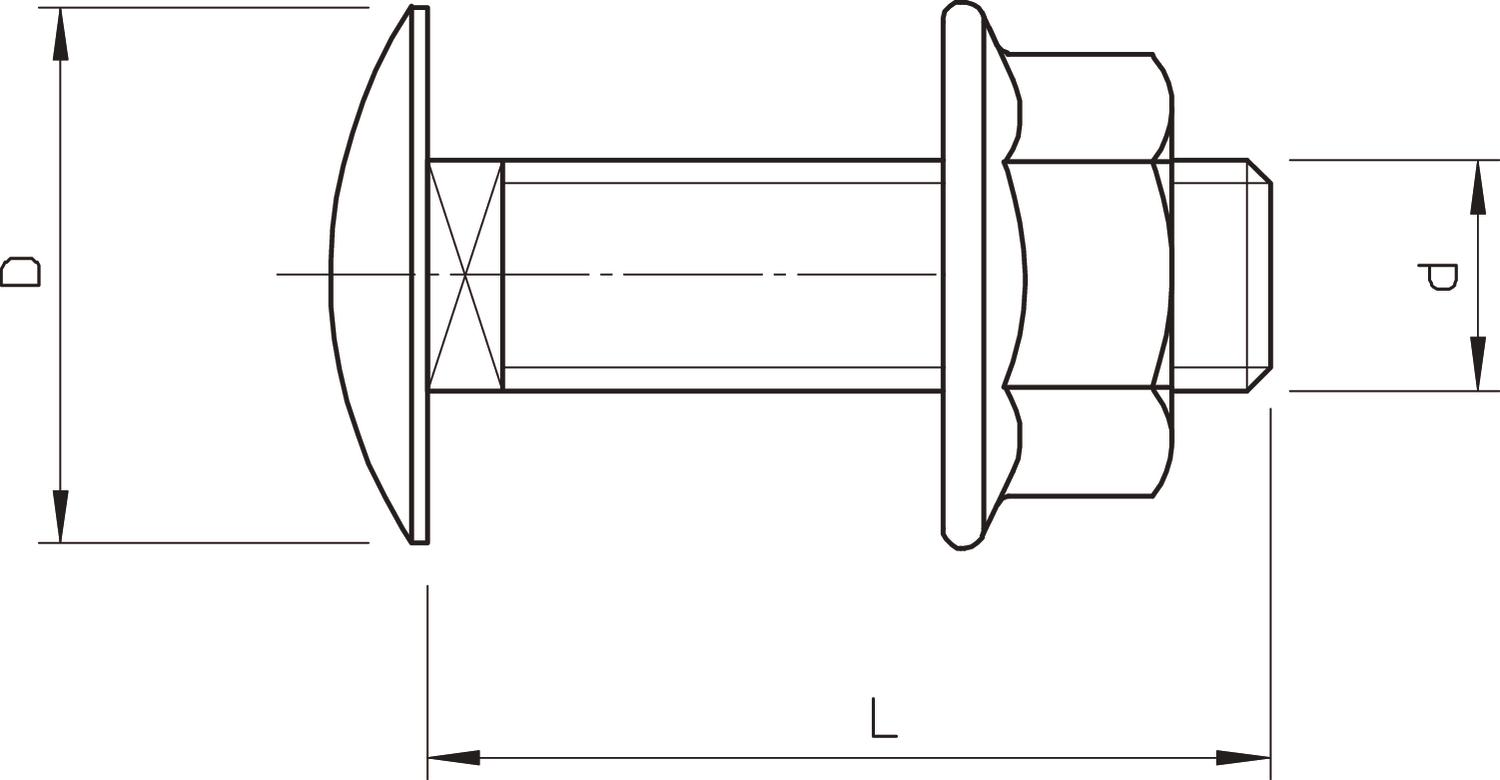

Dimensions
| Length | 12 mm |
|---|---|
| Dimension L | 12 mm |
| Dimension d | 6 mm |
| Dimension D | 13,5 mm |
Technical data
| Thread metric | 6 |
|---|---|
| Screw system | Miscellaneous |
| Thread type | Metric |
| Resistance grade | 5.6 |
| With washer | no |
| With nut | yes |
| Self-locking | no |
| With flange | no |
| WAF | 10 |
| Full thread | yes |
| Dimension | M6x12 |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
| Left thread | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0167 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (3)
Tender specifications (2)
Variants
Type
Length
Surface
Material
Item no.
FRSB 6x12 G
12
Electrogalvanized
Steel
6406130
FRSB 6x12 VZ G
12
Electrogalvanized
Steel
6406133
FRSB 6x12 G
Item no.
6406130
Length
12
Surface
Electrogalvanized
Material
Steel
FRSB 6x12 VZ G
Item no.
6406133
Length
12
Surface
Electrogalvanized
Material
Steel
