Quick pipe T piece, light grey
Type 2953 T M16 LGR
|Item no. 2153872
|EAN 4012195510314
Item no. / Type
Dimension L
Size
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 5 piece
5piece
piece
Description
Fitting for plastic electrical installation pipes to create T branches. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
Technical data

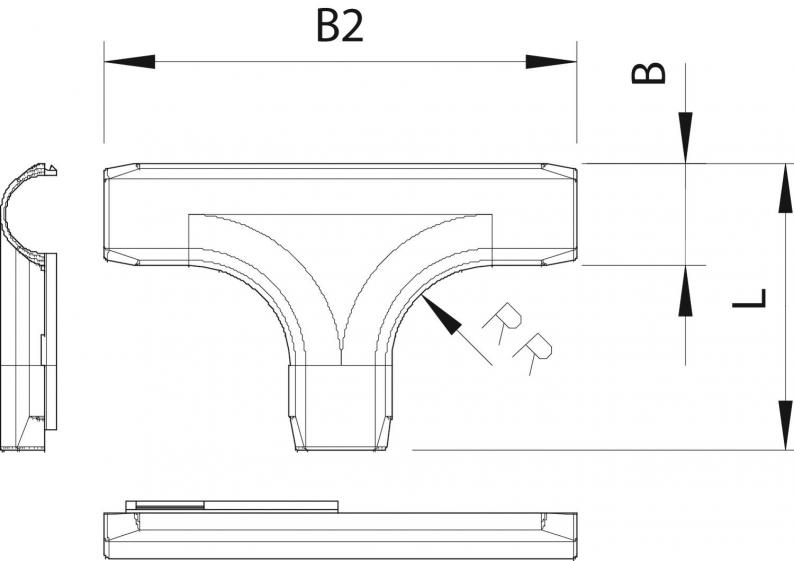

Dimensions
| Dimension L | 57,4 mm |
|---|---|
| Dimension B | 20,4 mm |
| Dimension R | 20 mm |
| Dimension B2 | 94,4 mm |
Technical data
| Halogen-free | no |
|---|---|
| Size | M16 |
| Polished surface | no |
| With sleeve | no |
| Brushed surface | no |
| Version for | Connector |
| Permitted temperature range, min. | 0 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | M16 |
| Material | Polyvinylchloride |
| Colour | Light grey; RAL 7035 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Product images (2)
Tender specifications (2)
Variants
Type
Dimension L
Size
Item no.
2953 T M16 LGR
57,4
M16
2153872
2953 T M20 LGR
67,5
M20
2153874
2953 T M25 LGR
77,2
M25
2153876
