Mesh cable tray GR 105 FT
Type GR 105 150 FT
|Item no. 6003168
|EAN 4012196965304
Item no. / Type
Length
Width
Height
Usable cross-section
Wire diameter
Maintain electrical functions
no
Smallest selling unit: 3 m
3m
m
Description
Mesh cable tray made of spot-welded steel wire of side height 105 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
The grid dimension is 50 x 100 mm.
Joint connectors GSV 34 should be ordered separately and in the appropriate quantity.
Technical data

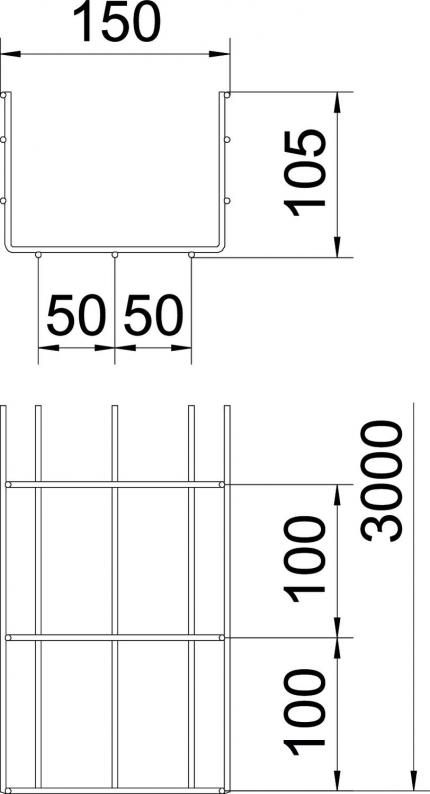

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 150 mm |
| Height | 105 mm |
| Dimension B | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Usable cross-section | 130 cm² |
| Rustproof steel, pickled | no |
| Usable cross-section | 13000 mm² |
| Integrated partition | Without |
| Profile shape | U-shaped |
| Wire diameter | 3,9 mm |
| Dimension | 105x150x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Loads
| Support spacing 2.0 m | 0,15 kN/m |
|---|---|
| Support spacing 2.5 m | 0,15 kN/m |
| Support spacing 1.0 m | 0,55 kN/m |
| Support spacing 1.5 m | 0,35 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
