JBT underfloor junction box - for PVC duct
Type JBT2 9035 P
|Item no. 7490117
|EAN 4012196573592
Item no. / Type
Trunking width, min.
Trunking width, max.
Duct height, min.
Trunking height, max.
Smallest selling unit: 1 piece
1piece
piece
Description

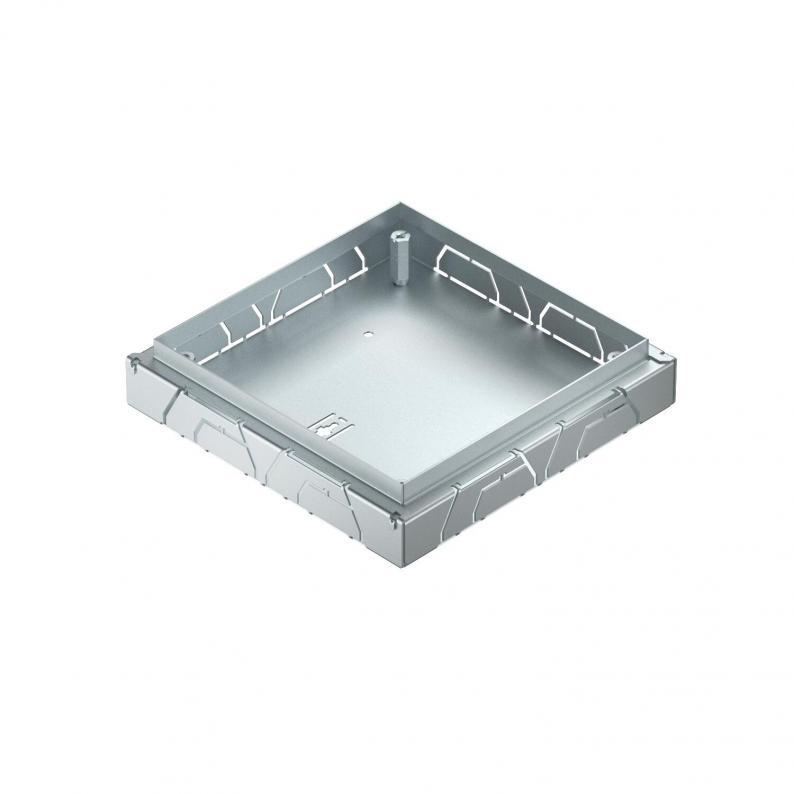

Underfloor junction box for PVC ducts in heights of 25 mm and 35 mm.
Technical data

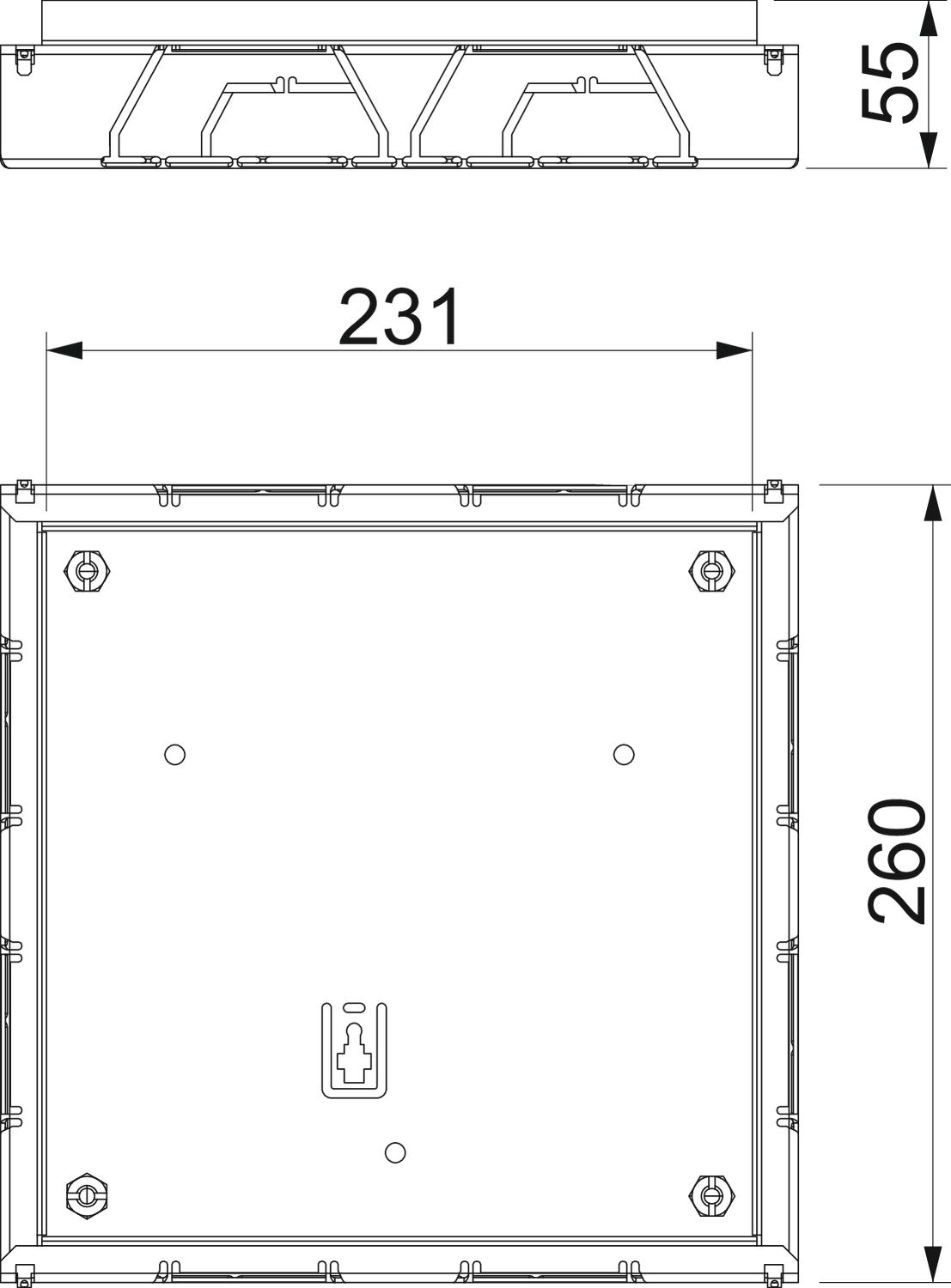

Dimensions
| Length | 260 mm |
|---|---|
| Width | 260 mm |
| Height | 55 mm |
| Dimension A | 260 mm |
| Dimension B | 260 mm |
| Dimension b | 231 mm |
| Dimension a | 231 mm |
| Dimension h | 55 mm |
Technical data
| Number of compartments | 2 St. |
|---|---|
| Suitable for screed-covered underfloor ducts | yes |
| Trunking width, min. | 60 mm |
| Trunking width, max. | 90 mm |
| Installation opening for on-floor tank | no |
| Decouplable | no |
| Floor plate | yes |
| Depth of floor covering recess | 10 mm |
| Expansion option | For installation of accessories |
| For pipe connection | no |
| Duct height, min. | 25 mm |
| Trunking height, max. | 35 mm |
| Dimension | 260x260x55 |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Product images (2)
Tender specifications (2)
Variants
Type
Trunking width, min.
Trunking width, max.
Duct height, min.
Trunking height, max.
Item no.
JBT1 9035 P
60
90
25
35
7490116
JBT2 9035 P
60
90
25
35
7490117
JBT3 9035 P
60
90
25
35
7490118
JBT1 9035 P
Item no.
7490116
Trunking width, min.
60
Trunking width, max.
90
Duct height, min.
25
Trunking height, max.
35
JBT2 9035 P
Item no.
7490117
Trunking width, min.
60
Trunking width, max.
90
Duct height, min.
25
Trunking height, max.
35
JBT3 9035 P
Item no.
7490118
Trunking width, min.
60
Trunking width, max.
90
Duct height, min.
25
Trunking height, max.
35
