JBF underfloor junction box - for PVC duct
Type JBF3 9035
|Item no. 7490144
|EAN 4012196432349
Item no. / Type
Trunking width, min.
Trunking width, max.
Duct height, min.
Trunking height, max.
Smallest selling unit: 1 piece
1piece
piece
Description

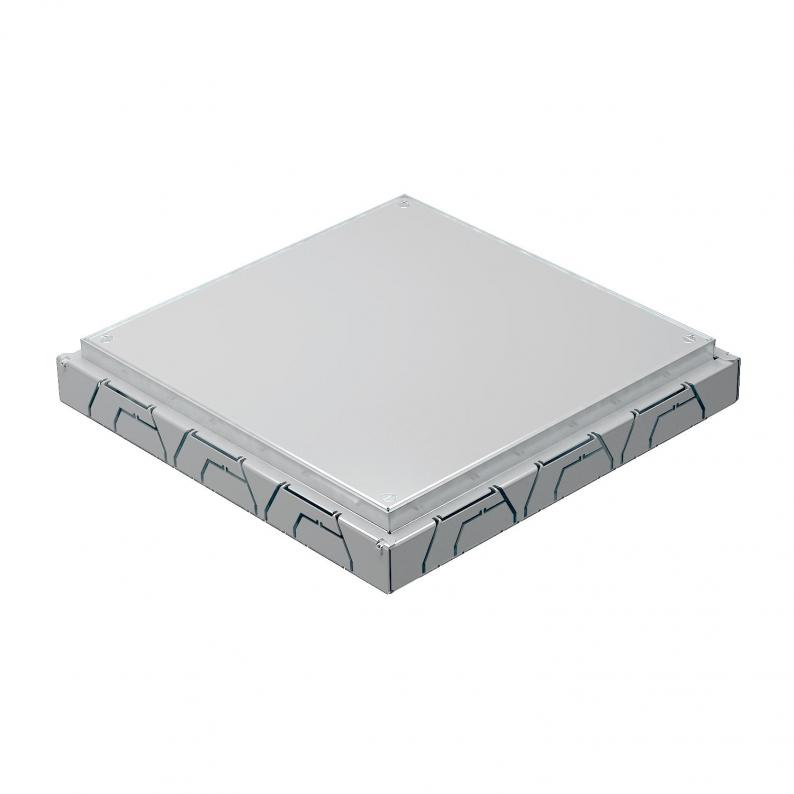

Underfloor junction box for PVC ducts in the heights 25 mm and 35 mm.
Technical data

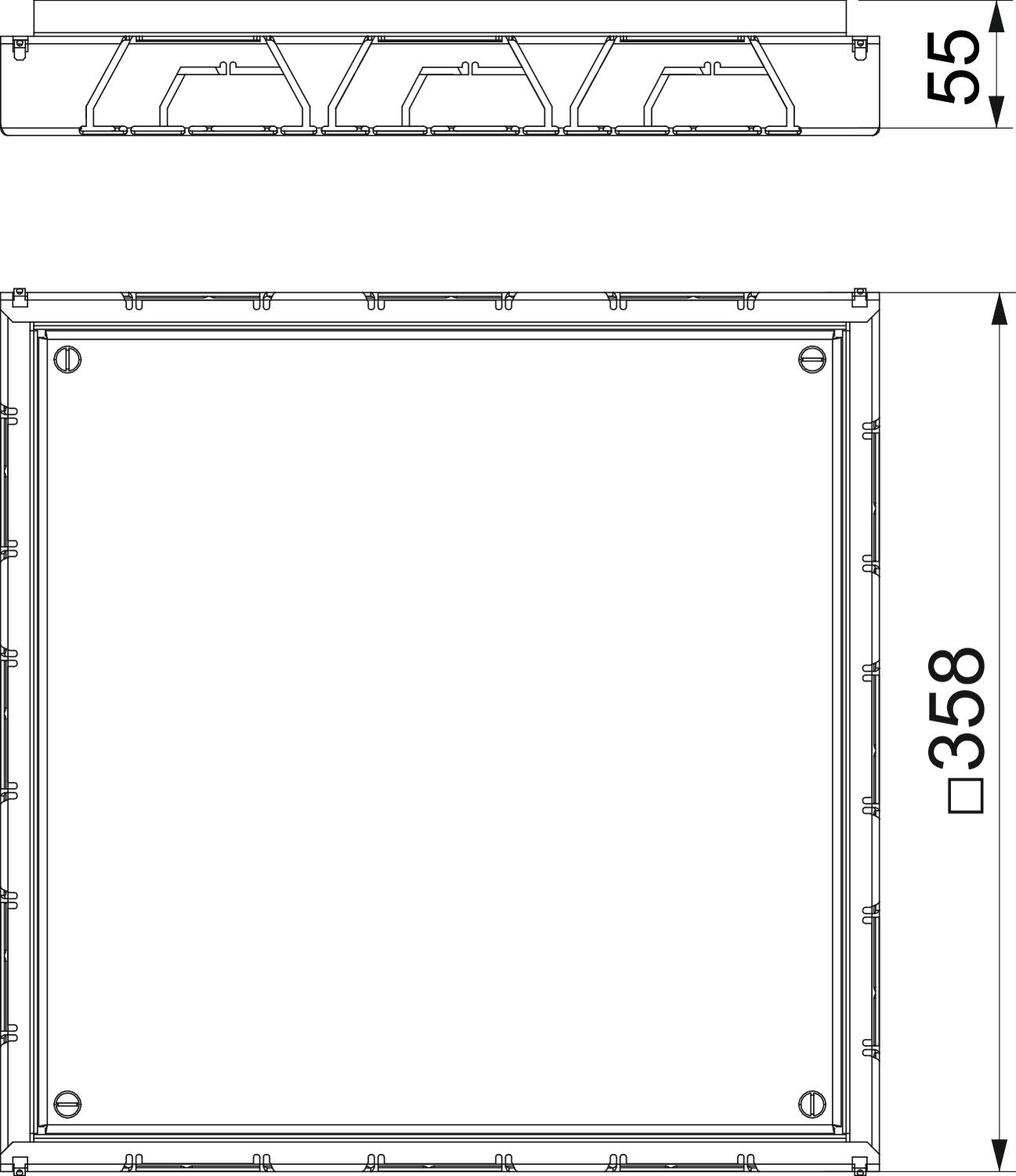

Dimensions
| Length | 358 mm |
|---|---|
| Width | 358 mm |
| Height | 55 mm |
| Dimension A | 358 mm |
| Dimension B | 358 mm |
| Dimension b | 325 mm |
| Dimension a | 325 mm |
| Dimension h | 55 mm |
Technical data
| Number of compartments | 3 St. |
|---|---|
| Minimum screed height | 55 |
| Suitable for screed-covered underfloor ducts | yes |
| Trunking width, min. | 60 mm |
| Trunking width, max. | 90 mm |
| Installation opening for on-floor tank | no |
| Decouplable | no |
| Floor plate | yes |
| Depth of floor covering recess | 0 mm |
| Expansion option | For installation of accessories |
| For pipe connection | no |
| Duct height, min. | 25 mm |
| Trunking height, max. | 35 mm |
| Dimension | 357x357x55 |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Certificates (1)
Product images (2)
Tender specifications (2)
Variants
Type
Trunking width, min.
Trunking width, max.
Duct height, min.
Trunking height, max.
Item no.
JBF1 9035
60
90
25
35
7490140
JBF2 9035
60
90
25
35
7490142
JBF3 9035
60
90
25
35
7490144
JBF1 9035
Item no.
7490140
Trunking width, min.
60
Trunking width, max.
90
Duct height, min.
25
Trunking height, max.
35
JBF2 9035
Item no.
7490142
Trunking width, min.
60
Trunking width, max.
90
Duct height, min.
25
Trunking height, max.
35
JBF3 9035
Item no.
7490144
Trunking width, min.
60
Trunking width, max.
90
Duct height, min.
25
Trunking height, max.
35
