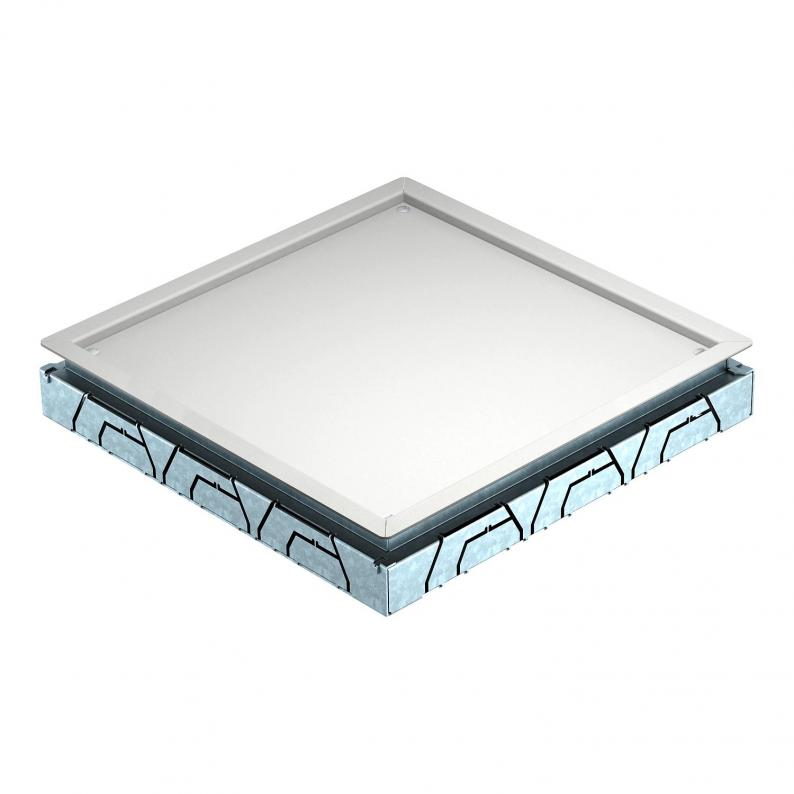

JBC underfloor junction box - for PVC duct
Type JBC3 9035 10
|Item no. 7490124
|EAN 4012196426447
Item no. / Type
Trunking width, min.
Trunking width, max.
Duct height, min.
Trunking height, max.
Smallest selling unit: 1 piece
1piece
piece
Description
Underfloor junction box for PVC ducts in heights of 25 mm and 35 mm.
Technical data
Technical data
| Number of compartments | 3 St. |
|---|---|
| Suitable for screed-covered underfloor ducts | yes |
| Trunking width, min. | 60 mm |
| Trunking width, max. | 90 mm |
| Installation opening for on-floor tank | no |
| Decouplable | no |
| Floor plate | yes |
| Depth of floor covering recess | 10 mm |
| Expansion option | For installation of accessories |
| For pipe connection | no |
| Duct height, min. | 25 mm |
| Trunking height, max. | 35 mm |
| Dimension | 357x357x60 |
| Surface | Strip galvanized |
| Material | Steel |

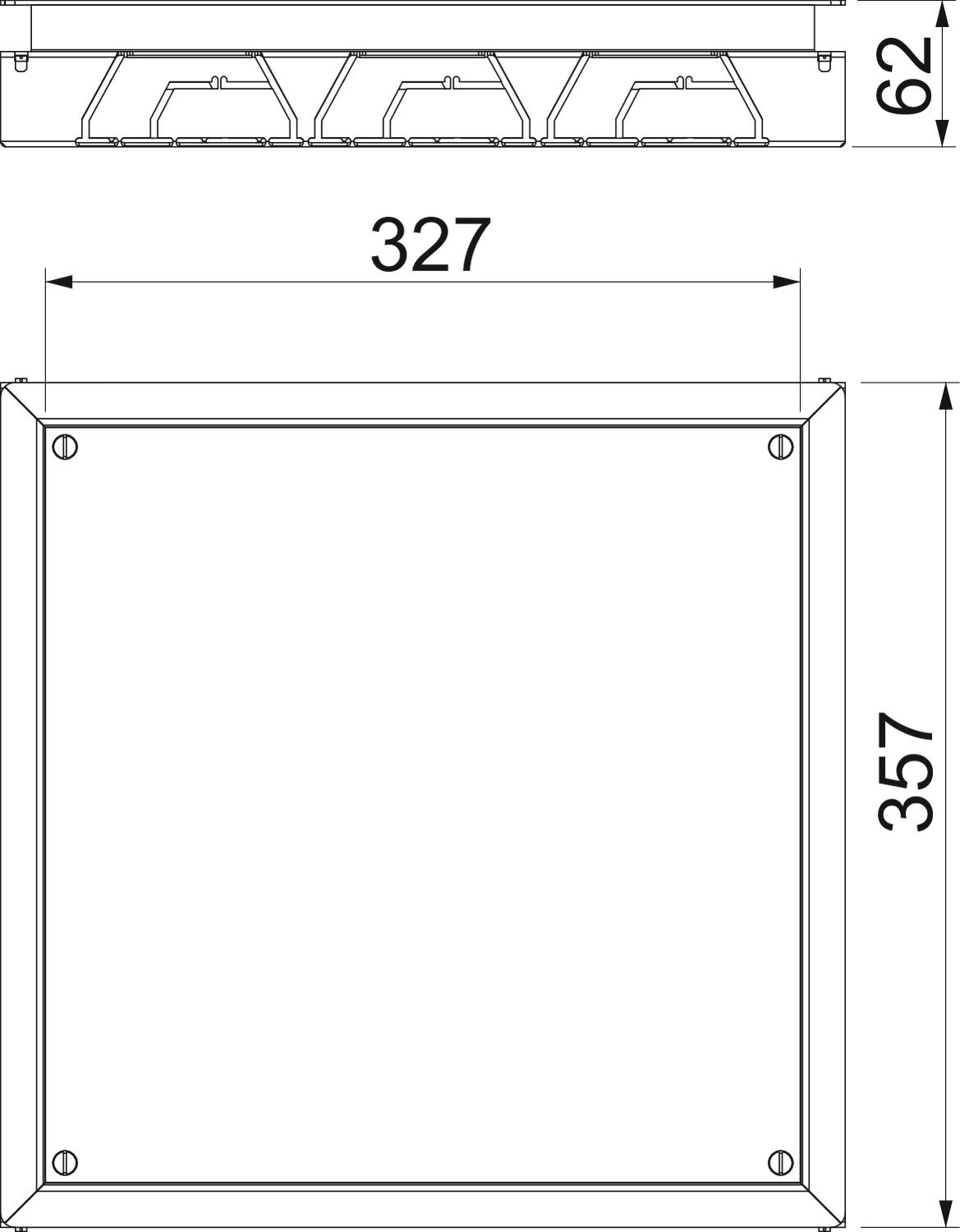

Dimensions
| Dimension A | 357 mm |
|---|---|
| Dimension B | 357 mm |
| Dimension b | 327 mm |
| Dimension a | 327 mm |
| Dimension h | 62 mm |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Product images (2)
Tender specifications (2)
Variants
Type
Trunking width, min.
Trunking width, max.
Duct height, min.
Trunking height, max.
Item no.
JBC1 9035 10
60
90
25
35
7490120
JBC2 9035 10
60
90
25
35
7490122
JBC3 9035 10
60
90
25
35
7490124
JBC1 9035 10
Item no.
7490120
Trunking width, min.
60
Trunking width, max.
90
Duct height, min.
25
Trunking height, max.
35
JBC2 9035 10
Item no.
7490122
Trunking width, min.
60
Trunking width, max.
90
Duct height, min.
25
Trunking height, max.
35
JBC3 9035 10
Item no.
7490124
Trunking width, min.
60
Trunking width, max.
90
Duct height, min.
25
Trunking height, max.
35
