Hexagonal bolt M10 F
Type SKS 10x30 F
|Item no. 3160742
|EAN 4012195257295
Item no. / Type
Dimension L
Dimension d
Thread metric
10
WAF
17
Material
Steel
This item is a discontinued product!
Smallest selling unit: 50 piece
50piece
piece
Description

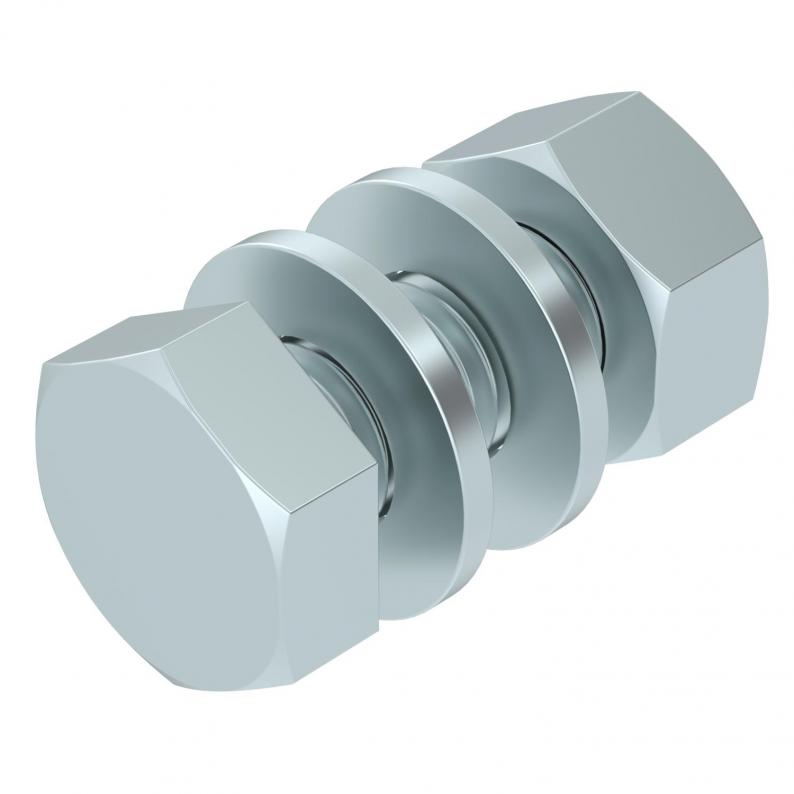

Hexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.
Technical data
Dimensions
| Length | 30 mm |
|---|---|
| Dimension L | 30 mm |
| Dimension d | 10 mm |
Technical data
| Thread metric | 10 |
|---|---|
| Thread | M 10 x 30 |
| Resistance grade | 8.8 |
| With washer | yes |
| With nut | yes |
| Thread increase | 1,5 mm |
| WAF | 17 |
| Full thread | yes |
| Dimension | M10x30 |
| Surface | Hot galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (2)
Instructions and Aid (1)
Product images (3)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Dimension L
Thread metric
Dimension d
WAF
Material
Item no.
SKS 10x30 F
30
10
10
17
Steel
3160742
SKS 10x120 F
120
10
10
17
Steel
3160793
SKS 10x80 F
80
10
10
17
Steel
6418250
Dimension L
SKS 10x30 F
Item no.
3160742
Dimension L
30
Thread metric
10
Dimension d
10
WAF
17
Material
Steel
SKS 10x120 F
Item no.
3160793
Dimension L
120
Thread metric
10
Dimension d
10
WAF
17
Material
Steel
SKS 10x80 F
Item no.
6418250
Dimension L
80
Thread metric
10
Dimension d
10
WAF
17
Material
Steel
