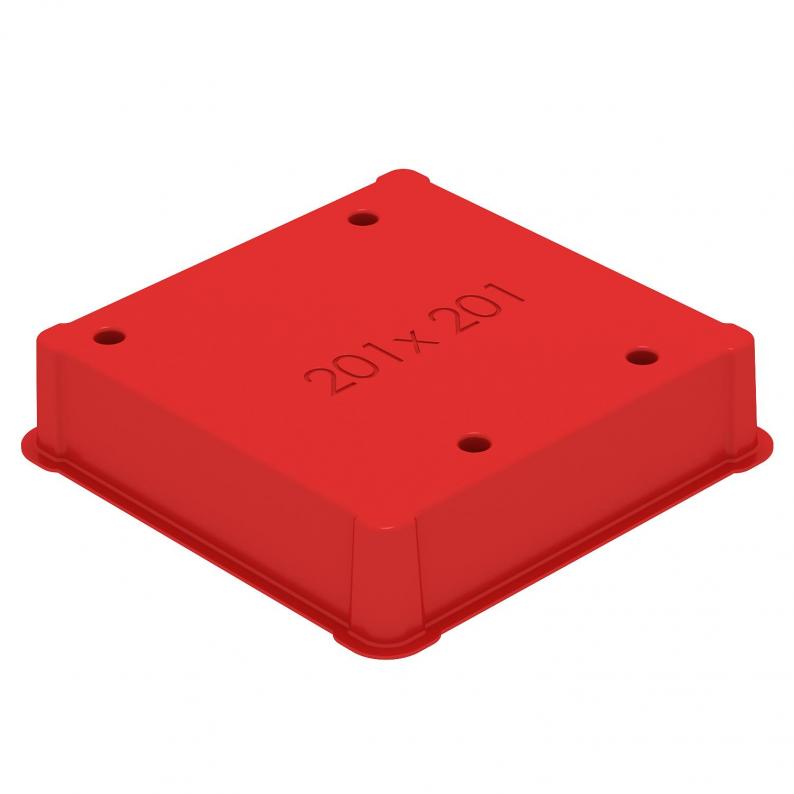

Height extension kit for underfloor box 201 x 201
Type SKE 201X201
|Item no. 7404394
|EAN 4012195759652
Item no. / Type
7404394 / SKE 201X201
Smallest selling unit: 1 piece
1piece
piece
Description
Height extension kit for screed protection cover of underfloor box UDS or a screed protection cover for installation opening of nominal size 4. Height extension of + 40 mm.
Technical data

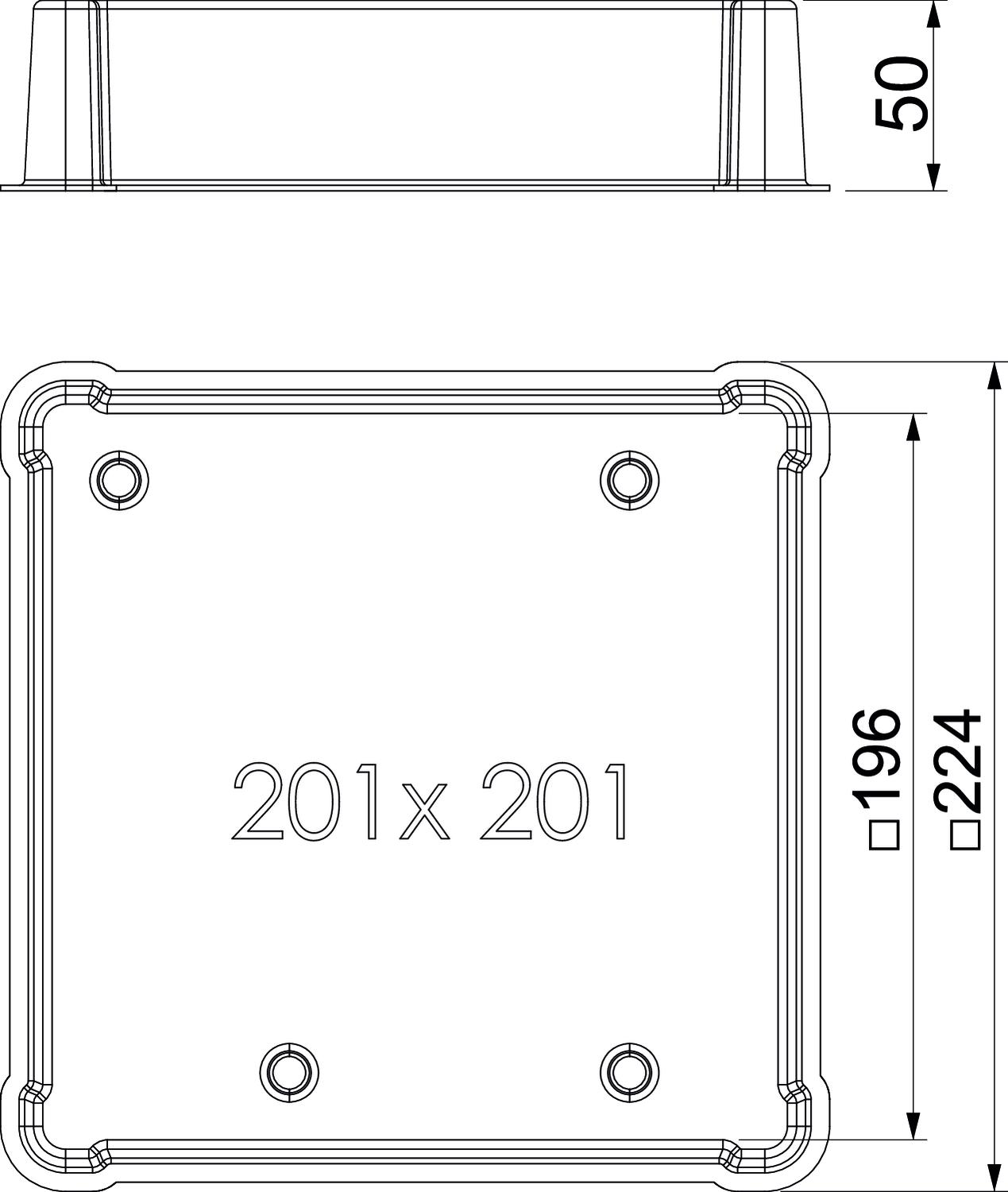

Dimensions
| Length | 201 mm |
|---|---|
| Width | 201 mm |
| Height | 50 mm |
| Dimension A | 201 mm |
Technical data
| Nominal size for device installation units | 4 |
|---|---|
| Dimension | 224x224x50 |
| Material | Polystyrene |
| Colour | verkehrsrot; RAL 3020 |
| Accessories | yes |
| Spare part | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6832 kg CO2e / 1 Piece |
