Head plate, variable A2
Type KU 5 V A2
|Item no. 6348925
|EAN 4012195018360
Item no. / Type
6348925 / KU 5 V A2
Smallest selling unit: 1 piece
1piece
piece
Description

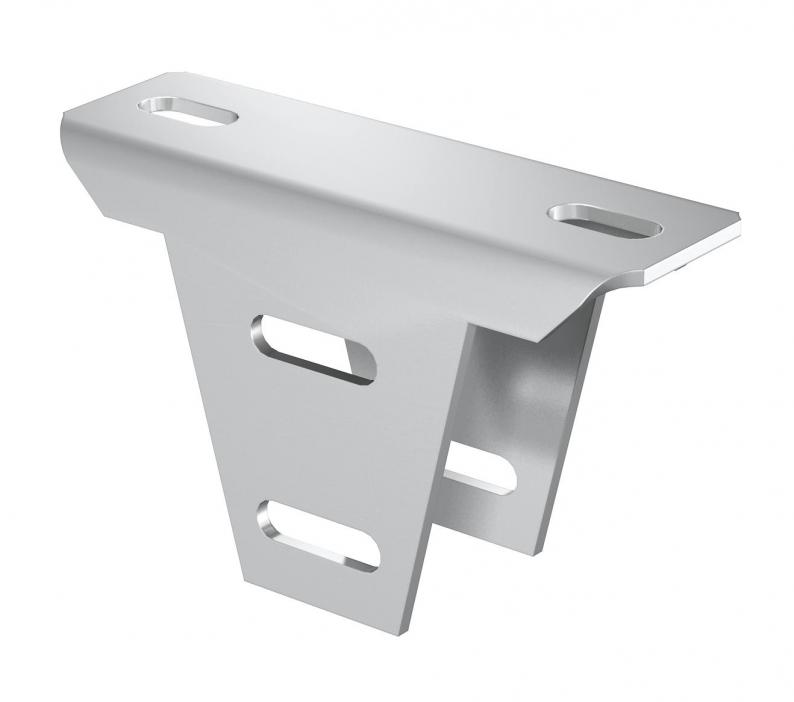

Variable head plate for installation on US 5 support.
The spacer, type DSK 47, is used to install the head plate.
Technical data

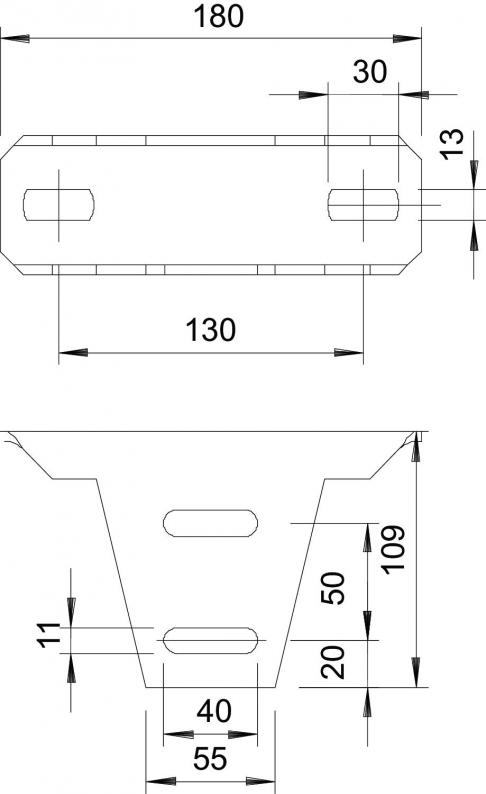

Dimensions
| Length | 180 mm |
|---|---|
| Width | 59 mm |
| Height | 109 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Angle range, min. | 0 mm |
| Angle range, max. | 30 mm |
| Suitable for ceiling fastening | yes |
| Suitable for panel fastening | no |
| Suitable for profile shapes | U profile |
| Version for | Screw head plate |
| Dimension | 180x59x109 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 6,6928 kg CO2e / 1 Piece |
