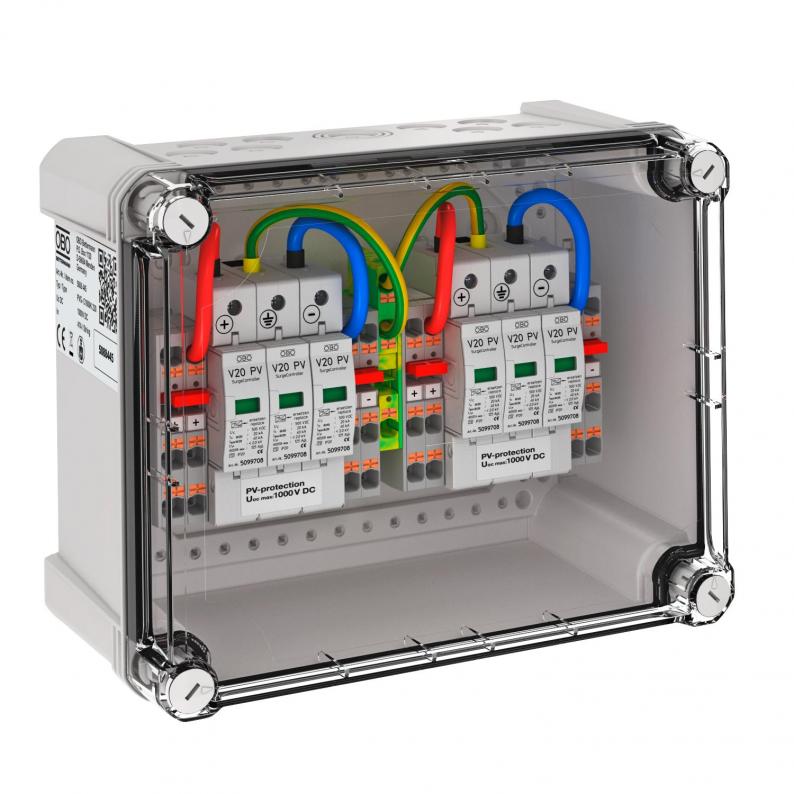

Generator connection box, type 2, for 2 x 2 strings
Type PVG-C1000K 220
|Item no. 5088445
|EAN 4012197365004
Item no. / Type
5088445 / PVG-C1000K 220
Protection rating
IP67
Smallest selling unit: 1 piece
1piece
piece
Description
Generator connection box, type 2, for photovoltaic systems, to connect 2 x 2 strings. For DC protection of the inverter.
• Varistor arrester, plug-in, with separation device in error-resistant Y circuit according to VDE 0100-712 (50539-12)
• Low DC protection level: < 4.0 kV (Uoc max = 1,000 V DC)
• 2 protection devices with 5 push-in terminals each of up to 6 mm² pre-installed in the housing, up to 41 A DC per terminal
• Polycarbonate housing (IP67), UV-resistant for exterior use, incl. cable gland set and pressure compensation element
Additional measures may be required if there is the risk of condensation formation through wind, ice, temperature or sun!
• Varistor arrester, plug-in, with separation device in error-resistant Y circuit according to VDE 0100-712 (50539-12)
• Low DC protection level: < 4.0 kV (Uoc max = 1,000 V DC)
• 2 protection devices with 5 push-in terminals each of up to 6 mm² pre-installed in the housing, up to 41 A DC per terminal
• Polycarbonate housing (IP67), UV-resistant for exterior use, incl. cable gland set and pressure compensation element
Additional measures may be required if there is the risk of condensation formation through wind, ice, temperature or sun!

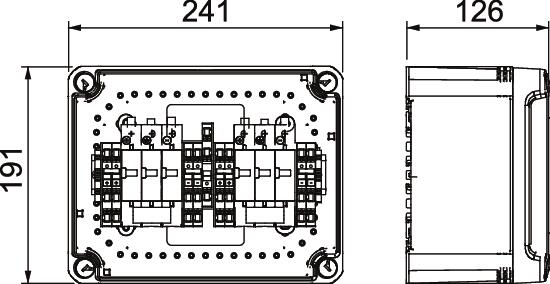

Technical data
Technical data
| Number of inputs | 2 |
|---|---|
| Network form | DC |
| Signalling on device | Visual |
| Protection rating | IP67 |
| Housing material surge protection components | PC |
| Type of entry | Gland |
| Depth | 125 mm |
| Protection rating IK code | IK08 |
| Maximum continuous voltage DC | 1000 V |
| Nominal discharge current (8/20 µs) | 20 kA |
| Installation type | Pre-mounted in the housing |
| Version for | For 2 MMPT and with push-in terminals |
| Conductor cross-section, flexible (fine-wire), max. | 10 AWG |
| DC network form | yes |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 60 °C |
| SPD to IEC 61643-1 | Class II |
| SPD to EN 61643-11 | Type 2 |
| Lightning protection zone LPZ | 1→2 |
| Maximum discharge current (8/20 μs) | 40 kA |
| Response time | <25 ns |
| Permitted temperature range, min. | -25 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 1000V DC |
| Colour | Light grey; RAL 7035 |
| Number of cable entries | 16 |
| Max. Input voltage DC | 1000 V |
| String fuse | Without |
| Monitoring function | no |
| Max. Input current per string | 41 A |
| Max. Output current | 41 A |
| Number of string inputs | 2 |
| Equipped with load-break switch | no |
| Number of MPPTs | 2 |
| Entries per MPPT | 3 |
| Exits per MPPT | 2 |
| CO2 Footprint (GWP) Cradle-to-Gate | 6,2256 kg CO2e / 1 Piece |
Connectivity options
| Conductor cross-section, flexible (fine-wire), min. | 0,5 mm² |
|---|---|
| Conductor cross-section, flexible (fine-wire), max. | 6 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), min. | 0,5 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), min. | 21 AWG |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 8 AWG |
| Anschlussart Generatoranschlusskasten | Push-in terminal |
