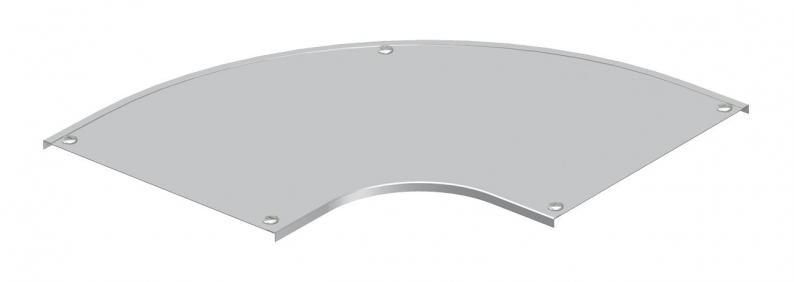

Cover for 90° bend A2
Type DFB 90 600 A2
|Item no. 7134967
|EAN 4012196255191
Item no. / Type
Width
Plate thickness
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description
Cover for 90° bend with pre-mounted turn buckles.
The cover can be used with fittings of all side heights.
Technical data

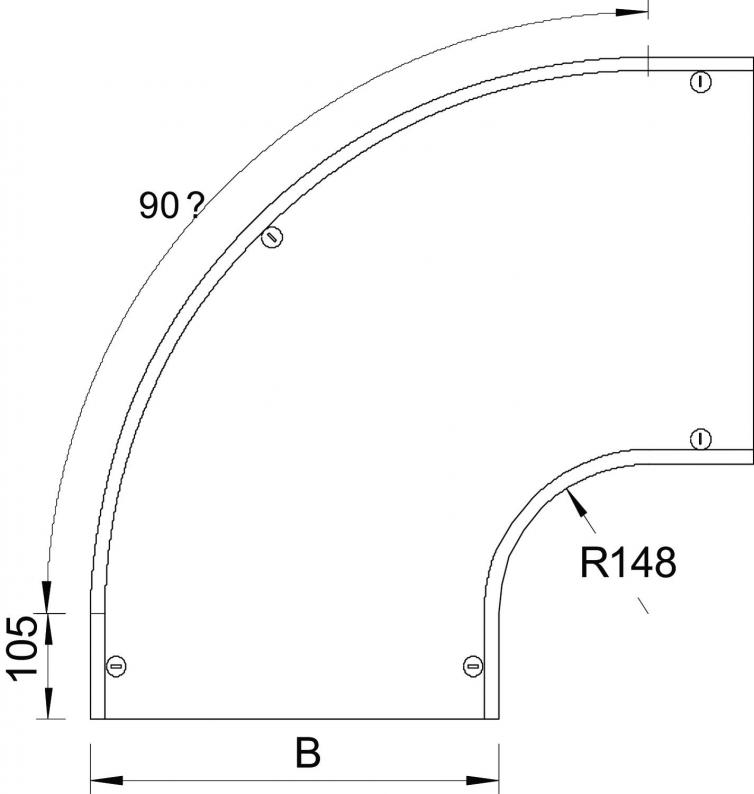

Dimensions
| Width | 600 mm |
|---|---|
| Height | 35 mm |
| Dimension B | 600 mm |
| Dimension H | 15 mm |
| Dimension R | 148 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| Number of turn buckles | 5 St. |
| Bend (angle) | 90° |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Hinged | no |
| Change of direction | Horizontal |
| Fastening type | Sash lock |
| Dimension | B600mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Plate thickness
Item no.
DFB 90 400 A2
400
1,25
7134932
DFB 90 500 A2
500
1,25
7134940
DFB 90 600 A2
600
1,25
7134967
Width
DFB 90 400 A2
Item no.
7134932
Width
400
Plate thickness
1,25
DFB 90 500 A2
Item no.
7134940
Width
500
Plate thickness
1,25
DFB 90 600 A2
Item no.
7134967
Width
600
Plate thickness
1,25
