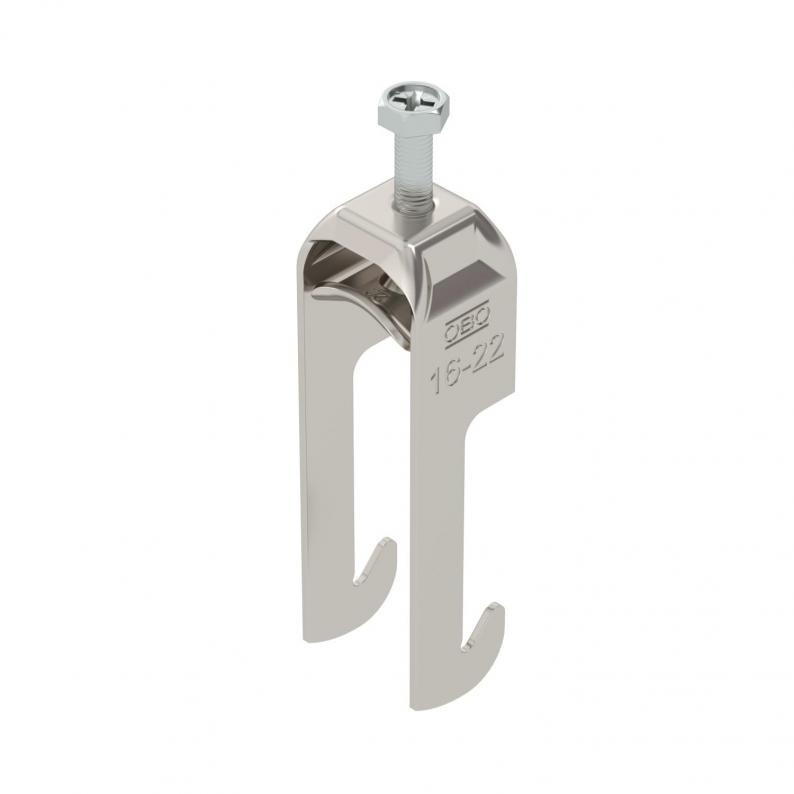

Clamp clip 2056 W-foot, 1-fold, metal pressure sleeve, A2

Item no. 1188014 | EAN 4012196855735

Product description

Product description

Clamp clip with W-foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on angle irons < 40 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.


  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Angular steel
  • Bügelschelle für Winkeleisen mit 40 mm Schenkellänge
Technical data

Technical data

Clamping range D, max. 22 mm
Clamping range D, min. 16 mm
Dimension 16-22mm
For pipe diameter, max. 22 mm
For pipe diameter, min. 16 mm
Halogen-free yes
Length of external dimensions 28 mm
Material Stainless steel
Material addition Rustproof steel
Material of trough Rustproof steel
Material quality of trough Stainless steel 304 (1.4301)
Max. Tightening torque 3 Nm
Mounting type Angle profile
Number of cables/pipes 1
Plate thickness 1,5 mm
Slot width 10 mm
Surface Bright, treated
Surface addition Untreated
Thread M6
With counter-trough no
With metal trough yes

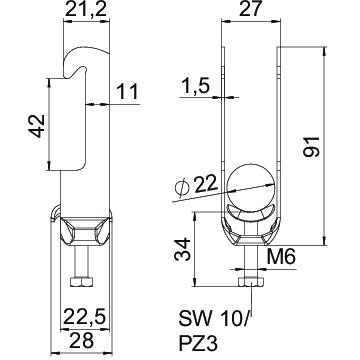

Dimensions

Dimension A 22,5 mm
Dimension B 27 mm
Dimension C 28 mm
Dimension G (mm) M6
Dimension H 91 mm
Dimension L 34 mm
Dimension t 1,5 mm
Height 91 mm
Length 22,5 mm
Width 27 mm
All types

All types

Types Clamping range D, min. Clamping range D, max. Max. Tightening torque Item no. Quantity SSU
BS-W1-M-12 A2 8 mm 12 mm 3 Nm 1188002
100 piece
BS-W1-M-16 A2 12 mm 16 mm 3 Nm 1188008
100 piece
BS-W1-M-22 A2 16 mm 22 mm 3 Nm 1188014
100 piece
BS-W1-M-46 A2 40 mm 46 mm 5 Nm 1188038
100 piece
BS-W1-M-52 A2 46 mm 52 mm 5 Nm 1188044
100 piece
BS-W1-M-58 A2 52 mm 58 mm 5 Nm 1188050
50 piece
BS-W1-M-64 A2 58 mm 64 mm 5 Nm 1188056
50 piece
