Underfloor duct MD 3-compartment, duct height 38 mm
Type MD 30038 1.5 C3
|Item no. 7490382
|EAN 4012196511976
Item no. / Type
Length
Width
Height
Material thickness
Number of compartments
Smallest selling unit: 2.5 m
2.5m
m
Description
Underfloor installation duct for routing cables under the screed.
Technical data

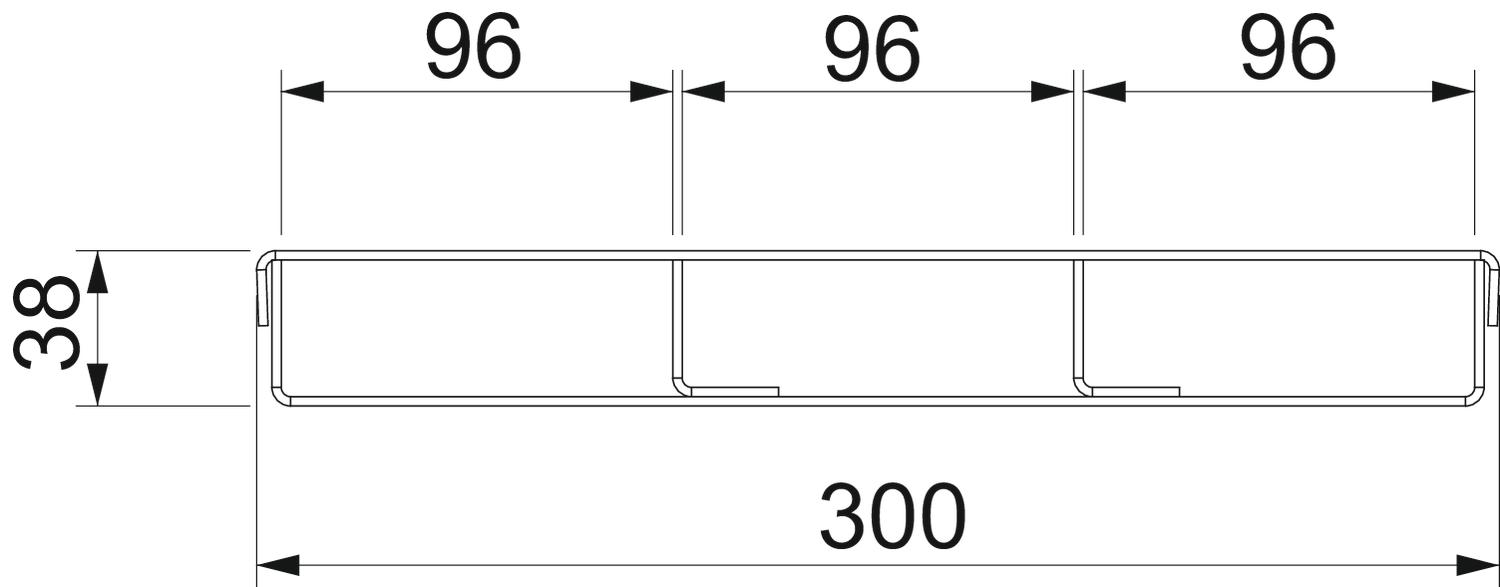

Dimensions
| Length | 2500 mm |
|---|---|
| Width | 300 mm |
| Height | 38 mm |
| Dimension b | 96 mm |
| Dimension a | 96 mm |
| Dimension c | 96 mm |
| Dimension h | 38 mm |
Technical data
| Material thickness | 1,5 mm |
|---|---|
| Number of compartments | 3 St. |
| Trunking width, min. | 300 mm |
| Application area | Screed-covered |
| Duct height, min. | 38 mm |
| Dimension | 300x38x2500 |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Length
Width
Height
Material thickness
Number of compartments
Item no.
MD 20038 1.5C3
2500
200
38
1,5
3
7490358
MD 22538 1.5C3
2500
225
38
1,5
3
7490362
MD 25038 1.5C3
2500
250
38
1,5
3
7490372
MD 30038 1.5 C3
2500
300
38
1,5
3
7490382
Width
MD 20038 1.5C3
Item no.
7490358
Length
2500
Width
200
Height
38
Material thickness
1,5
Number of compartments
3
MD 22538 1.5C3
Item no.
7490362
Length
2500
Width
225
Height
38
Material thickness
1,5
Number of compartments
3
MD 25038 1.5C3
Item no.
7490372
Length
2500
Width
250
Height
38
Material thickness
1,5
Number of compartments
3
MD 30038 1.5 C3
Item no.
7490382
Length
2500
Width
300
Height
38
Material thickness
1,5
Number of compartments
3
