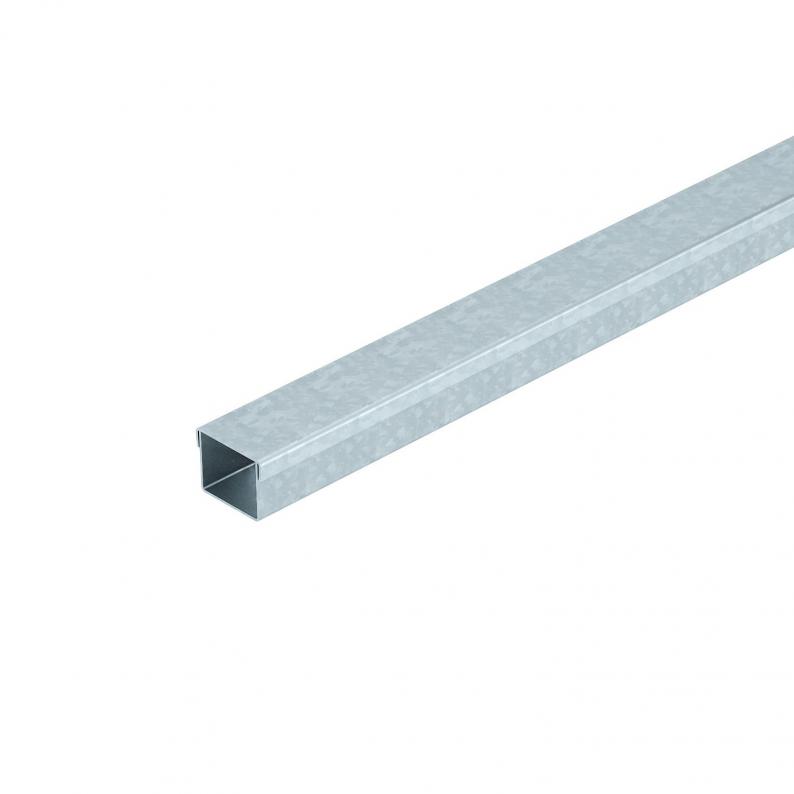

Underfloor duct MD 1-compartment, duct height 38 mm
Type MD 5038 1.6 C1
|Item no. 7490304
|EAN 4012196949304
Item no. / Type
Length
Width
Height
Material thickness
Number of compartments
Smallest selling unit: 2.5 m
2.5m
m
Description
Underfloor installation duct for routing cables under the screed.
Technical data

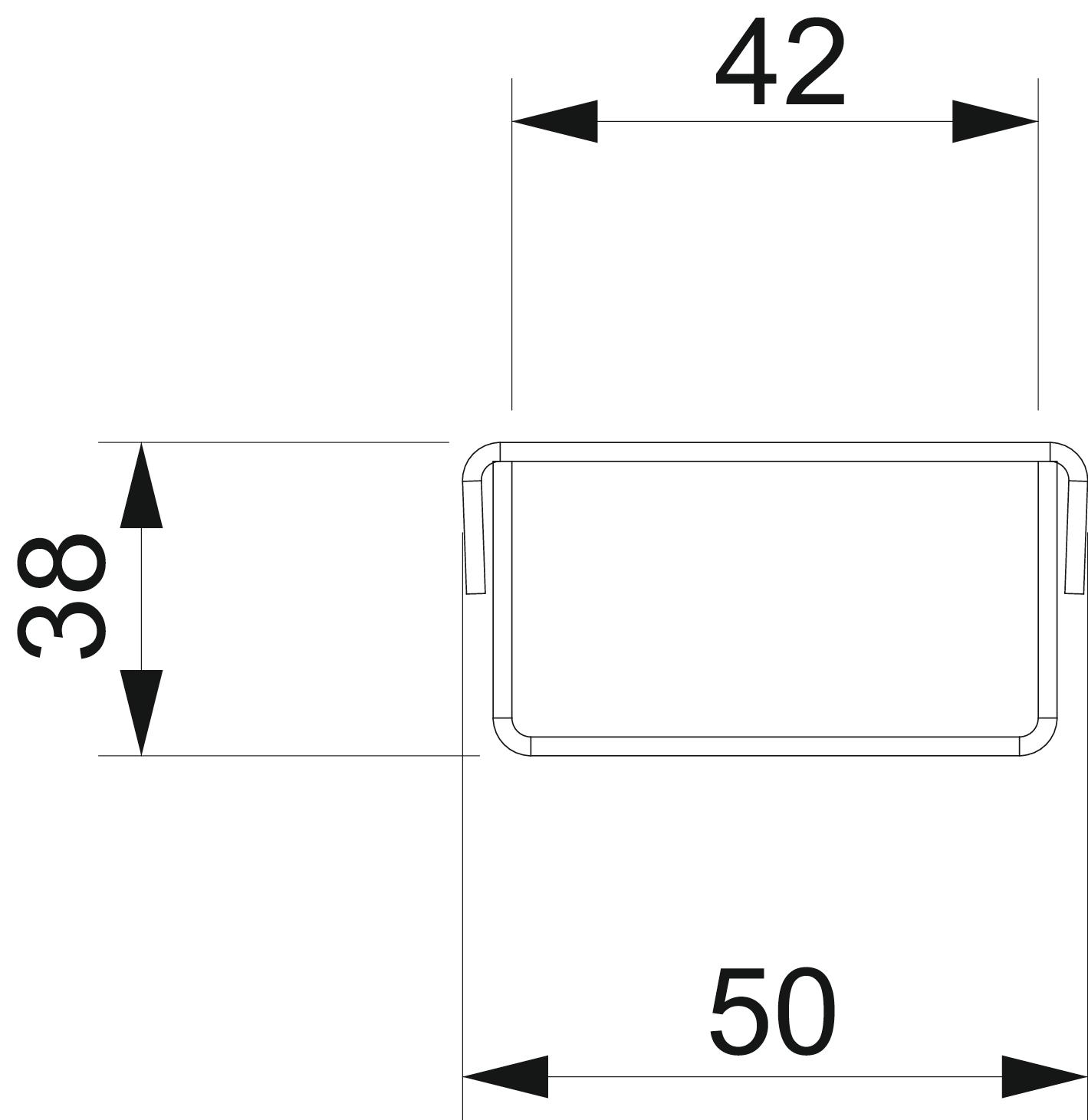

Dimensions
| Length | 2500 mm |
|---|---|
| Width | 50 mm |
| Height | 38 mm |
| Dimension a | 42 mm |
| Dimension h | 38 mm |
Technical data
| Material thickness | 1,6 mm |
|---|---|
| Number of compartments | 1 St. |
| Application area | Screed-covered |
| Duct height, min. | 38 mm |
| Dimension | 50x38x2500 |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Product images (2)
Tender specifications (1)
Variants
Type
Length
Width
Height
Material thickness
Number of compartments
Item no.
MD 5038 1.5C1
2500
50
38
1,5
1
7490302
MD 7538 1.5C1
2500
75
38
1,5
1
7490312
MD 10038 1.5C1
2500
100
38
1,5
1
7490326
MD 15038 1.5C1
2500
150
38
1,5
1
7490336
MT 10038 2+1.6C1
2500
100
38
1,6
1
7490325
MT 20038 2+1.6C1
2500
200
38
1,6
1
7490355
MD 5038 1.6 C1
2500
50
38
1,6
1
7490304
Width
Material thickness
MD 5038 1.5C1
Item no.
7490302
Length
2500
Width
50
Height
38
Material thickness
1,5
Number of compartments
1
MD 7538 1.5C1
Item no.
7490312
Length
2500
Width
75
Height
38
Material thickness
1,5
Number of compartments
1
MD 10038 1.5C1
Item no.
7490326
Length
2500
Width
100
Height
38
Material thickness
1,5
Number of compartments
1
MD 15038 1.5C1
Item no.
7490336
Length
2500
Width
150
Height
38
Material thickness
1,5
Number of compartments
1
MT 10038 2+1.6C1
Item no.
7490325
Length
2500
Width
100
Height
38
Material thickness
1,6
Number of compartments
1
MT 20038 2+1.6C1
Item no.
7490355
Length
2500
Width
200
Height
38
Material thickness
1,6
Number of compartments
1
MD 5038 1.6 C1
Item no.
7490304
Length
2500
Width
50
Height
38
Material thickness
1,6
Number of compartments
1
