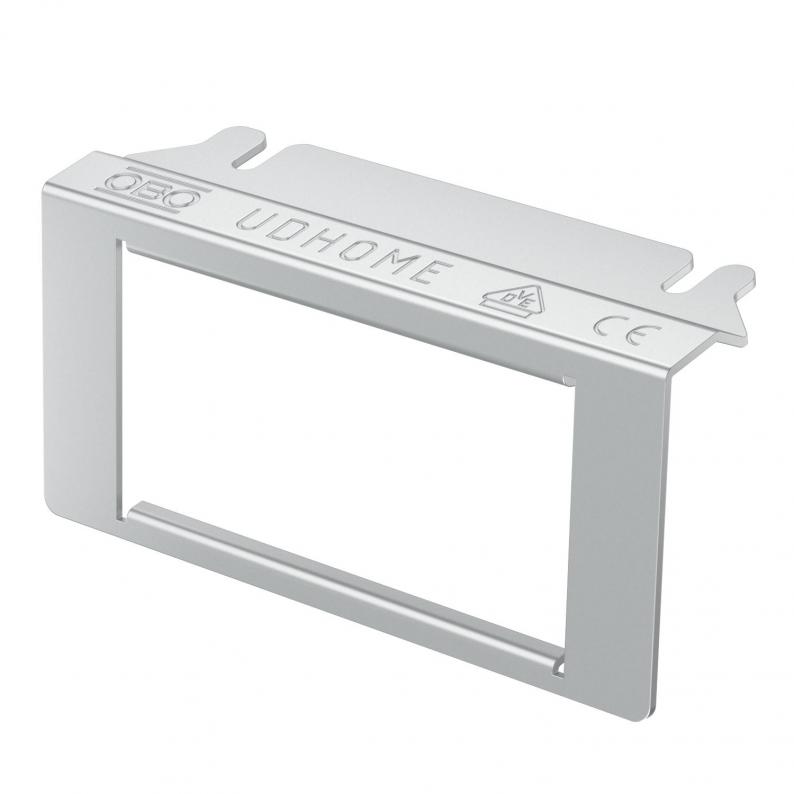

UDHOME-ONE mounting support for 2 Modul 45® installation devices
Type MT UH1 2M45
|Item no. 7368485
|EAN 4012197276287
Item no. / Type
7368485 / MT UH1 2M45
Smallest selling unit: 1 piece
1piece
piece
Description
Mounting support to accept up to 2 Modul 45® installation devices. Dimensions of the mounting opening: 37 x 85 mm.
When used with a protective contact socket/NF socket in the UDHOME-ONE with floor covering recess, an angular connector can only be used with an installation height of at least 90 mm. Use straight connectors for lower installation heights.
When used with a protective contact socket/NF socket in the UDHOME-ONE with floor covering recess, an angular connector can only be used with an installation height of at least 90 mm. Use straight connectors for lower installation heights.
Technical data

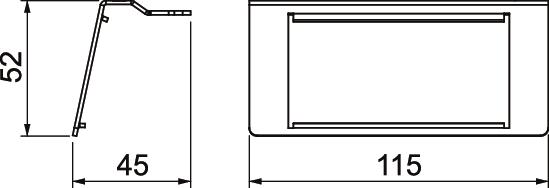

Dimensions
| Length | 115 mm |
|---|---|
| Width | 46,3 mm |
| Height | 52,2 mm |
Technical data
| Labelling panel | no |
|---|---|
| Device type | Grid M45 |
| Number of installable devices | 2 |
| Suitable for wet care | no |
| Installation technology | Grid M45 |
| Heavy-duty version | no |
| Fastening type | Lockable |
| Dimension | 45x52x115 |
| Material | Stainless steel |
Environmental Data
0,7307 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7307 kg CO2e / 1 Piece |
|---|
