Truss-head bolt with nut and washer F
Type FRS 8x16 F 8.8
|Item no. 6406963
|EAN 4012196201259
Item no. / Type
Length
Surface
Hot galvanized
Material
Steel
Smallest selling unit: 50 piece
50piece
piece
Description

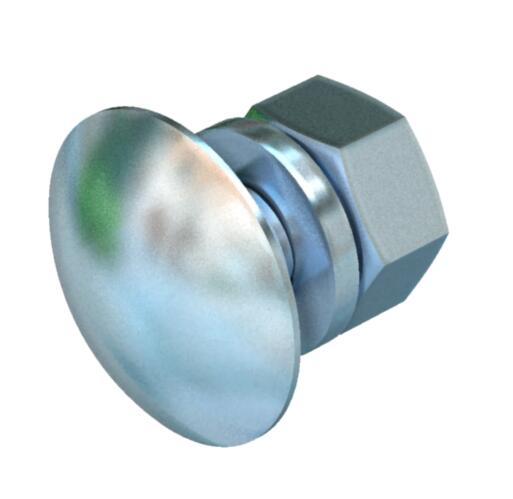

Truss-head bolt with square neck including hexagonal nut and washer.
Quality 8.8
Technical data

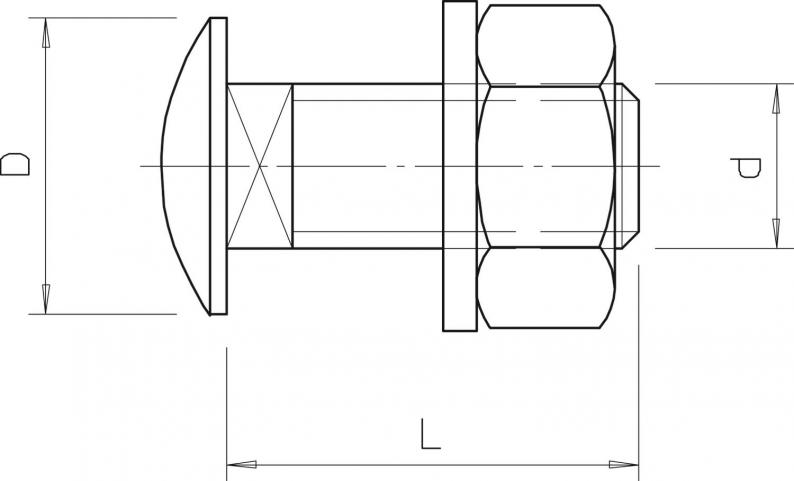

Dimensions
| Length | 16 mm |
|---|---|
| Dimension L | 16 mm |
| Dimension d | 8 mm |
| Dimension D | 20 mm |
Technical data
| Thread metric | 8 |
|---|---|
| Screw system | Miscellaneous |
| Thread type | Metric |
| Resistance grade | 8.8 |
| With washer | yes |
| With nut | yes |
| Self-locking | no |
| With flange | no |
| WAF | 13 |
| Full thread | yes |
| Dimension | M8x16 |
| Surface | Hot galvanized |
| Material | Steel |
| Colour | zinc |
| Left thread | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0555 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Length
Surface
Material
Item no.
FRS 8x16 F 8.8
16
Hot galvanized
Steel
6406963
FRS 8x25 F
25
Hot galvanized
Steel
6406998
FRS 10x25 F 8.8
25
Hot galvanized
Steel
6407560
Length
FRS 8x16 F 8.8
Item no.
6406963
Length
16
Surface
Hot galvanized
Material
Steel
FRS 8x25 F
Item no.
6406998
Length
25
Surface
Hot galvanized
Material
Steel
FRS 10x25 F 8.8
Item no.
6407560
Length
25
Surface
Hot galvanized
Material
Steel
