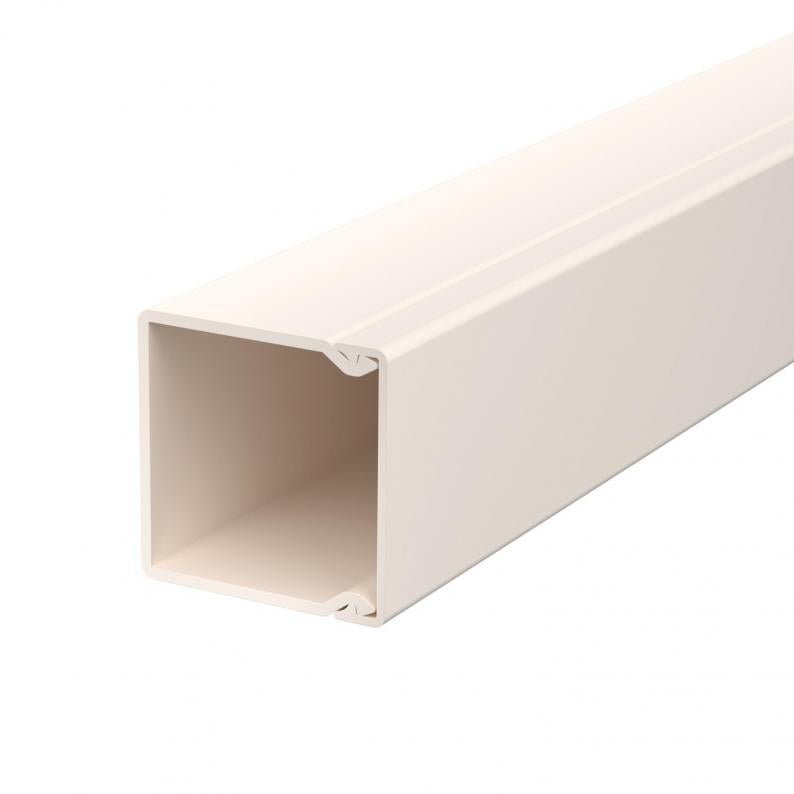

Trunking, type WDK 40040
Type WDK40040CW
|Item no. 6025412
|EAN 4012196028870
Item no. / Type
6025412 / WDK40040CW
Length
2000 mm
Width
40 mm
Height
40 mm
Colour
Cream; RAL 9001
Smallest selling unit: 36 m
36m
m
Description
Trunking cover and base with base perforation.
Technical data
Dimensions
| Length | 2000 mm |
|---|---|
| Width | 40 mm |
| Height | 40 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) | 7 |
| Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket) | 5 |
| Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket) | 6 |
| Usable cross-section | 1314 mm² |
| Halogen-free | no |
| Number of fixed partitions | 0 |
| Number of insertable partitions | 0 |
| Cable retaining clip | no |
| Protective film | no |
| Duct connector | no |
| Protection rating | IP30 |
| Delivery on a roll | no |
| Protection rating IK code | IK04 |
| Fastening type | Base perforation |
| Version, cable trunking cover | Loose |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 40x40x2000 |
| Material | Polyvinylchloride |
| Colour | Cream; RAL 9001 |
| Antibacterial treatment | no |
Environmental Data
0,8114 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,8114 kg CO2e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
WDK HI40040CW
6160093
Smallest selling unit: 4 piece
4piece
piece
WDK HA40040CW
6160697
Smallest selling unit: 4 piece
4piece
piece
WDK HF40040CW
6161294
Smallest selling unit: 4 piece
4piece
piece
Item no. 6162592
End piece, trunking type WDK 40040Type
WDK HE40040CW
Smallest selling unit: 10 piece
10piece
piece
Item no. 6160093
Internal corner cover, trunking type WDK 40040Type
WDK HI40040CW
Smallest selling unit: 4 piece
4piece
piece
Item no. 6160697
External corner cover, trunking type WDK 40040Type
WDK HA40040CW
Smallest selling unit: 4 piece
4piece
piece
