TP profile FS

TP profile FS

Type TPSG 3000 FS
|
Item no. 6366090
|
EAN 4012196079032
Show all variants
Item no. / Type
6366090 / TPSG 3000 FS

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

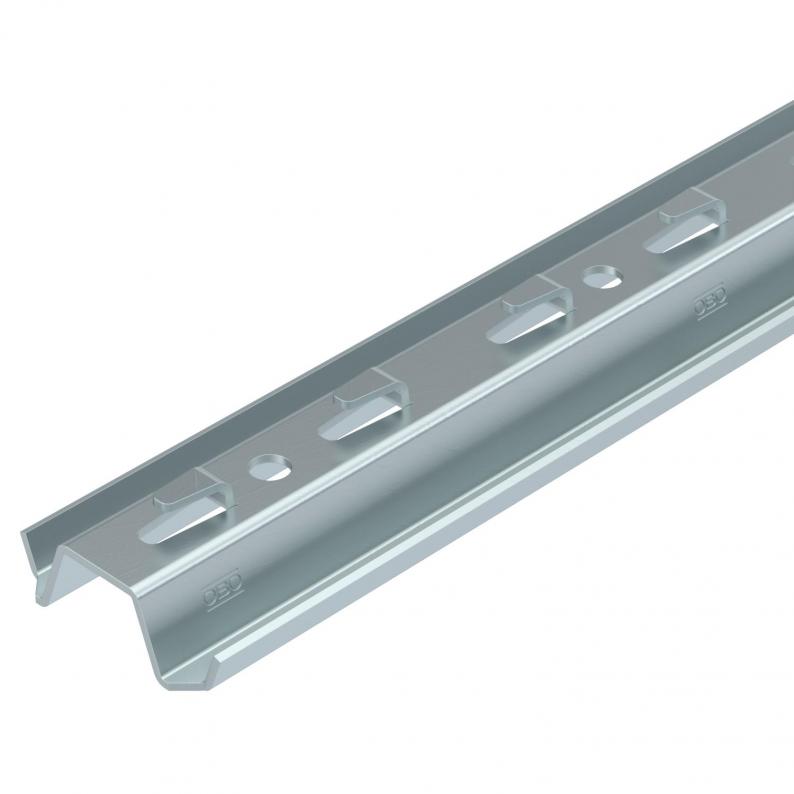

TP profile with clamping lugs.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • TP profile and suspended support and bracket
  • CO₂ footprint (PCF)

Technical data

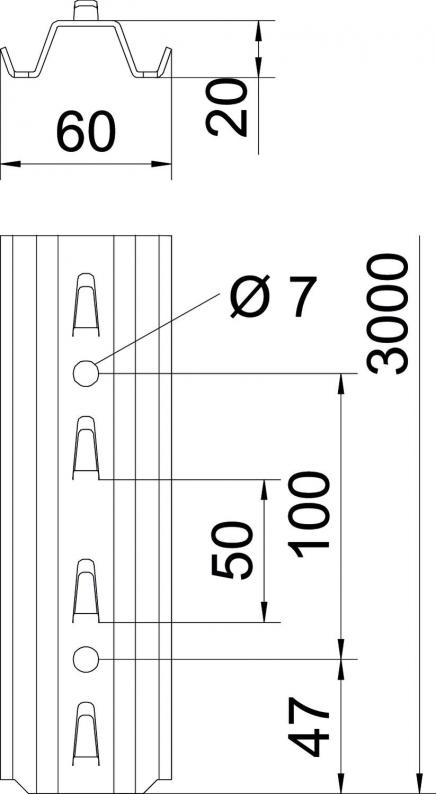

Dimensions

Length3000 mm
Width60 mm
Height20 mm

Technical data

Maintain electrical functionsno
Plate thickness2 mm
Type of perforationWithout
Breakableno
With toothingno
Version forSingle profile
Profile shapeFlat profile
Dimension3000mm
SurfaceStrip galvanized
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate9,6931 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Variants

TPSG 3000 FS
Item no.
6366090
Length
3000
Plate thickness
2
