T branch piece, horizontal 100 FS
Type GKST 115 FS
|Item no. 6480482
|EAN 4012195488897
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 1 piece
1piece
piece
Description

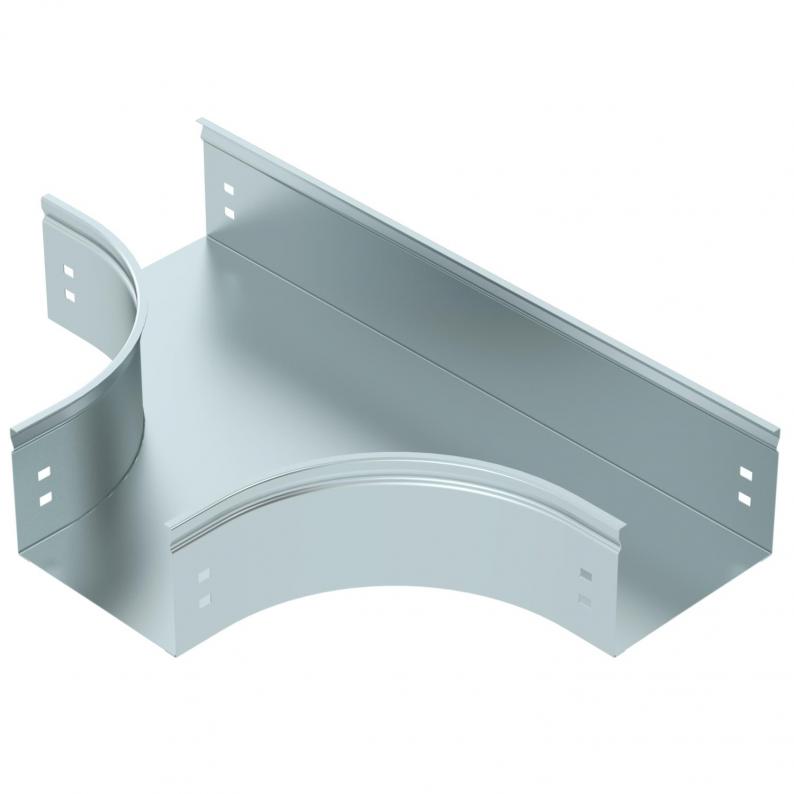

Horizontal tee for all GKS... cable tray types with a side height of 100 mm.
Technical data

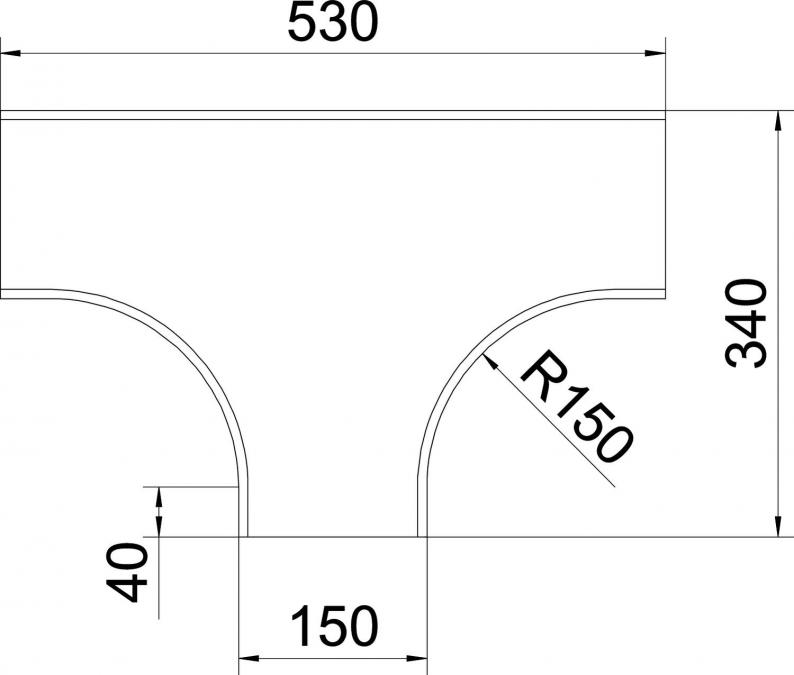

Dimensions
| Width | 150 mm |
|---|---|
| Height | 100 mm |
| Dimension B | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| NATO hole pattern | no |
| Type | T piece horizontal |
| Dimension | 100x150 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Item no.
GKST 115 FS
150
Strip galvanized
Steel
6480482
GKST 120 FS
200
Strip galvanized
Steel
6480483
GKST 130 FS
300
Strip galvanized
Steel
6480484
GKST 140 FS
400
Strip galvanized
Steel
6480485
GKST 150 FS
500
Strip galvanized
Steel
6480486
Width
GKST 115 FS
Item no.
6480482
Width
150
Surface
Strip galvanized
Material
Steel
GKST 120 FS
Item no.
6480483
Width
200
Surface
Strip galvanized
Material
Steel
GKST 130 FS
Item no.
6480484
Width
300
Surface
Strip galvanized
Material
Steel
GKST 140 FS
Item no.
6480485
Width
400
Surface
Strip galvanized
Material
Steel
GKST 150 FS
Item no.
6480486
Width
500
Surface
Strip galvanized
Material
Steel
