T branch piece 60 FS
Type RT 640 FS
|Item no. 7003390
|EAN 4012196214150
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 1 piece
1piece
piece
Description

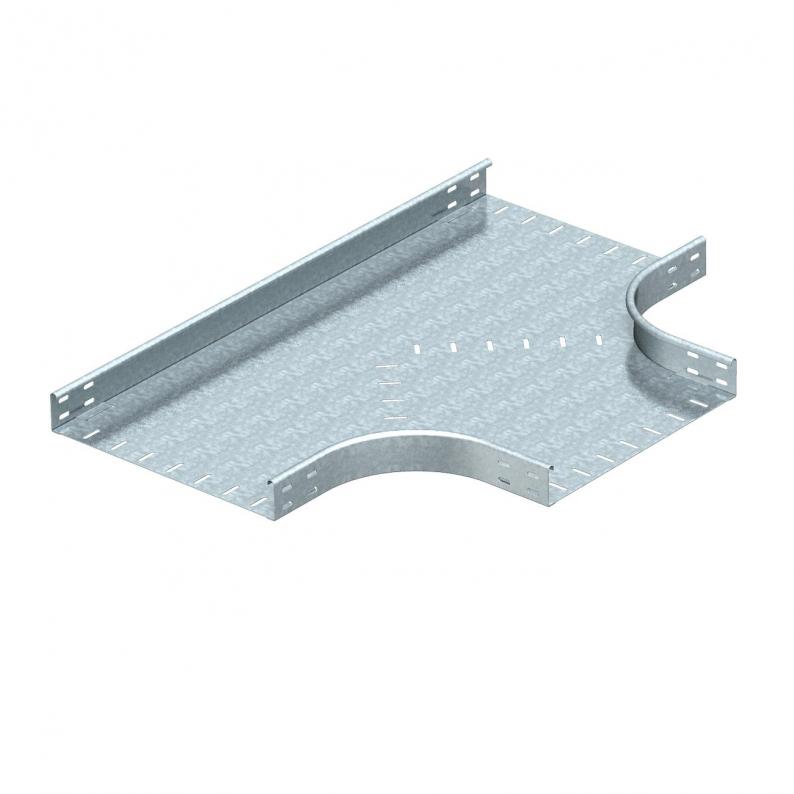

Horizontal T branch piece, for all cable tray types of 60 mm side height.
Fitting in round design. The interior radius of the fitting is 150 mm. All the sides are designed for the same cable tray width.
Fastening materials should be ordered separately.
Technical data

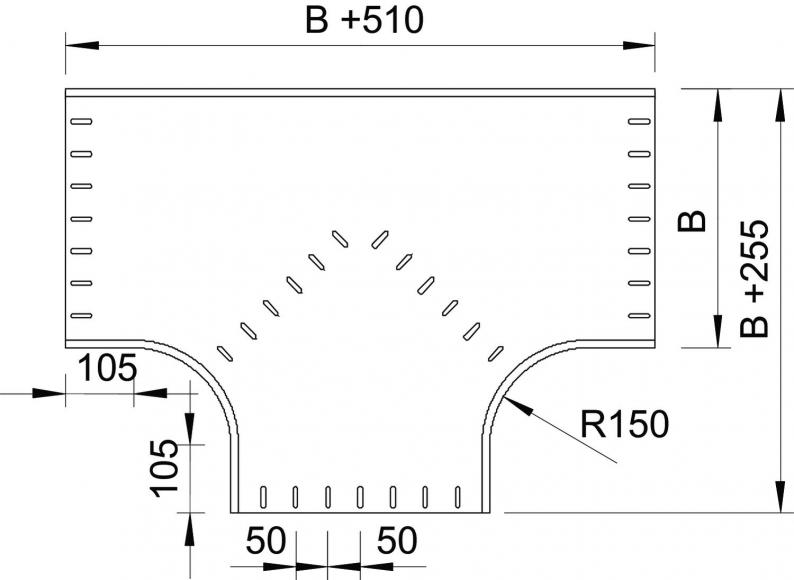

Dimensions
| Width | 400 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 400 mm |
| Dimension R | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Type | T piece horizontal |
| Rail thickness | 1,5 mm |
| Dimension | 60x400 |
| Surface | Strip galvanized |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Item no.
RT 640 FS
400
Strip galvanized
Steel
7003390
RT 650 FS
500
Strip galvanized
Steel
7003412
RT 660 FS
600
Strip galvanized
Steel
7003439
Width
RT 640 FS
Item no.
7003390
Width
400
Surface
Strip galvanized
Material
Steel
RT 650 FS
Item no.
7003412
Width
500
Surface
Strip galvanized
Material
Steel
RT 660 FS
Item no.
7003439
Width
600
Surface
Strip galvanized
Material
Steel
