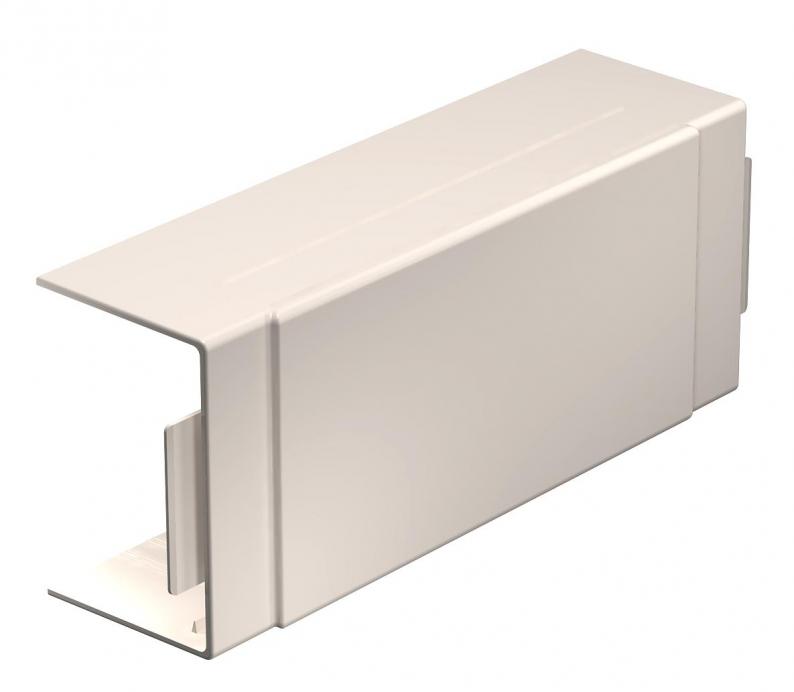

T and intersection cover, for trunking type WDK 60090

T and intersection cover, for trunking type WDK 60090

Type WDK HK60090CW
|
Item no. 6162215
|
EAN 4012196109036
Show all variants
Item no. / Type
6162215 / WDK HK60090CW
Colour
Cream; RAL 9001

Smallest selling unit: 2 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length230 mm
Width94 mm
Height60 mm
Dimension H90 mm
Dimension b94 mm
Dimension a230 mm

Technical data

Maintain electrical functionsno
for duct dimension60 x 90
Protection ratingIP30
Protection rating IK codeIK04
Version forHood fitting
Fastening typeLockable
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension60x90mm
MaterialPolyvinylchloride
ColourCream; RAL 9001
Antibacterial treatmentno
CO2 Footprint (GWP) Cradle-to-Gate0,3394 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

WDK HK60090CW
Item no.
6162215
Dimension H
90
Dimension b
94
Dimension a
230
Colour
Cream; RAL 9001
