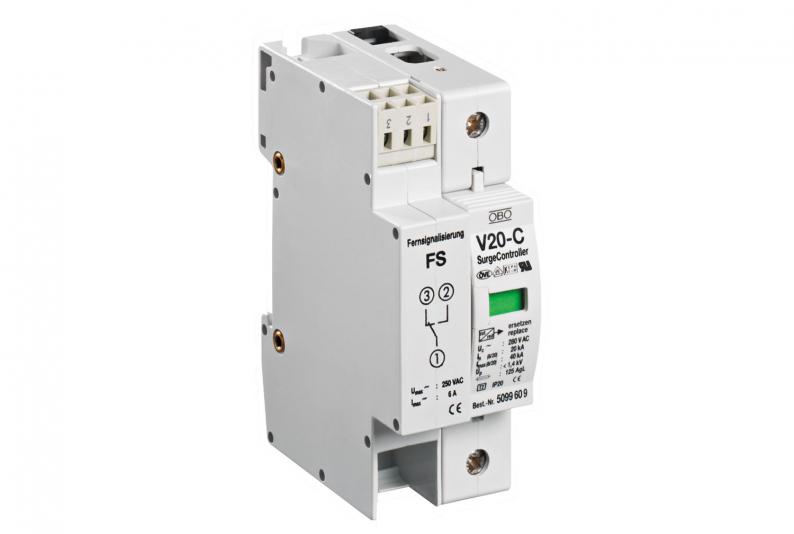

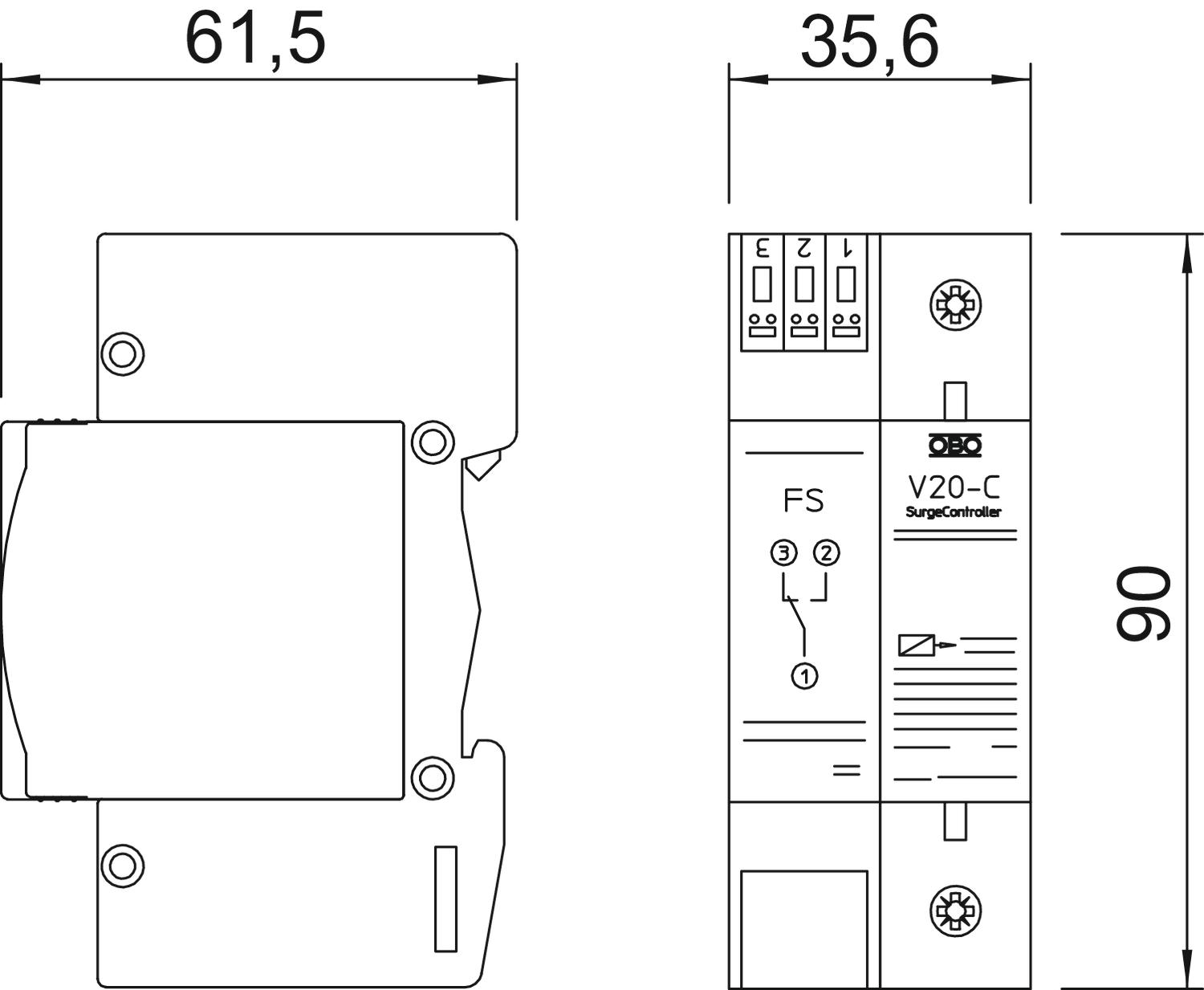

Surge arrester V20 1+FS 320 V
Type V20-C 1+FS-320-A
|Item no. 5096057
|EAN 4012195024170
Item no. / Type
Maximum continuous voltage AC
Pole version
Protection rating
IP20
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description
Surge arrester type 2, 320 V
• With remote signalling, potential-free change-over contact, for function monitoring
• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Arresting capacity to 40 kA (8/20) per pin
• Arrester, connectable with dynamic cut-off unit and visual function display
• High-performance varistor technology
Application: Equipotential bonding (LPZ 1 to 2) in main and sub-distributors.
* Complete = cover and base
• With remote signalling, potential-free change-over contact, for function monitoring
• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Arresting capacity to 40 kA (8/20) per pin
• Arrester, connectable with dynamic cut-off unit and visual function display
• High-performance varistor technology
Application: Equipotential bonding (LPZ 1 to 2) in main and sub-distributors.
* Complete = cover and base
Technical data
Technical data
| Network form | TN |
|---|---|
| Signalling on device | Visual |
| Protection rating | IP20 |
| Nominal discharge current (8/20 µs) [L-N] | 20 kA |
| Remote signalling | yes |
| Test class, type 2 | yes |
| Nominal voltage AC (50/60 Hz) | 320 V |
| Integrated back-up fuse | no |
| Maximum continuous voltage AC | 320 V |
| Nominal discharge current (8/20 µs) | 20 kA |
| Pole version | 1 |
| Installation type | DIN rail 35 mm |
| Max. mains-side overcurrent protection | 125 |
| Version for | 1-pole |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 80 °C |
| SPD to IEC 61643-1 | Class II |
| SPD to EN 61643-11 | Type 2 |
| Lightning protection zone LPZ | 1→2 |
| Maximum discharge current (8/20 μs) | 40 kA |
| Response time | <25 ns |
| Maximum back-up fuse | 125 A |
| Permitted temperature range, min. | -40 °C |
| Permitted temperature range, max. | 80 °C |
| Dimension | 320V |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4709 kg CO₂e / 1 Piece |
Connectivity options
| Arrester surge current (8/20 µs) [total] | 20 kA |
|---|---|
| Conductor cross-section, rigid (single-wire/multiwire), min. | 2,5 mm² |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (2)
Certificates (5)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Protection rating
Maximum continuous voltage AC
Pole version
Item no.
V20-1+FS-320
IP20
320
1
5095291
V20-3+FS-320
IP20
320
3
5095293
V20-C 1+FS-320-A
IP20
320
1
5096057
Pole version
V20-1+FS-320
Item no.
5095291
Protection rating
IP20
Maximum continuous voltage AC
320
Pole version
1
V20-3+FS-320
Item no.
5095293
Protection rating
IP20
Maximum continuous voltage AC
320
Pole version
3
V20-C 1+FS-320-A
Item no.
5096057
Protection rating
IP20
Maximum continuous voltage AC
320
Pole version
1
