Support clamp, for pipes, open/side
Type BCC 2-4 D24
|Item no. 1483919
|EAN 4012196503445
Item no. / Type
Pipe/cable diameter, min.
Pipe/cable diameter, max.
Flange thickness F min.
Flange thickness F max.
This item is a discontinued product!
Smallest selling unit: 100 piece
100piece
piece
Description
Beam clamp for knocking in for cables as individual fastening solution on the beam.
Technical data
Technical data
| Hinged | no |
|---|---|
| Hinge, adjustable | no |

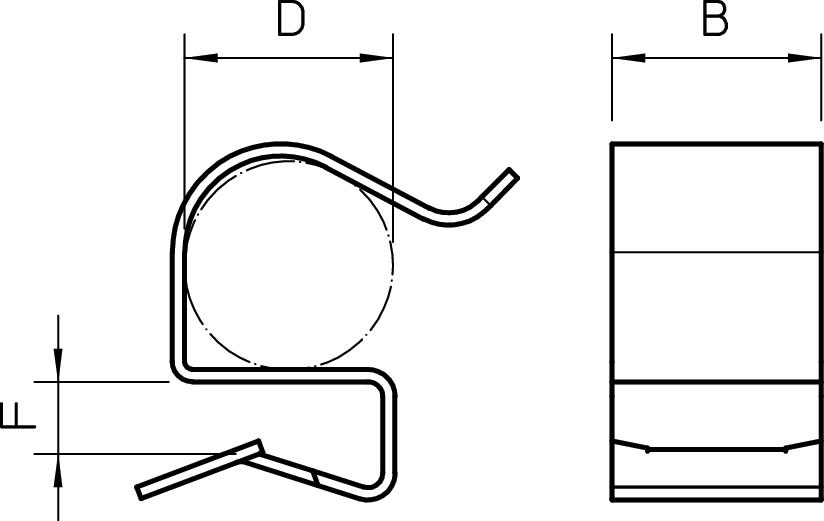

| Pipe/cable diameter, min. | 19 mm |
| Pipe/cable diameter, max. | 24 mm |
| Fastening type | Clamp |
| Connection type/component | Pipe/cable |
| Flange thickness F min. | 2 mm |
| Flange thickness F max. | 4 mm |
| Dimension | 2-4mm |
| Surface | Zinc slat |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Pipe/cable diameter, min.
Pipe/cable diameter, max.
Flange thickness F min.
Flange thickness F max.
Item no.
BCC 2-4 D14
12
14
2
4
1483911
BCC 2-4 D18
15
18
2
4
1483915
BCC 2-4 D24
19
24
2
4
1483919
BCC 2-4 D30
25
30
2
4
1483923
BCC 4-7 D14
12
14
4
7
1483941
BCC 4-7 D18
15
18
4
7
1483945
BCC 4-7 D24
19
24
4
7
1483951
BCC 4-7 D30
25
30
4
7
1483955
BCC 8-12 D14
12
14
8
12
1483969
BCC 8-12 D18
15
18
8
12
1483973
BCC 8-12 D24
19
24
8
12
1483977
BCC 8-12 D30
25
30
8
12
1483981
Pipe/cable diameter, min.
Pipe/cable diameter, max.
Flange thickness F min.
Flange thickness F max.
BCC 2-4 D14
Item no.
1483911
Pipe/cable diameter, min.
12
Pipe/cable diameter, max.
14
Flange thickness F min.
2
Flange thickness F max.
4
BCC 2-4 D18
Item no.
1483915
Pipe/cable diameter, min.
15
Pipe/cable diameter, max.
18
Flange thickness F min.
2
Flange thickness F max.
4
BCC 2-4 D24
Item no.
1483919
Pipe/cable diameter, min.
19
Pipe/cable diameter, max.
24
Flange thickness F min.
2
Flange thickness F max.
4
BCC 2-4 D30
Item no.
1483923
Pipe/cable diameter, min.
25
Pipe/cable diameter, max.
30
Flange thickness F min.
2
Flange thickness F max.
4
BCC 4-7 D14
Item no.
1483941
Pipe/cable diameter, min.
12
Pipe/cable diameter, max.
14
Flange thickness F min.
4
Flange thickness F max.
7
BCC 4-7 D18
Item no.
1483945
Pipe/cable diameter, min.
15
Pipe/cable diameter, max.
18
Flange thickness F min.
4
Flange thickness F max.
7
BCC 4-7 D24
Item no.
1483951
Pipe/cable diameter, min.
19
Pipe/cable diameter, max.
24
Flange thickness F min.
4
Flange thickness F max.
7
BCC 4-7 D30
Item no.
1483955
Pipe/cable diameter, min.
25
Pipe/cable diameter, max.
30
Flange thickness F min.
4
Flange thickness F max.
7
BCC 8-12 D14
Item no.
1483969
Pipe/cable diameter, min.
12
Pipe/cable diameter, max.
14
Flange thickness F min.
8
Flange thickness F max.
12
BCC 8-12 D18
Item no.
1483973
Pipe/cable diameter, min.
15
Pipe/cable diameter, max.
18
Flange thickness F min.
8
Flange thickness F max.
12
BCC 8-12 D24
Item no.
1483977
Pipe/cable diameter, min.
19
Pipe/cable diameter, max.
24
Flange thickness F min.
8
Flange thickness F max.
12
BCC 8-12 D30
Item no.
1483981
Pipe/cable diameter, min.
25
Pipe/cable diameter, max.
30
Flange thickness F min.
8
Flange thickness F max.
12
