Stop-end 60 FS
Type GKS TC 610 FS
|Item no. 6481271
|EAN 4012195494430
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description

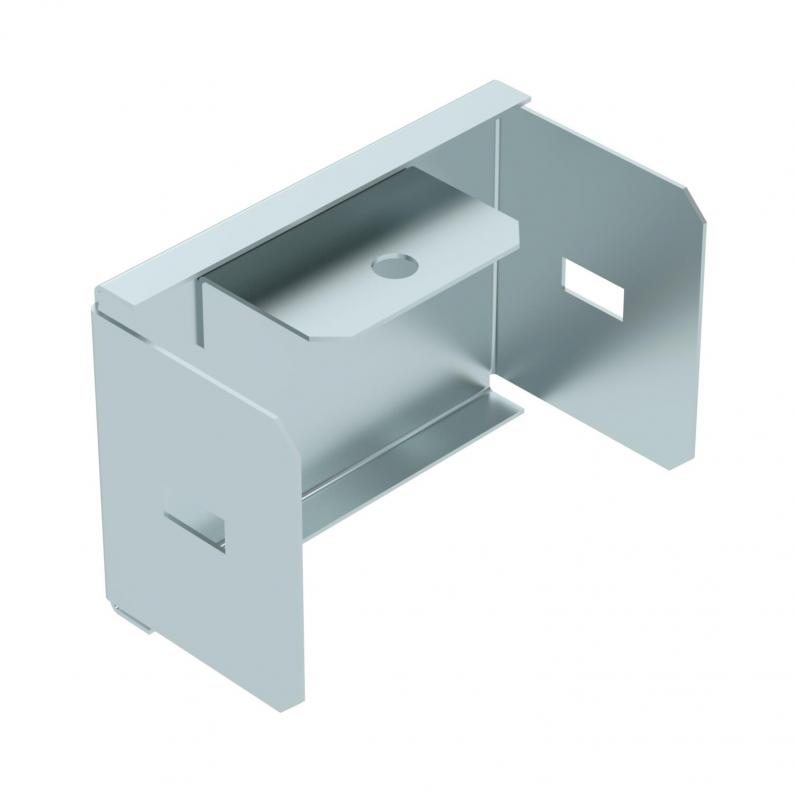

Stop-end to close cable trays of type GKS side height 60 mm.
Including appropriate fastening material.
Technical data

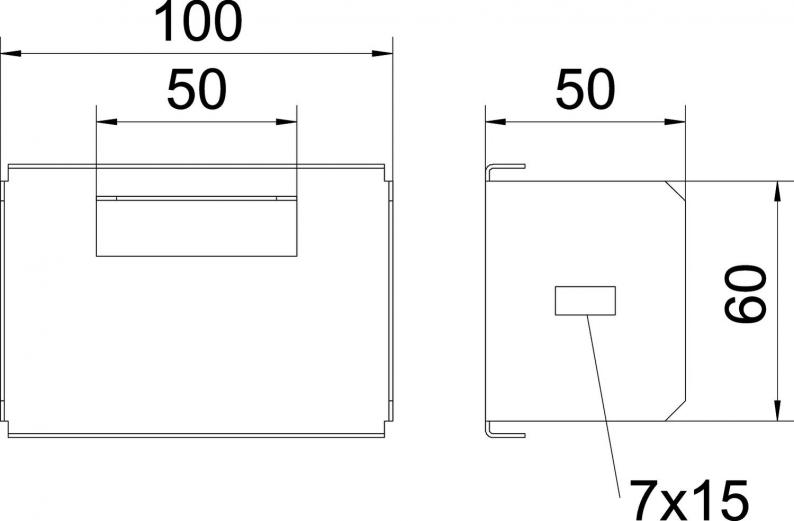

Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 100 mm |
| Dimension H | 60 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Dimension | 60x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Item no.
GKS TC 610 FS
100
6481271
GKS TC 615 FS
150
6481273
GKS TC 620 FS
200
6481275
GKS TC 630 FS
300
6481277
GKS TC 640 FS
400
6481279
GKS TC 650 FS
500
6481281
Width
GKS TC 610 FS
Item no.
6481271
Width
100
GKS TC 615 FS
Item no.
6481273
Width
150
GKS TC 620 FS
Item no.
6481275
Width
200
GKS TC 630 FS
Item no.
6481277
Width
300
GKS TC 640 FS
Item no.
6481279
Width
400
GKS TC 650 FS
Item no.
6481281
Width
500
