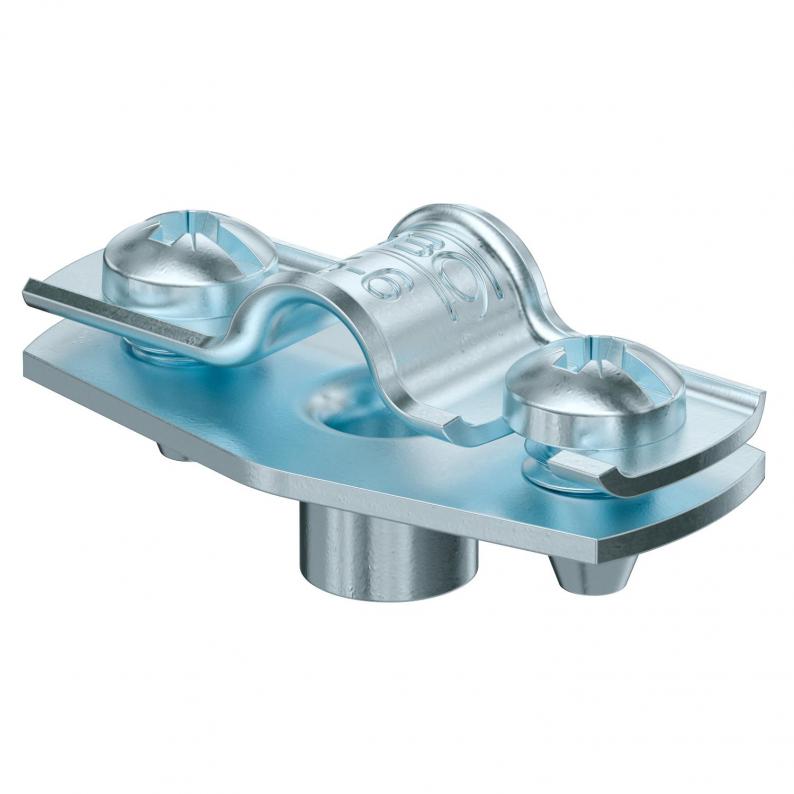

Spacer clip 732 G
Type ASG 732 6 G
|Item no. 1362404
|EAN 4012196599585
Item no. / Type
Material thickness
Clamping range D, min.
Clamping range D, max.
Surface
Electrogalvanized
Material
Steel
Smallest selling unit: 25 piece
25piece
piece
Description
Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via attachment piece with internal thread.
Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
Technical data
Technical data
| Maintain electrical functions | yes |
|---|---|
| Material thickness | 1,25 mm |
| For diameter | 5 - 6 |
| Halogen-free | yes |
| UV-resistant | yes |
| Plastic-covered | no |
| Number of cables/pipes | 1 |
| Distance to the wall | yes |
| Version for | Closed |
| Fastening type | Threaded connection |
| Clamping range D, min. | 5 mm |
| Clamping range D, max. | 6 mm |
| Dimension | 5-6mm |
| Surface | Electrogalvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0473 kg CO2e / 1 Piece |

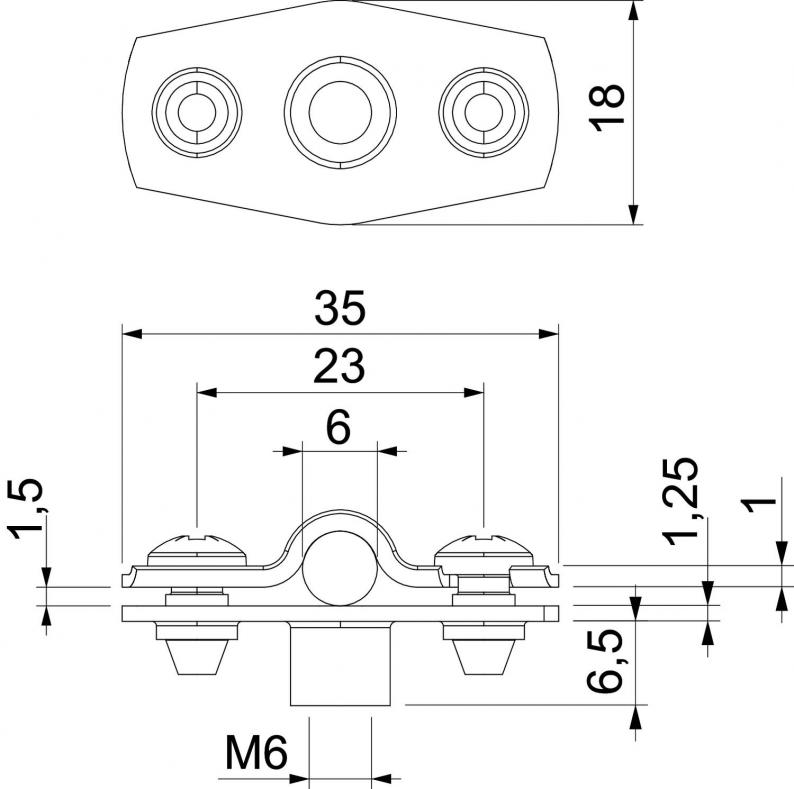

Dimensions
| Dimension A | 35 mm |
|---|---|
| Dimension B | 23 mm |
| Dimension H1 | 6,5 mm |
| Dimension b | 18 mm |
| Dimension x | 1,5 mm |
| Dimension t1 (mm) | 1 |
| Dimension t2 (mm) | 1,25 |
| Dimension D | 6 mm |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (4)
Certificates (5)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Material thickness
Clamping range D, min.
Clamping range D, max.
Surface
Material
Item no.
ASG 732 6 G
1,25
5
6
Electrogalvanized
Steel
1362404
ASG 732 7 G
1,25
6
7
Electrogalvanized
Steel
1362406
ASG 732 8 G
1,25
7
8
Electrogalvanized
Steel
1362408
ASG 732 10 G
1,25
8
10
Electrogalvanized
Steel
1362410
ASG 732 12 G
1,25
10
12
Electrogalvanized
Steel
1362412
ASG 732 14 G
1,25
12
14
Electrogalvanized
Steel
1362414
ASG 732 17 G
1,25
14
17
Electrogalvanized
Steel
1362417
ASG 732 20 G
1,25
17
20
Electrogalvanized
Steel
1362420

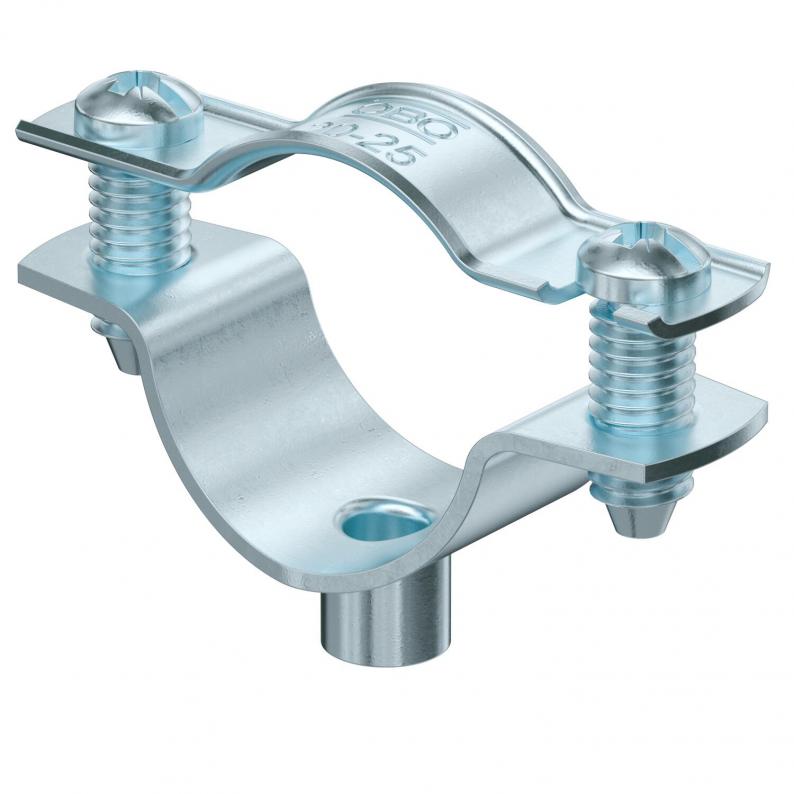

ASG 732 25 G
1,25
20
25
Electrogalvanized
Steel
1362424
ASG 732 30 G
1,5
25
30
Electrogalvanized
Steel
1362428
ASG 732 36 G
1,5
30
36
Electrogalvanized
Steel
1362432
ASG 732 44 G
1,5
36
44
Electrogalvanized
Steel
1362436
ASG 732 53 G
1,5
44
53
Electrogalvanized
Steel
1362440
ASG 732 63 G
1,5
53
63
Electrogalvanized
Steel
1362444
