SLAB BOX for Metal duct system
Type SB 20038 C2
|Item no. 7490272
|EAN 4012196618767
Item no. / Type
Trunking width, min.
Trunking width, max.
Duct height, min.
Trunking height, max.
Smallest selling unit: 1 piece
1piece
piece
Description

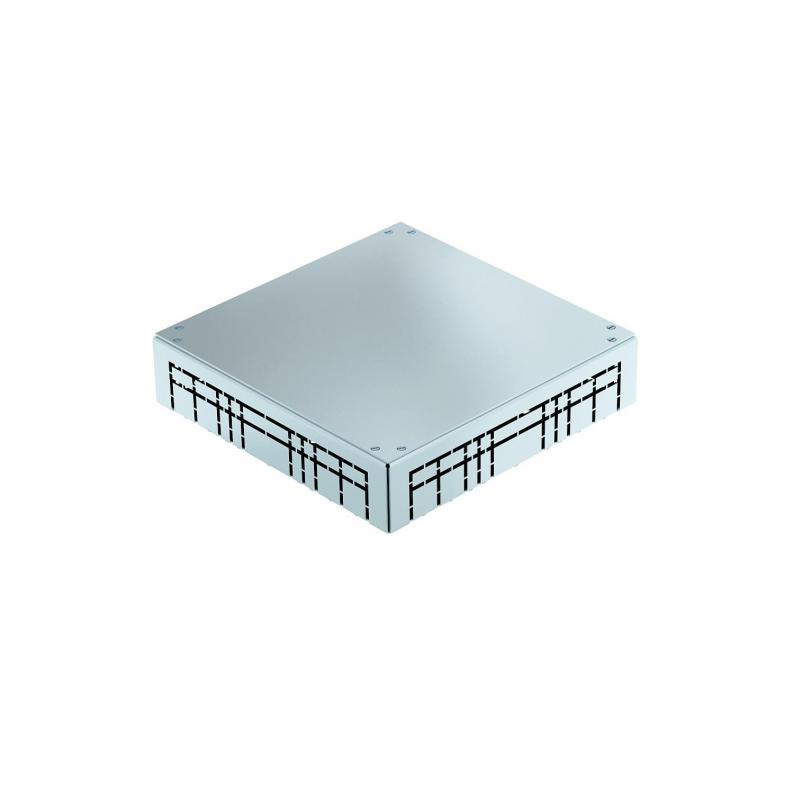

Underfloor junction box for metal ducts in heights of 25 mm and 35 mm.
Technical data

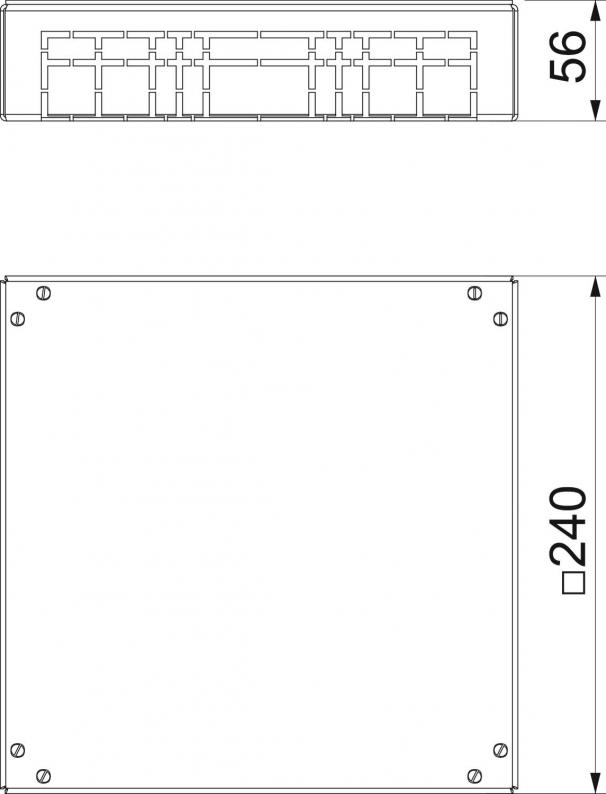

Dimensions
| Length | 240 mm |
|---|---|
| Width | 240 mm |
| Height | 56 mm |
| Dimension h | 62 mm |
Technical data
| Number of compartments | 1 St. |
|---|---|
| Suitable for screed-covered underfloor ducts | yes |
| Trunking width, min. | 60 mm |
| Trunking width, max. | 90 mm |
| Installation opening for on-floor tank | no |
| Decouplable | no |
| Floor plate | yes |
| Depth of floor covering recess | 10 mm |
| Expansion option | For installation of accessories |
| For pipe connection | no |
| Duct height, min. | 25 mm |
| Trunking height, max. | 35 mm |
| Dimension | 240x240x56 |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Product images (2)
Tender specifications (2)
Variants
Type
Trunking width, min.
Trunking width, max.
Duct height, min.
Trunking height, max.
Item no.
SB 10038 C1
60
90
25
35
7490270
SB 20038 C2
60
90
25
35
7490272
SB 30038 C3
60
90
25
35
7490274
SB 10038 C1
Item no.
7490270
Trunking width, min.
60
Trunking width, max.
90
Duct height, min.
25
Trunking height, max.
35
SB 20038 C2
Item no.
7490272
Trunking width, min.
60
Trunking width, max.
90
Duct height, min.
25
Trunking height, max.
35
SB 30038 C3
Item no.
7490274
Trunking width, min.
60
Trunking width, max.
90
Duct height, min.
25
Trunking height, max.
35
