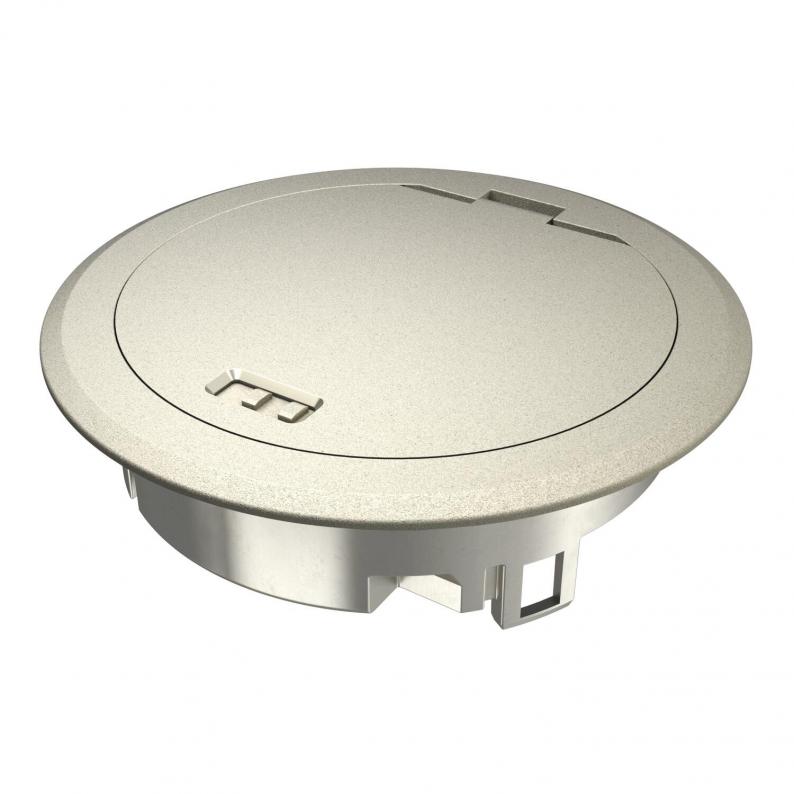

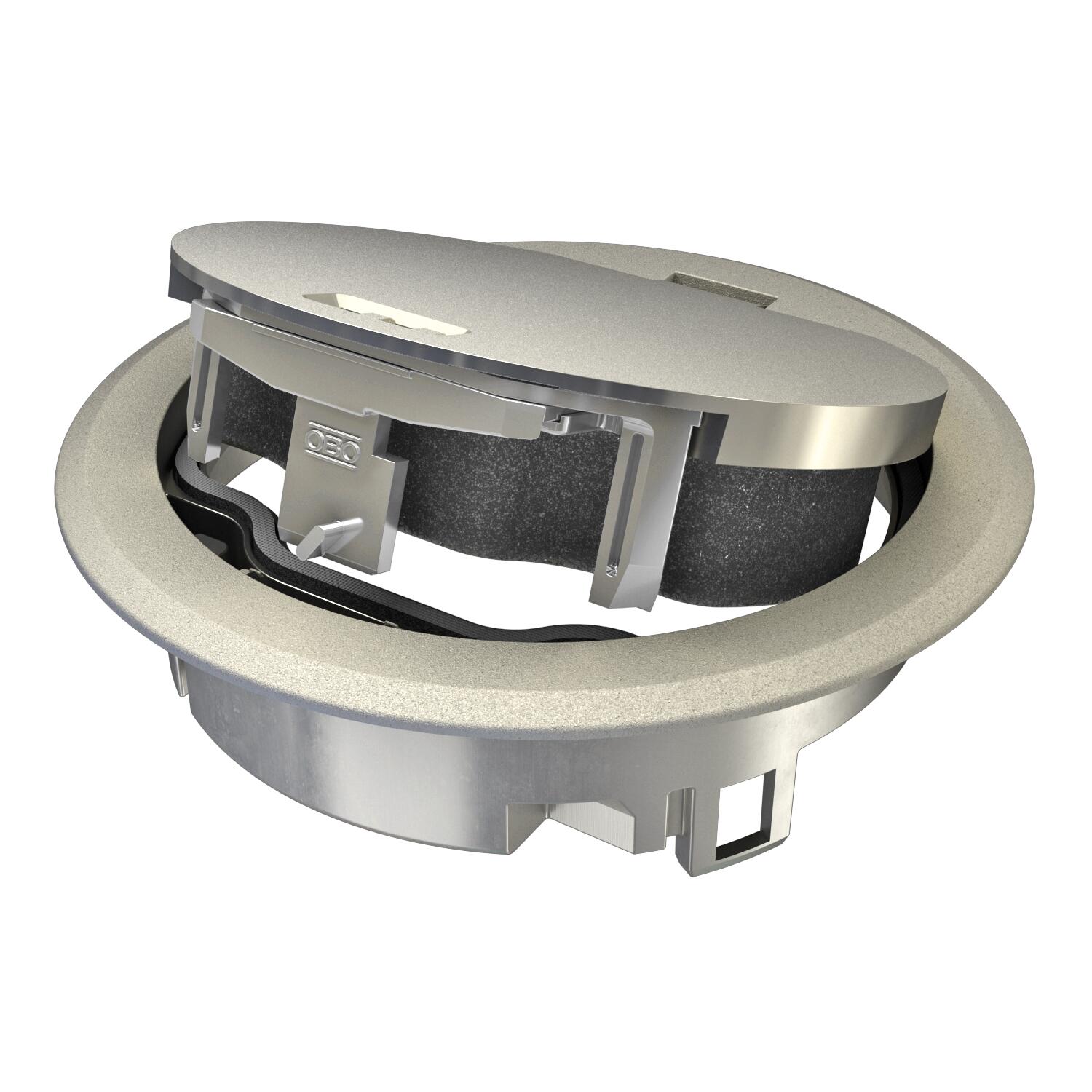

Service outlet with hinged cover and locking slider, GES R2, nickel

Service outlet with hinged cover and locking slider, GES R2, nickel

Type GES R2 Ni
|
Item no. 7408850
|
EAN 4012196459278
Show all variants
Item no. / Type
Floor care
Wet
Protection rating (IP) when unused
IP66
Vertical load, small area
to 3,000 N
Opening mechanism
Locking slider
Material
Die-cast zinc

Smallest selling unit: 1 piece

piece

Description

Service outlet with hinged cover and locking slider for GES R2 floor socket for direct installation in the MT R2 installation socket.

When closed, the floor socket can be wet-cleaned.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 66
  • IK Code 10
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Suitable for underfloor ductsno
Suitable for cavity floor installationyes
Suitable for raised floor installationyes
Floor careWet
Suitable for wet careyes

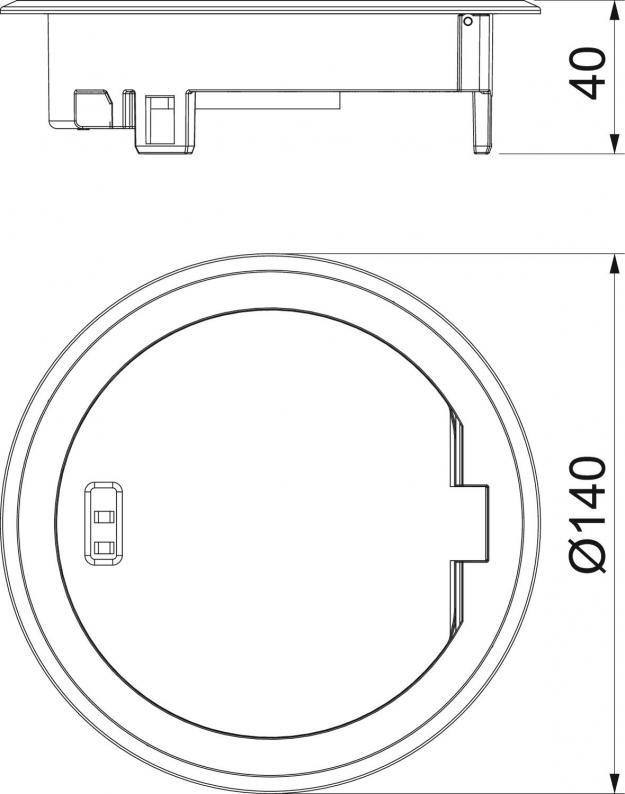

Installation depth85 mm
External diameter140 mm
With floor covering recessno
Floor covering protection frameyes
Cable outlet versionSwivellable cord outlet
Protection rating IK codeIK10
ApprovalsVDE
StandardEN 50085-2-2
Protection rating (IP) when usedIP20
Protection rating (IP) when unusedIP66
Vertical load, small areato 3,000 N
Vertical load, large areato 15,000 N
Version forRound
Opening mechanismLocking slider
SurfaceNickel-plated
MaterialDie-cast zinc

Environmental Data

0,5214 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,5214 kg CO2e / 1 Piece

Accessories

System accessories

Item no. 7428526

Screed box for GES R2
Type
UD GES R2

Smallest selling unit: 1 piece

piece
