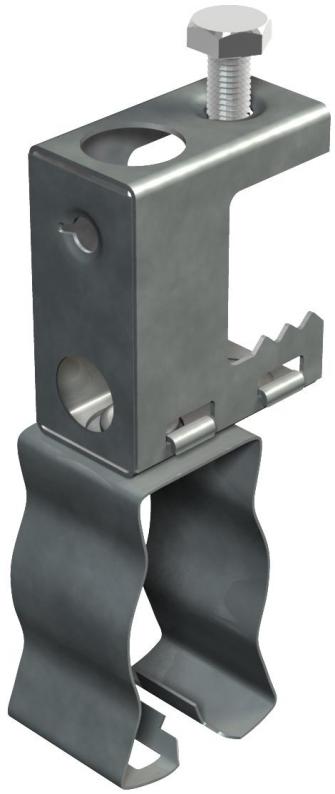

Screw-in beam clamp, for pipes and cables
Type TKS 213-32
|Item no. 1484826
|EAN 4012195146056
Item no. / Type
Breaking load
Pipe/cable diameter, min.
Pipe/cable diameter, max.
Flange thickness F min.
Flange thickness F max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 50 piece
50piece
piece
Description
With rotating clip to accept pipes and cables, lockable.
Technical data
Technical data
| Cable diameter, min. | 26 mm |
|---|---|
| Cable diameter, max. | 32 mm |
| Hinged | no |
| Hinge, adjustable | no |
| Breaking load | 0,45 kN |
| Pipe/cable diameter, min. | 26 mm |
| Pipe/cable diameter, max. | 32 mm |
| Fastening type | Bolts |
| Connection type/component | Pipe/cable |
| Flange thickness F min. | 2 mm |
| Flange thickness F max. | 17 mm |
| Dimension | 2-13mm |
| Surface | Zinc slat |
| Material | Steel |

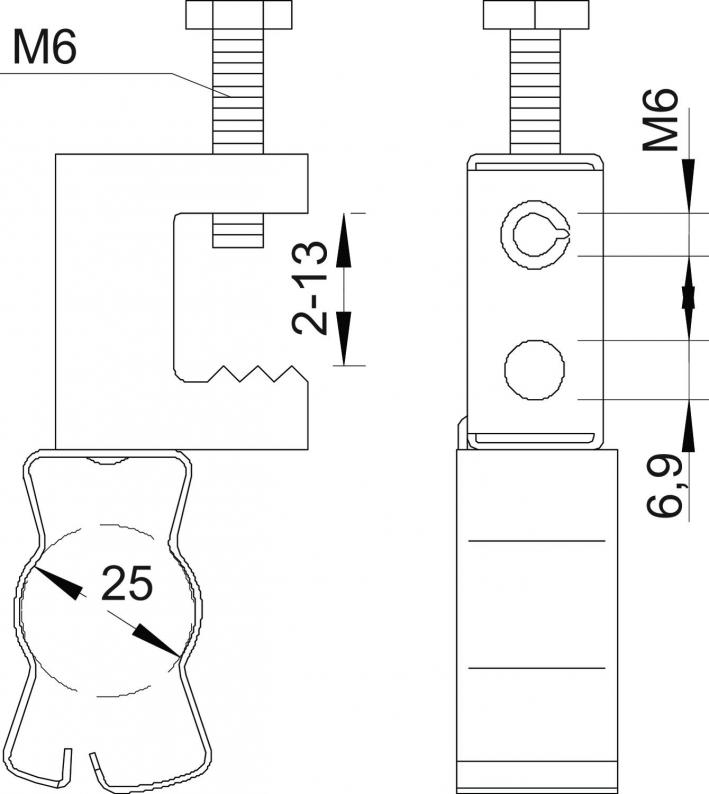

Dimensions
| Dimension d max. | 32 mm |
|---|---|
| Dimension d min. | 26 mm |
| Dimension D | 25 mm |
Downloads
0 selected
Data sheet (1)
Product images (3)
Tender specifications (2)
Variants
Type
Breaking load
Pipe/cable diameter, min.
Pipe/cable diameter, max.
Flange thickness F min.
Flange thickness F max.
Item no.
TKS 213-25
0,45
23
25
2
17
1484818
TKS 213-32
0,45
26
32
2
17
1484826
TKS 213-42
0,45
33
40
2
17
1484838
Pipe/cable diameter, min.
Pipe/cable diameter, max.
TKS 213-25
Item no.
1484818
Breaking load
0,45
Pipe/cable diameter, min.
23
Pipe/cable diameter, max.
25
Flange thickness F min.
2
Flange thickness F max.
17
TKS 213-32
Item no.
1484826
Breaking load
0,45
Pipe/cable diameter, min.
26
Pipe/cable diameter, max.
32
Flange thickness F min.
2
Flange thickness F max.
17
TKS 213-42
Item no.
1484838
Breaking load
0,45
Pipe/cable diameter, min.
33
Pipe/cable diameter, max.
40
Flange thickness F min.
2
Flange thickness F max.
17
