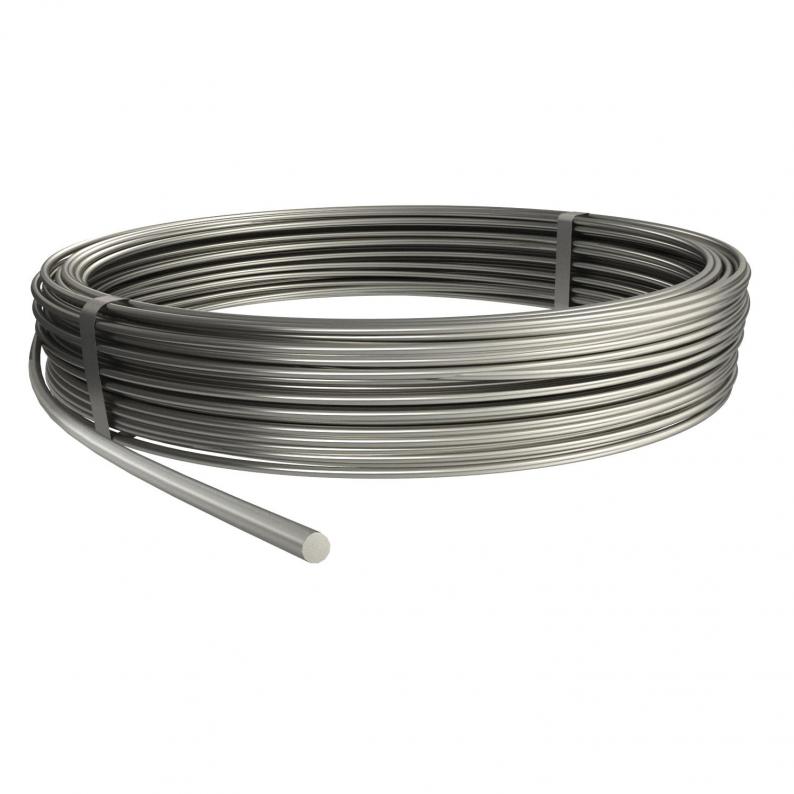

Round cable, stainless steel
Type RD 8-SS316
|Item no. 5021386
|EAN 4012197007911
Item no. / Type
Diameter
Material
Stainless steel
Smallest selling unit: 25 m
25m
m
Description
• To DIN EN 62561-2 (VDE 0185-561-2)
• Conforms to the requirements according to VDE 0185-305 (IEC 62305)
• RD 10-V4A for the use in the soil
According to the foundation earth electrode standard DIN 18014, V4A is required in the earth
• Conforms to the requirements according to VDE 0185-305 (IEC 62305)
• RD 10-V4A for the use in the soil
According to the foundation earth electrode standard DIN 18014, V4A is required in the earth
Technical data
Technical data
| Diameter | 8 mm |
|---|---|
| High voltage-resistant, insulated version | no |
| Number of individual wires | 1 |
| Material jacket | Without |
| Dimension | 8mm |
| Material | Stainless steel |
| Length tolerance ± | 5 % |

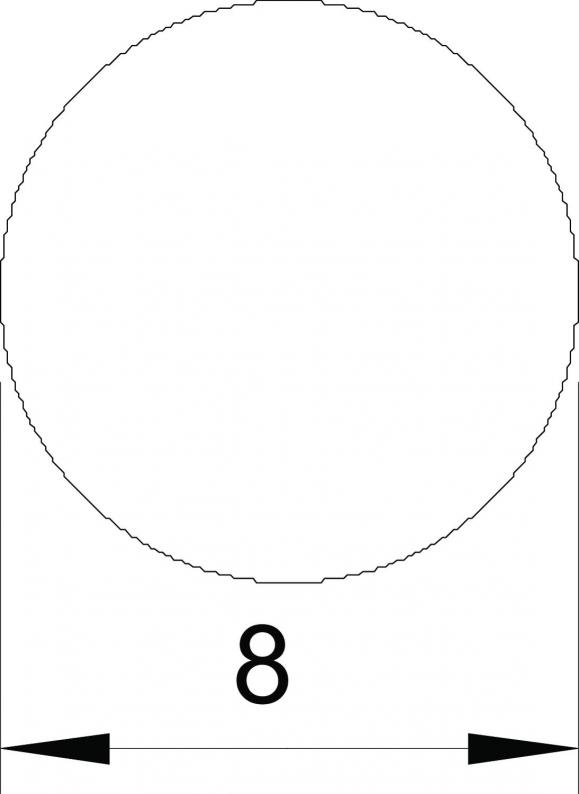

Dimensions
| Dimension D | 8 mm |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Diameter
Material
Item no.
RD 8-SS316
8
Stainless steel
5021386
RD 10-SS316
10
Stainless steel
5021388
Diameter
RD 8-SS316
Item no.
5021386
Diameter
8
Material
Stainless steel
RD 10-SS316
Item no.
5021388
Diameter
10
Material
Stainless steel
