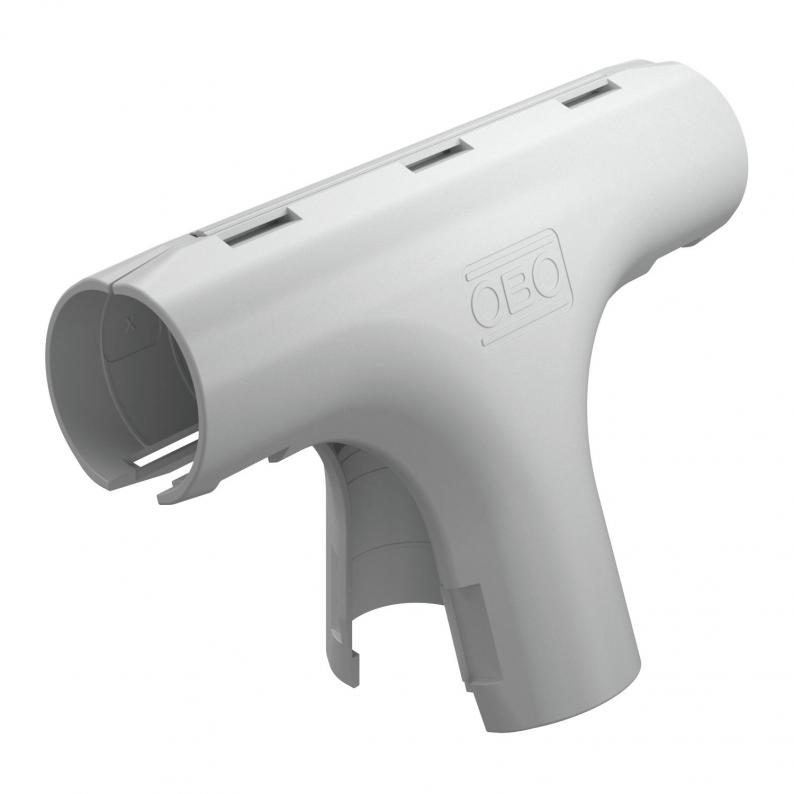

Quick pipe T piece, light grey
Type 3000 TMS M25 LGR
|Item no. 2153843
|EAN 4012196868551
Item no. / Type
Dimension L
Size
Smallest selling unit: 5 piece
5piece
piece
Description
Fitting for plastic electrical installation pipes to create T branches. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
Technical data

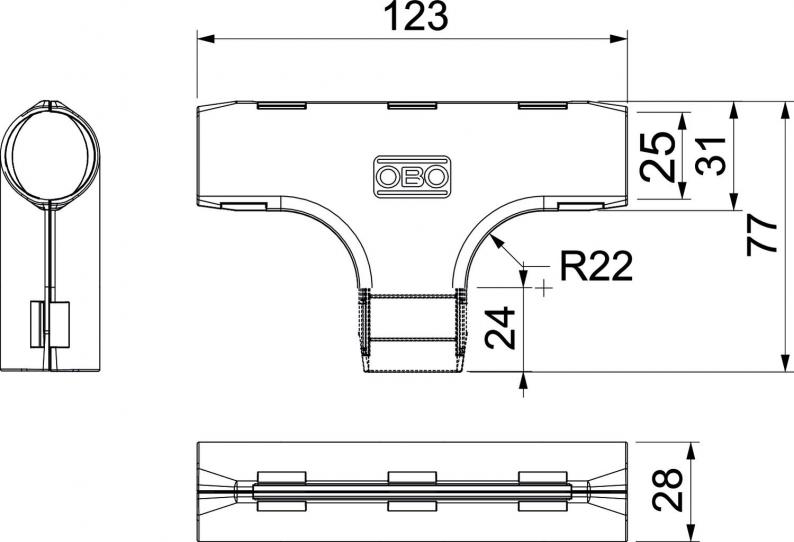

Dimensions
| Dimension L | 77 mm |
|---|---|
| Dimension d | 25 mm |
| Dimension B | 31 mm |
| Dimension R | 22 mm |
| Dimension L1 | 24 mm |
| Dimension B2 | 123 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Size | M25 |
| Polished surface | no |
| With sleeve | no |
| Brushed surface | no |
| Version for | Connector |
| Shape | T piece |
| Permitted temperature range, min. | 0 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | M25 |
| Material | Polypropylene |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1151 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Dimension L
Size
Item no.
3000 TMS M16 LGR
58
M16
2153839
3000 TMS M20 LGR
69
M20
2153841
3000 TMS M25 LGR
77
M25
2153843
3000 TMS M32 LGR
87
M32
2153845
