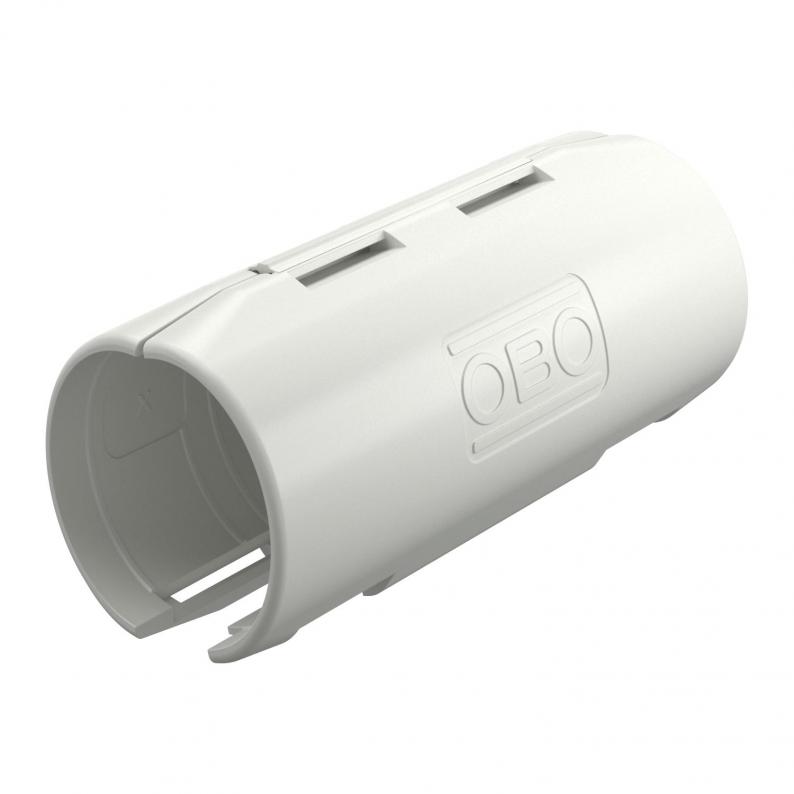

Quick pipe connecting sleeve, pure white

Quick pipe connecting sleeve, pure white

Type 3000 MMS M25 RW
|
Item no. 2154095
|
EAN 4012196870158
Show all variants
Item no. / Type

Smallest selling unit: 10 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Connection sleeve for plastic electrical installation pipes to create straight connections. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 40
  • Thread metric
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

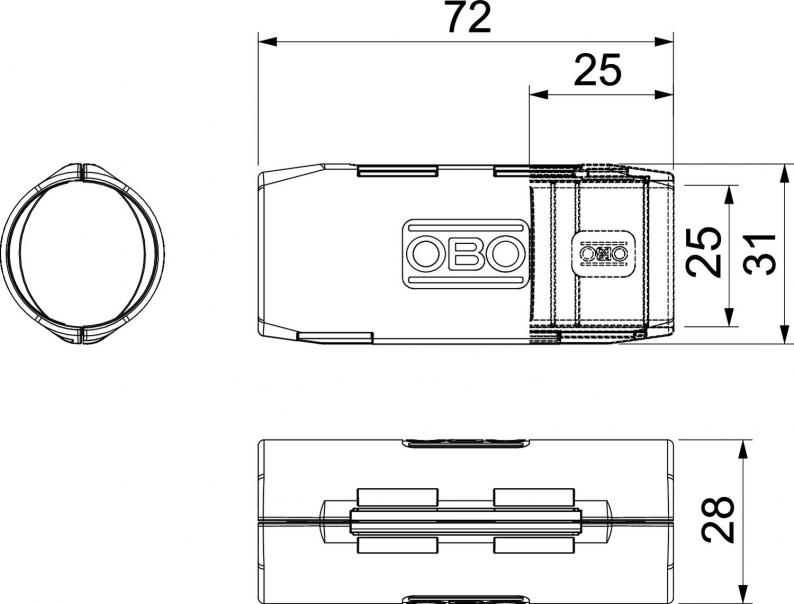

Dimensions

Dimension L72 mm
Dimension d25 mm
Dimension B31 mm
Dimension L125 mm

Technical data

Halogen-freeyes
SizeM25
Polished surfaceno
Permitted temperature range, min.0 °C
Permitted temperature range, max.60 °C
DimensionM25
MaterialPolypropylene
ColourPure white; RAL 9010
CO2 Footprint (GWP) Cradle-to-Gate0,0514 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Product images (2)
Tender specifications (2)

Variants

3000 MMS M16 RW
Item no.
2154091
3000 MMS M20 RW
Item no.
2154093
3000 MMS M25 RW
Item no.
2154095
3000 MMS M32 RW
Item no.
2154097
