Pipe end cap, splittable, PG, light grey
Type 129 TB PG9
|Item no. 2044509
|EAN 4012196594092
Item no. / Type
Size
Smallest selling unit: 50 piece
50piece
piece
Description

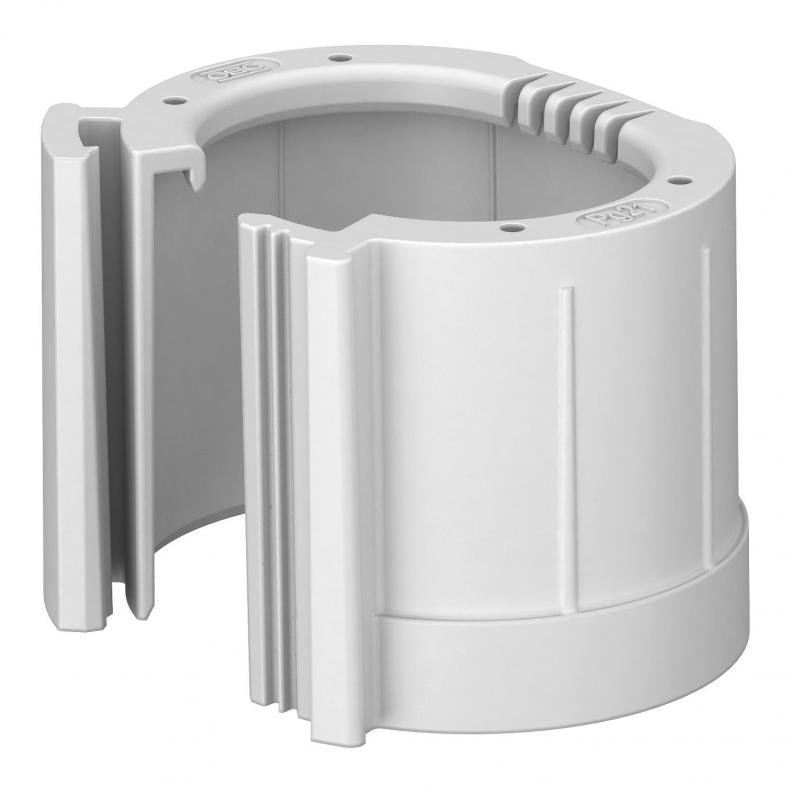

Separable pipe end cap to slot onto PG electrical installation pipes.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.
Technical data

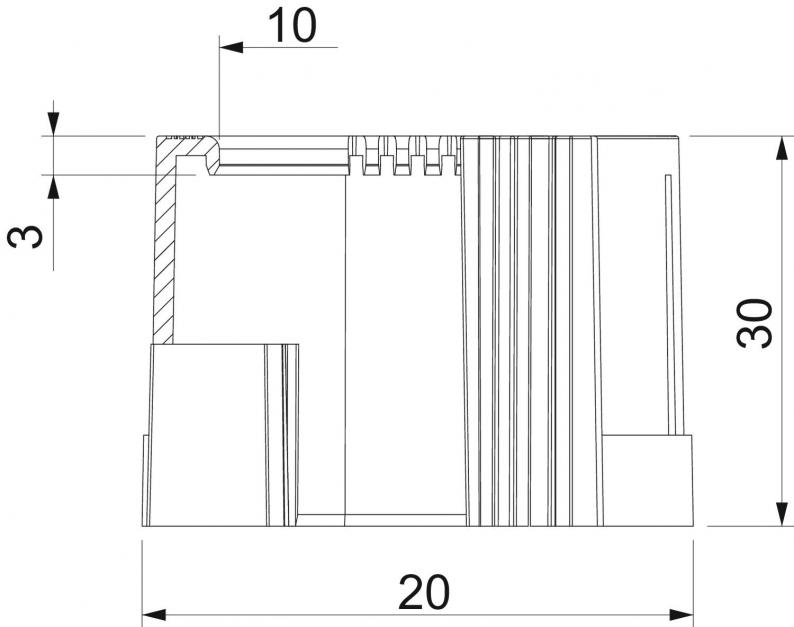

Dimensions
| Dimension D1 | 20 mm |
|---|---|
| Dimension D2 | 10 mm |
| Dimension L1 | 30 mm |
| Dimension L2 | 3 mm |
Technical data
| Size | PG9 |
|---|---|
| Polished surface | no |
| Brushed surface | no |
| for pipe diameter | 15,2 mm |
| Version for | Connector |
| Dimension | PG9 |
| Material | Polyethylene |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0153 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (2)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Size
Item no.
129 TB PG9
PG9
2044509
129 TB PG11
PG11
2044511
129 TB PG13,5
PG13,5
2044513
129 TB PG16
PG16
2044516
129 TB PG21
PG21
2044521
129 TB PG29
PG29
2044529
129 TB PG36
PG36
2044536
129 TB PG42
PG42
2044542
129 TB PG48
PG48
2044548
