Mesh cable tray GR 55 G
Type GR 55 050 G
|Item no. 6004806
|EAN 4012196759439
Item no. / Type
Length
Width
Height
Usable cross-section
Wire diameter
Maintain electrical functions
no
Smallest selling unit: 3 m
3m
m
Description

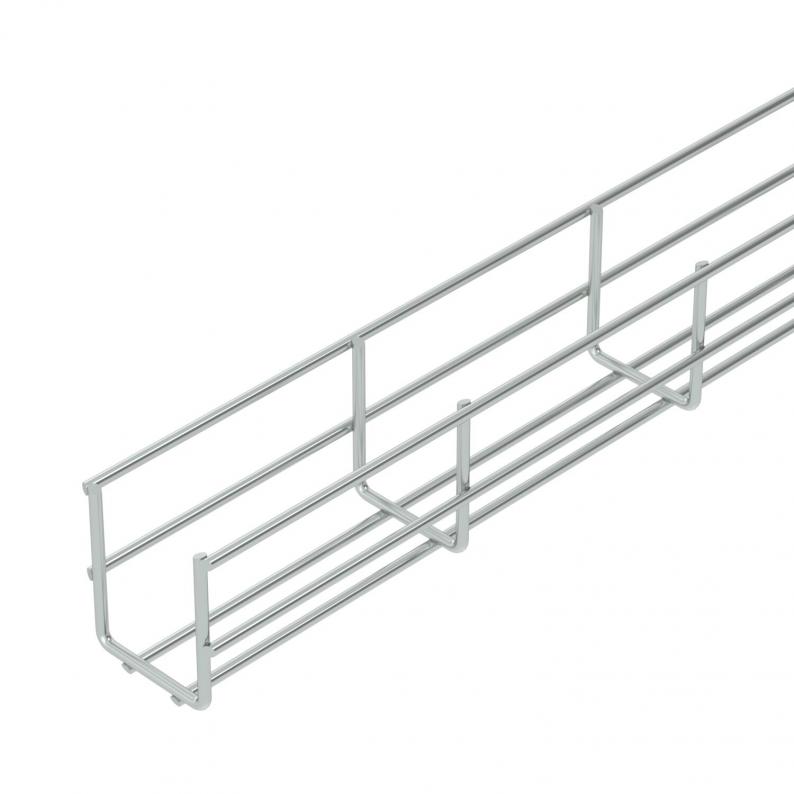

Mesh cable tray made of spot-welded steel wire of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
The grid dimension is 20 x 100 mm in the width 50 mm and 50 x 100 mm in the widths 100-600 mm.
Joint connectors GSV 34 should be ordered separately and in the appropriate quantity.
Technical data

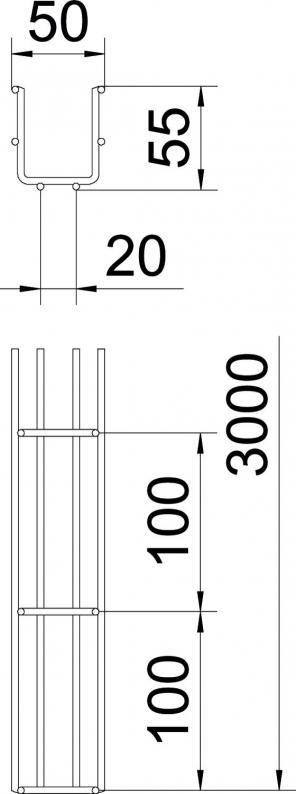

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 50 mm |
| Height | 58 mm |
| Dimension B | 52 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Usable cross-section | 16 cm² |
| Rustproof steel, pickled | no |
| Usable cross-section | 1600 mm² |
| Wire diameter | 3,9 mm |
| Dimension | 55x50x3000 |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,2332 kg CO₂e / 1 Meter |
Loads
| Support spacing 2.0 m | 0,1 kN/m |
|---|---|
| Support spacing 2.5 m | 0,1 kN/m |
| Support spacing 1.0 m | 0,35 kN/m |
| Support spacing 1.5 m | 0,2 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (7)
Declarations (1)
Certificates (1)
Instructions and Aid (3)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Width
Height
Maintain electrical functions
Usable cross-section
Wire diameter
Item no.
GR 55 600 G
3000
600
58
no
265
4,8
6000770
GR 55 050 G
3000
50
58
no
16
3,9
6004806
GR 55 100 G
3000
100
58
no
40
3,9
6004814
GR 55 150 G
3000
150
58
no
63
3,9
6004822
GR 55 200V G
3000
200
58
no
87
4,8
6004830
GR 55 300 G
3000
300
58
no
129
4,8
6004849
GR 55 400 G
3000
400
58
no
175
4,8
6004857
GR 55 500 G
3000
500
58
no
220
4,8
6004865
